Precision Spray Valve for Low Viscosity Adhesive and Fluid Dispensing

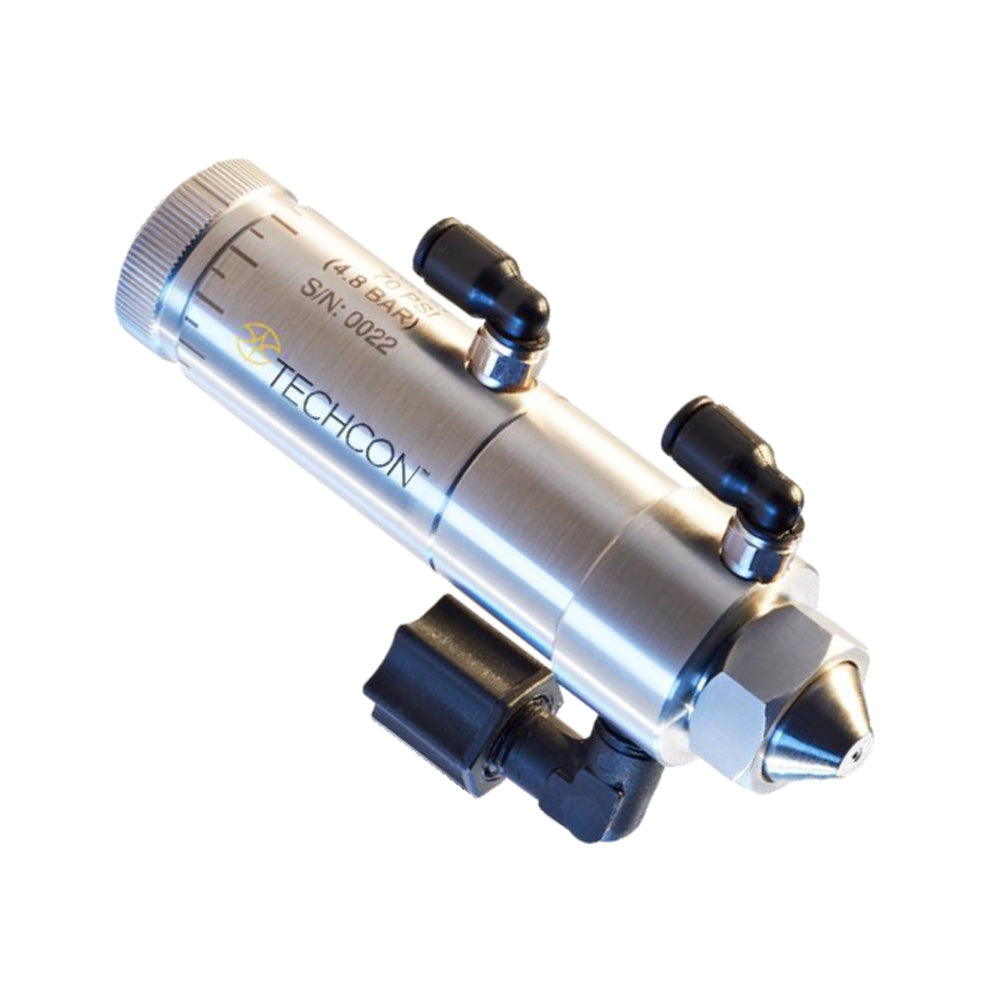

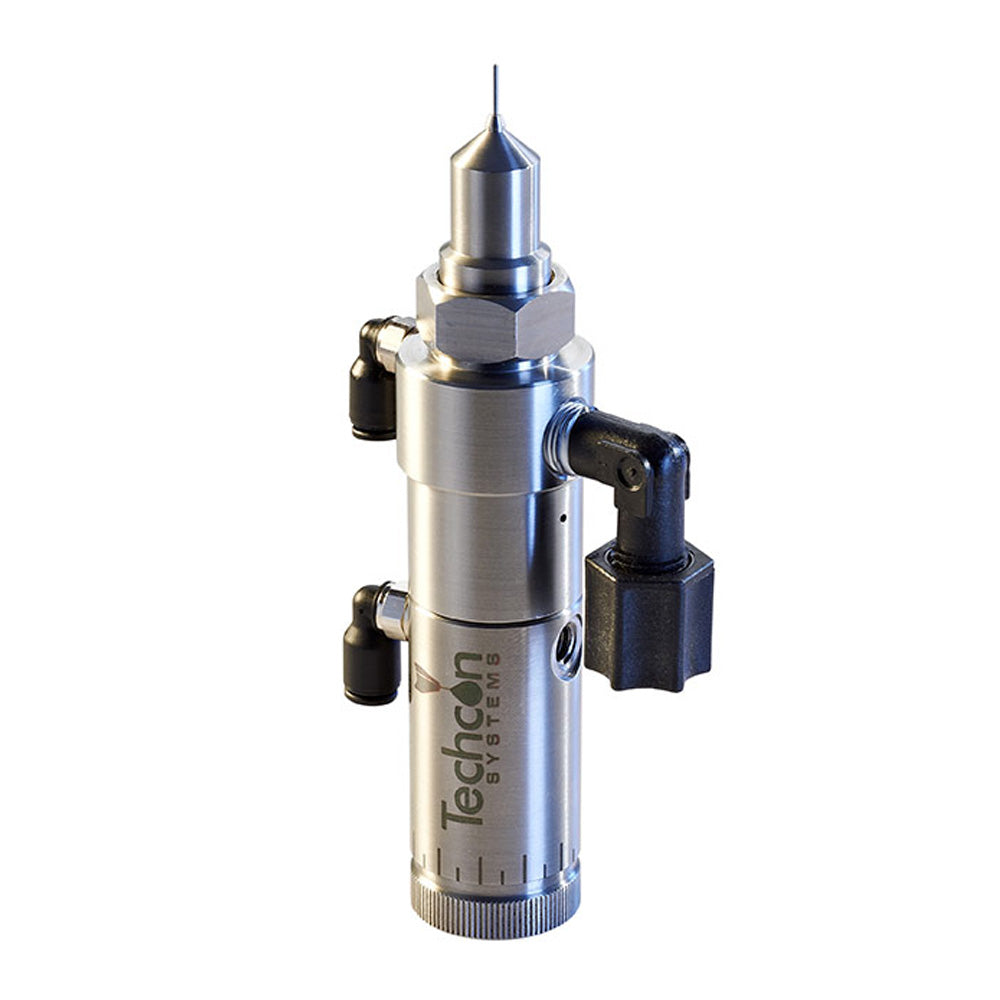

About the Techcon TS5540 Precision Spray Valve for Low Viscosity Adhesive and Fluid Dispensing
The Techcon TS5540 precision spray valve comes can be used to dispense oval or circular patterns in a range of diameter sizes. This spray valve is designed to eliminate overspray while maintaining a uniform spray pattern. It offers a long life cycle and precise shot control when used in conjunction with the TS500R digital controller.
View Complete Configurable Syringe Dispensing Systems
The Techcon TS5540 Precision Spray Valve Is Used to Dispense
| Activators | Alcohol | Flux Liquids | Regents |
| Solvents | Low Viscosity Materials | - | - |
Details

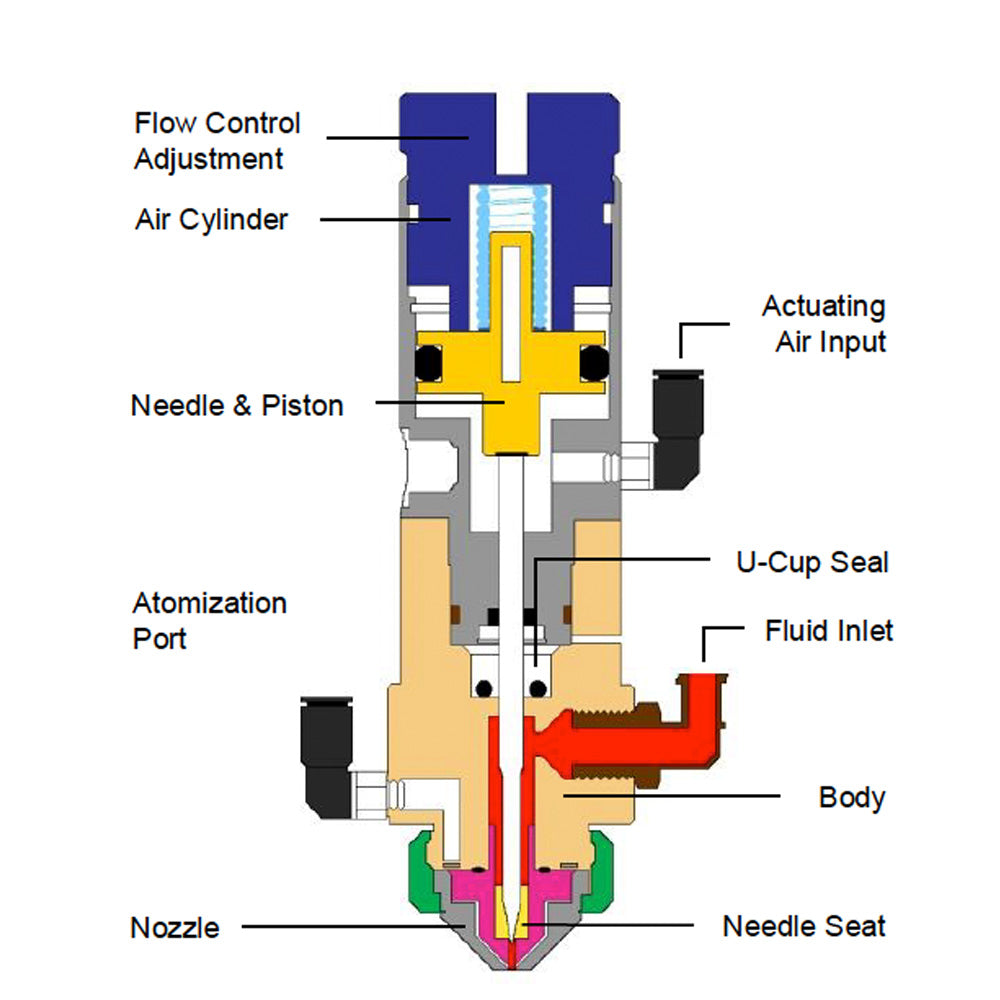

The Techcon TS5540 spray valve has an external stroke control making it easy to fine tune the flow of material being dispensed. This valve is made with FDA complaint 303 stainless steel in both the air cylinder and fluid housing. An easily replaceable shot off made of Derlrin® allows for positive shut-off and long life cycles. The compact design makes this valve a favorite for integration into automated applications and processes.
Nozzles types include an elliptical (F) pattern and a round (R) pattern which are both available in .014", .028" and .046" diameters.
Common Applications
- Spraying conformal coating onto PCBA's
- Spraying oil for lubrication applications
- Spraying ink to indicate Pass or Fail
Techcon TS5540 Spray Valve Features
- Consistent spray coverage
- No overspray
- Positive shut-off
- Adjustable flow control
The Techcon TS5540 Spray Valve Includes
- Mounting bracket kit
- Valve air hoses
- Luer lock fluid line
- Fluid inlet fittings - 1/4'' compression and Luer lock type
Specifications
| Fluid Inlet Port | 1/8'' NPT female |
| Fluid Outlet Port: | Spray Cap round 0.014" orifice |
| Aux Air Inlet Port: | 10-32 UNF |
| Activation Pressure: | 70 psi (4.8bar) Min |
| Max Fluid Pressure: | 100 psi (6.9bar) |
| Mounting Port: | ¼-20 UNC-2B |
| Viscosity Range: | 1-5 000cps |
| Wetted Parts: | 303 SS, Teflon®,Delrin® |
| Operating Frequency: | 400+ cycles/min |
Accessories
Works With
- Techcon TS1254 or TS1258 Pressure Tanks
- TS500R Digital Controller
- Standard Syringe Barrels or Cartridges
