Infinity Bond Benchtop Pro Meter Mix System

When to Use the Infinity Bond Benchtop Pro Meter Mix Dispensing System

The Infinity Bond Pro is the best choice for most potting, filter, and casting applications. The exceptions are when the parts are large and the required flow rate exceeds 3lb/minute (low viscosity). The Benchtop Pro is a straight-forward winner in the overly complex world of industrial meter mix equipment.

For higher flow rates see the Super Flow high flow meter mix system.

Details

The Infinity Bond Benchtop Pro Meter Mix System is the smallest of our industrial line of meter / mix equipment.It is a very versatile machine appropriate for electronics potting, filter end capping, urethane casting, filament winder bath supply, and many other small/med sized applications.

When to Choose the Infinity Bond Benchtop Pro Meter Mix System

The Infinity Bond Benchtop Pro Meter Mix System is the best choice for most potting, filter, and casting applications. The exceptions are when the parts are large and the required flow rate exceeds 3lb/minute (low viscosity). The Super E is a straight forward winner in the overly complex world of industrial meter mix equipment.

Additional Information

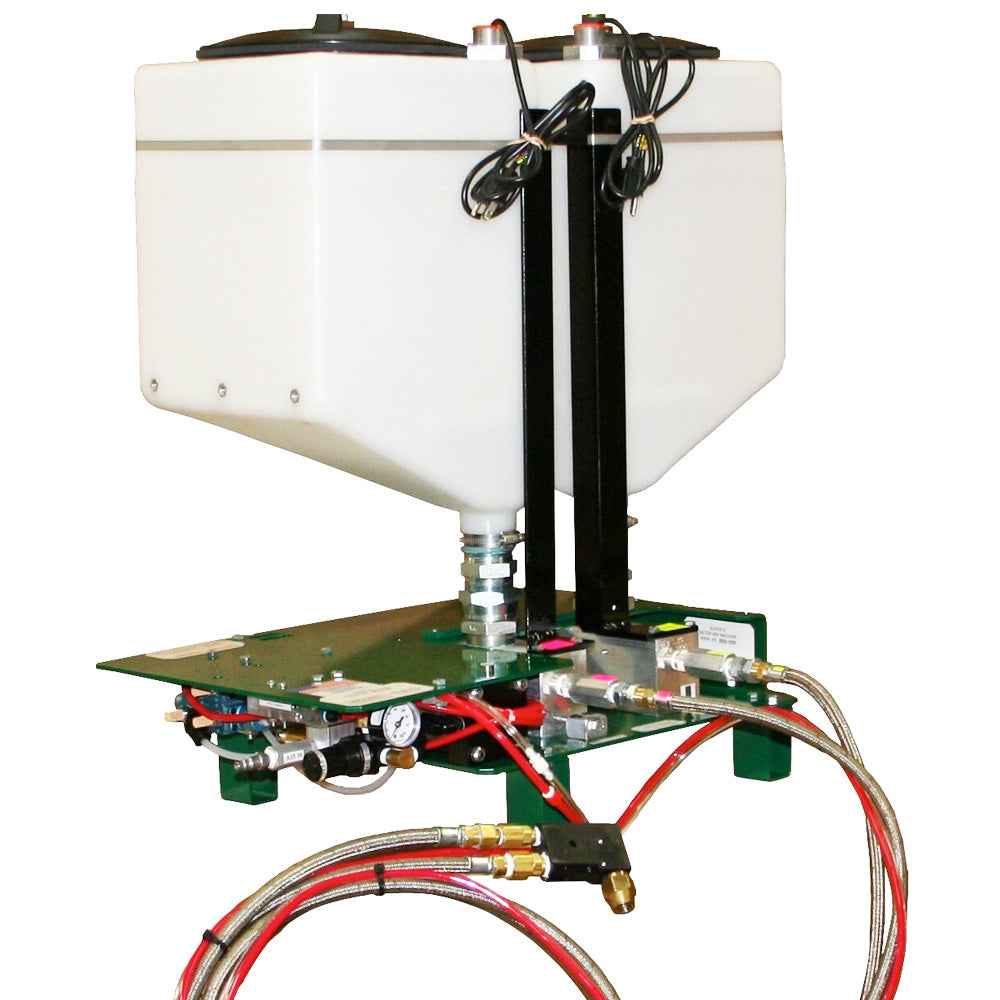

Water thin to very viscous materials are metered and dispensed accurately. The Infinity Bond Benchtop Pro Meter Mix System is a compact pneumatically operated bench top meter mix dispense system capable of delivering 3 lbs. of mixed resin per minute (low viscosity). The SUPER E uses Michael Engineering’s proven durable, accurate, abrasive resistant, piston pumps with hardened parts and wear take up seals for long life. It can pump any self-leveling material.

The Infinity Bond Benchtop Pro Meter Mix System comes standard with nine-foot hoses and a mixer gun that uses disposable static mixers. We also include a variety of spare parts, an additional instruction manual and easy access to technical help.

Each Infinity Bond Benchtop Pro Meter Mix System comes preset within one of four ratio ranges and is fully adjustable within that range. Ratios from 6:100 to 1:1 are available. As with all of our machines with single acting pumps the Super E is available in two configurations

Infinity Bond Benchtop Pro Meter Mix System Vertical Configuration Details

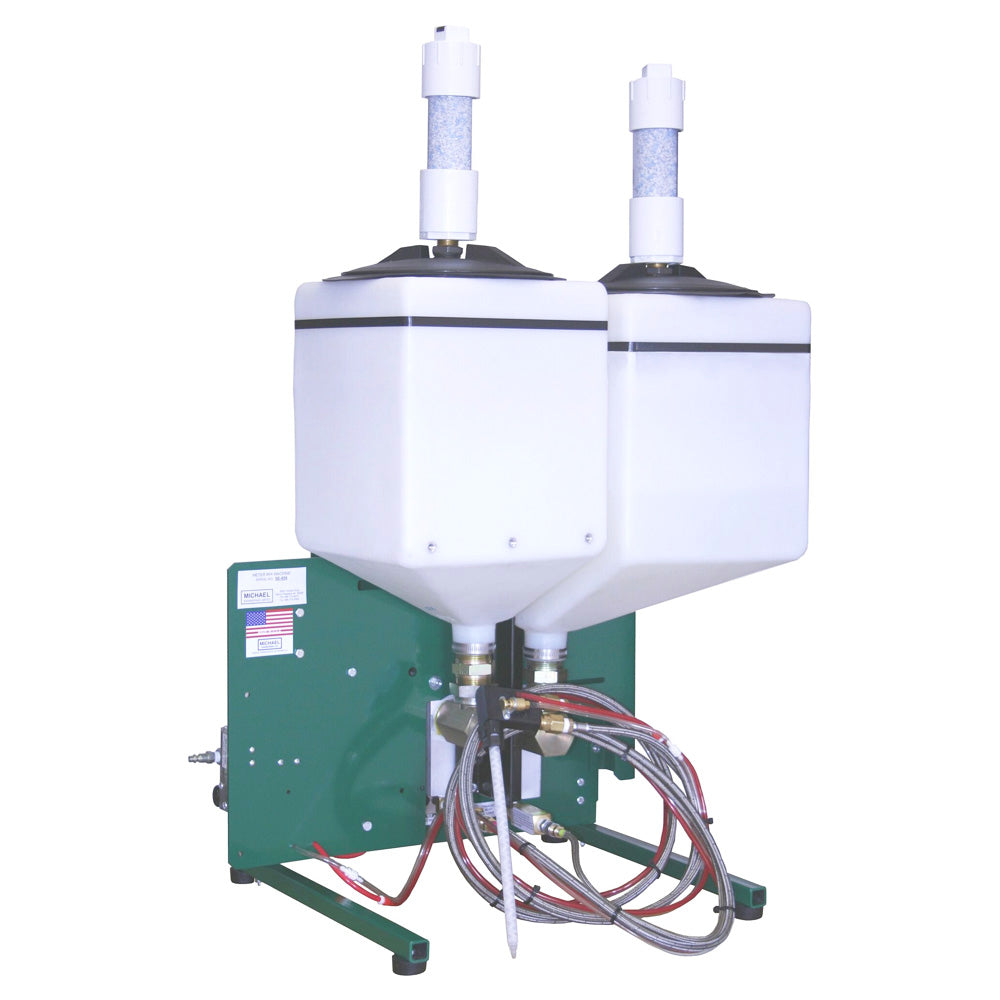

The vertical machine for moisture sensitive urethane materials. The vertical configuration includes wet cups around the piston rods to keep material from sticking to the piston rods and damaging the seals, and desiccant filters to remove any moisture from the air that is vented into the reservoirs.

Infinity Bond Benchtop Pro Meter Mix System Horizontal Configuration Details

The Horizontal machine for epoxy, silicone, methacrylate materials that are not moisture sensitive.

About the Accessories and Configurations

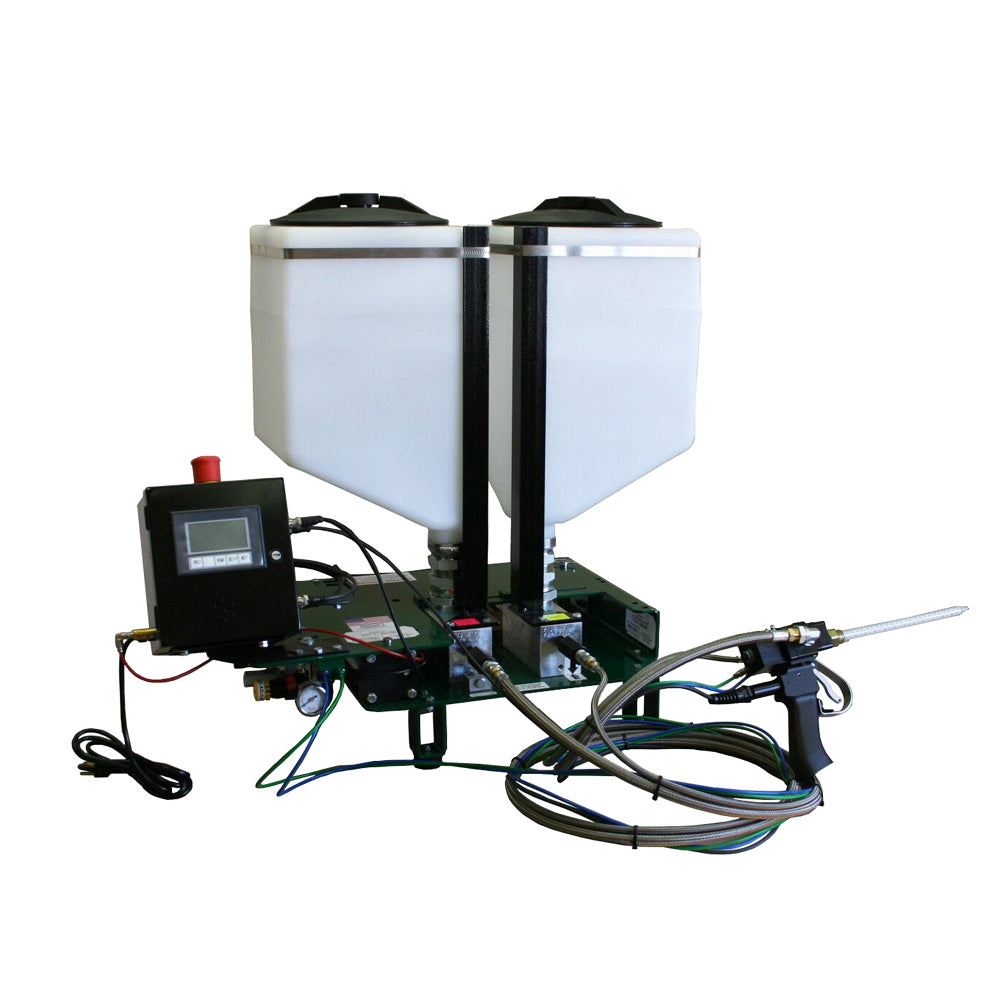

There is a long list of options for the Infinity Bond Benchtop Pro Meter Mix System including: Snuff Back Gun, Stops the flow of material instantly allowing the operator to quickly and cleanly move to the next part. Electronic Shot Size control, Encoder based shot size control with memory locations, Auto Repeat and Purge Timer functions. Heaters for the reservoirs, pumps, and hoses. Agitators, both pneumatic and electric. Carts, drum racks, tote stands, vacuum degassing tanks, and supply pumps. Level sensors and controls to keep track of and manage the material supply.

Specifications

Horizontal Machine Specification (for Non-Moisture Sensitive Materials like Epoxies, Silicones, Methacrylates, etc)

• Output adjustable from a 5 cc shot to 3 pounds per minute
• Available 2.5 or 7 gallon standard reservoirs, vacuum degassing reservoirs, or 55 gallon drums.
• Custom builds available to meet even more specific application needs
• Easy slide ratio adjustment, ratios from 1:1 to 16:1 are available
• E-Stop machine can produce a 1/2cc shot

Vertical Machine Specifications (for Moisture Sensitive Materials Like Urethanes)

• Solvent Cup protects the pump pistons and seals from damage by extremely moisture sensitive materials
• Versatile Ratio Adjustment System allows for simple accurate ratio adjustment
• Available with Electronic Shot Size Controller and many other options
• Conical reservoirs allow more efficient use of your material

Dimensions

• Height: 29 Inches (44 Inches with Desiccant Tank)
• Length: 24 Inches
• Depth: 20 Inches
• Reservoir Sizes
  • 2.5 X 2.5 Gallons
  • 7 X 7 Gallons

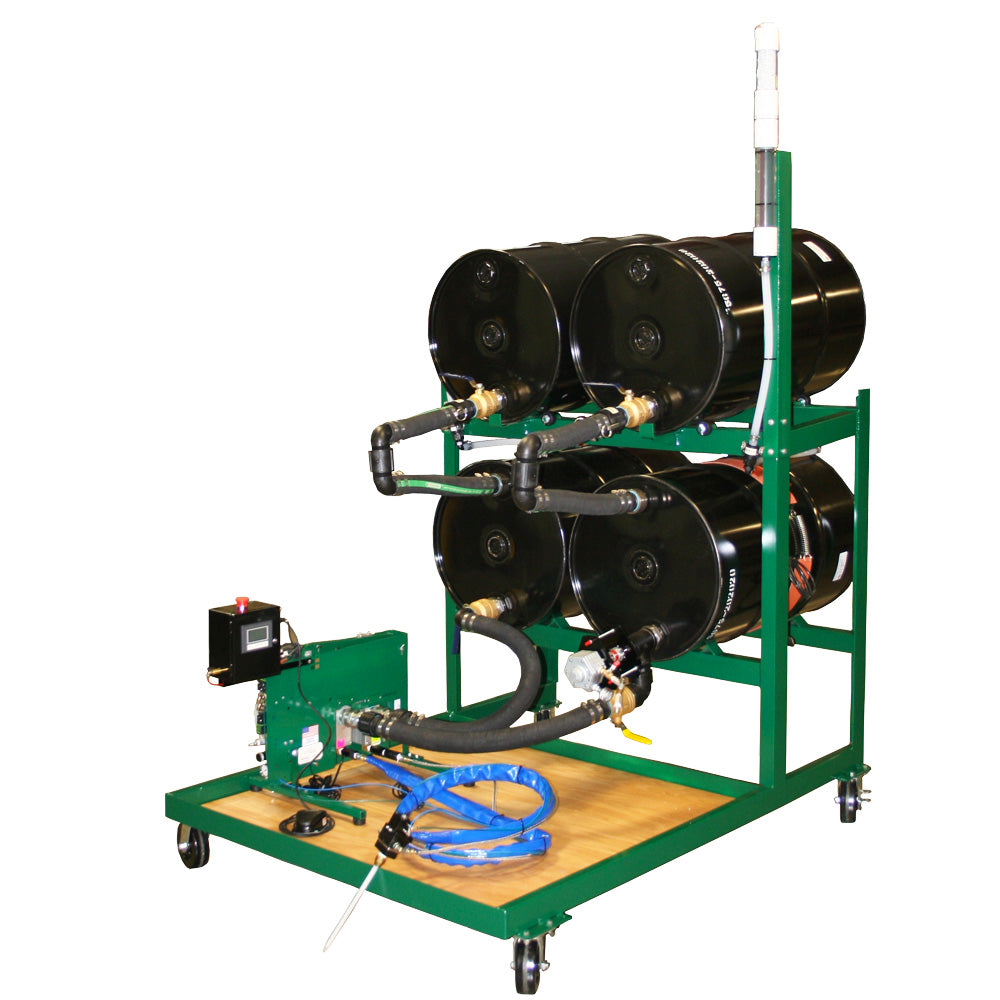

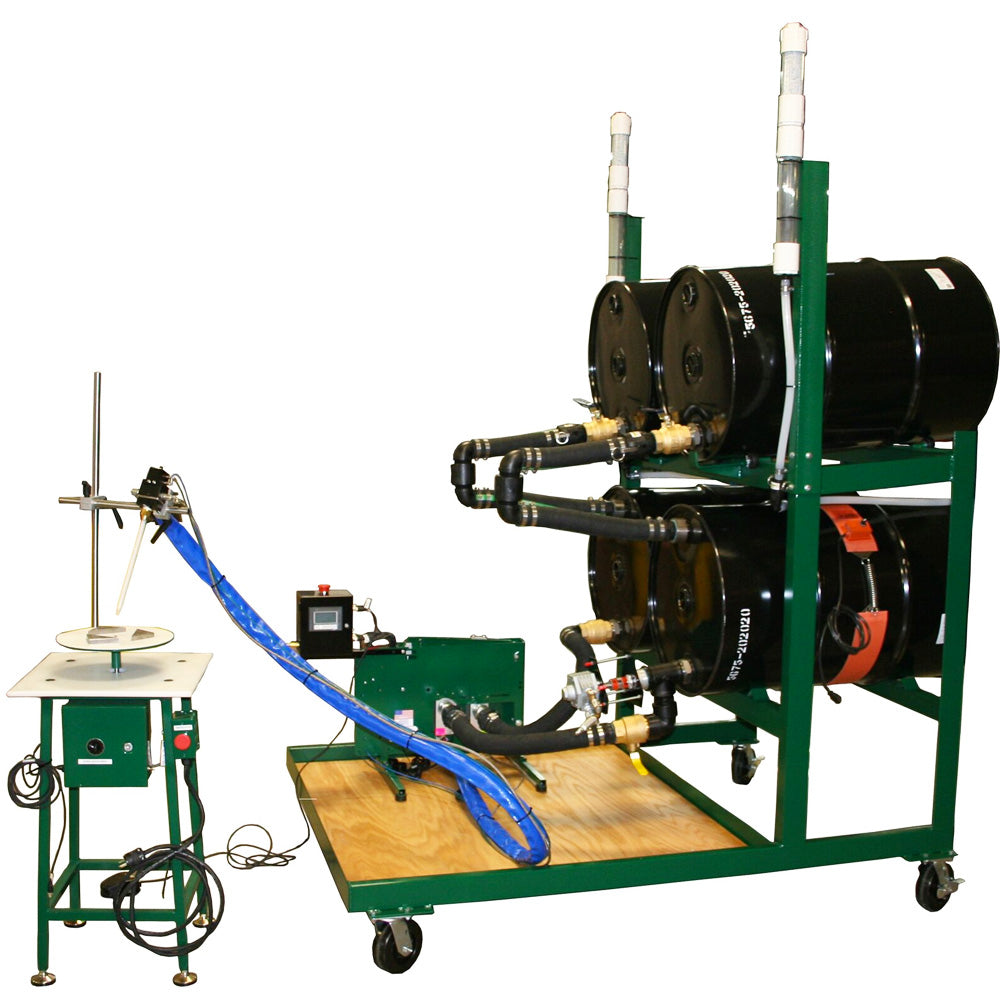

  • 55 Gallon Drums (not included, connect to your own materials)

Available Options

There are a number of options available to meet the needs of a wide range of dispensing applications. Add-on options include:

• Vacuum Degassing System
• Desiccant Tubes
• Material Agitator
• Heater Elements
• Nitrogen Blanket System
• Manifolds for Static Mixers
• Carts and Racks
• Snuffback Dispensing Guns
• Laminating Rollers
• Spraying Systems/Guns
• Rotary Tables
