Infinity Bond Benchtop Basic Meter Mix System

SKU: INFINITY MM-BENCHTOP-BASIC-VERTICAL


We're local! Get onsite help with planning, installation or training for your new dispensing system. Learn more

When to use the Infinity Bond Benchtop Basic Meter Mix System

The Infinity Bond Benchtop Bastic Meter Mix System is a small light duty meter mix and dispensing system. It is at its best when running short run production/lab batch parts larger than 5cc but not so large that the manual controls make the operation tedious. The low cost and small foot print of the Pump-kin make it the best fit for many light industrial applications.

Details

The Infinity Bond Benchtop Basic Meter Mix System is the smallest of our air powered machines. Intended for lab or short run production work It will pump most self-leveling resins. The output is 14cc per stroke, approximately one pound per minute. One full or partial stroke with each press of the foot pedal.

Ratios from 7/100 to 1/1 are available. The output speed is adjustable with the supplied air pressure regulator. As with all of our machines with single acting pumps the Benchtop Meter Mix System is available in two configurations:

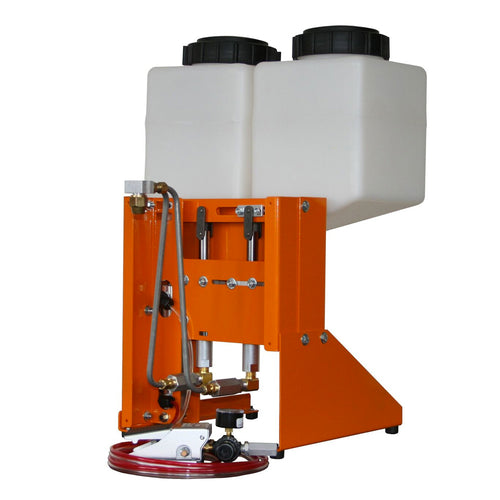

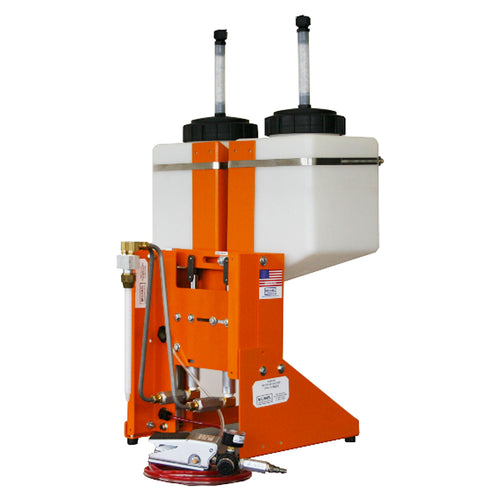

Vertical Configuration for Moisture Sensitive Materials

The vertical machine for moisture sensitive urethane materials. The vertical configuration includes wet cups around the piston rods to keep material from sticking to the piston rods and damaging the seals, and desiccant filters to remove any moisture from the air that is vented into the reservoirs.

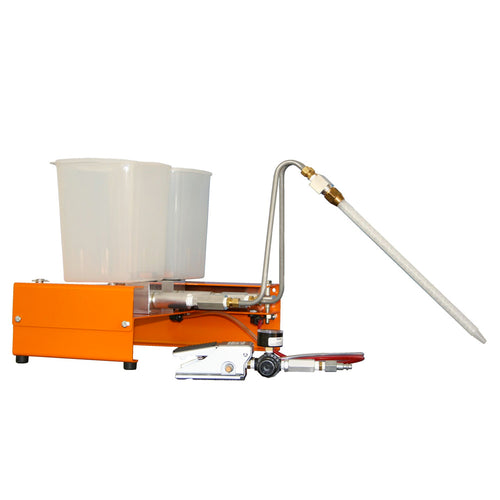

Horizontal Configuration for Non-Moisture Sensitive Materials

The Horizontal machine for epoxy, silicone, methacrylate materials that are not moisture sensitive. In addition to the base models there are several options available: 6’ hoses, mechanical stroke length limit, vacuum degassing tanks, reservoir and pump heaters.

When to Choose the Infinity Bond Benchtop Basic Meter Mix System

The Benchtop Basic Meter Mix System is a small light duty machine. It is at its best when running short run production/lab batch parts larger than 5cc but not so large that the manual controls make the operation tedious. The low cost and small foot print of the Benchtop system make it the best fit for many light industrial applications.

Specifications

  • Faster and more precise than calculating, weighing, and mixing by hand.
  • Cleaner, with less resin ending up on hands, clothes, tools and work surfaces.
  • Safer, reduces skin contact with materials.
  • Reduces waste, pump only what you need. Adjustable ratios, can be used with different materials.
  • Even partial strokes have the right ratio
  • 2-gallon reservoir standard
  • Output up to 1 quart per-minute

Dimensions

  • Height: 15 Inches
  • Length: 15 Inches
  • Depth: 13 Inches
  • Reservoir Size: 2 Gallon X 2 Gallon

Available Options

There are a number of options available to meet the needs of a wide range of dispensing applications. Add-on options include:

  • Vacuum Degassing System
  • Desiccant Tubes
  • Material Agitator
  • Heater Elements
  • Nitrogen Blanket System
  • Manifolds for Static Mixers

Official Supplier

Dispensing.com is an official supplier of Infinity Bond dispensing equipment.
