Low Cost Meter Mix Dispensing System - Electrically Driven

Easy to Use Electric Two Part Dispensing System with Shot Size Controller

This electric option with shot size controller allows the operator to select a shot size which is then displayed on a LED readout. The electric power also allows for hands-free dispensing. Operate the electric dispensing system with a footswitch, toggle, or thumb button.

Our Easy to Use, Low-Cost Manual Two Part Dispensing System with Gear Pump is a practical production tool that utilizes a gear pump to meter non-abrasive two-part resins ranging from 250 to 50,000 centipoise (cps). This low maintenance system eliminates sticky, messy, and wasteful hand proportioning. The Manual Two Part Dispensing System is a highly dependable, industrial-quality system that provides accurate measurement of hardeners and resins with a minimum of oversight.

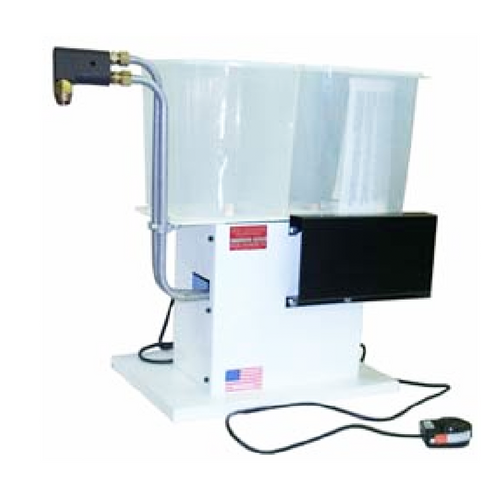

*Pictured with optional electric shot timer.

Available Dispensing Ratios

The Manual Two Part Dispensing System is available in 1:1, 2:1, 3:1, 4:1, 5:1, and 6:1 dispensing ratios.

Available Reservior Sizes

• 1 Gallon
• 2 Gallon
• 5 Gallon

Features of the Manual Two-Part Dispensing System

• Uses gear pumps and chain drive to accurately meter two-part materials
• The output is up to 1.5 quarts per minute, less with more viscous materials
• The ratio range is 1:1 to 6:1. A fixed ratio is easily adjusted by changing drive sprockets.
• One, two, or five-gallon reservoirs are available along with drum feed.
• For non-abrasive materials with viscosities from 300 to 50,000 cps

Available Variations

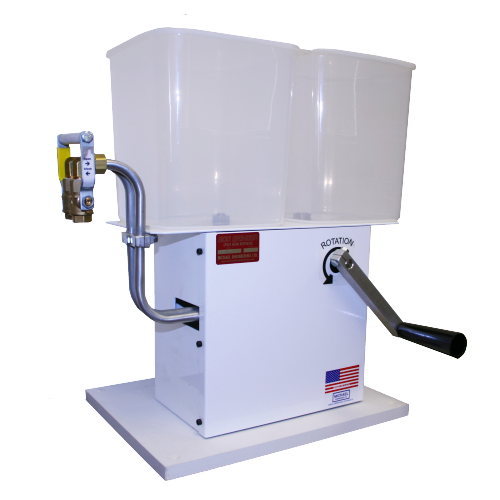

• Low Cost Meter Mix Dispensing System - Hand Crank Driven

• Low Cost Meter Mix Dispensing System - Pneumatic Air Driven
• Low Cost Meter Mix Dispensing System - Electrically Driven

Additional Information

Ratios from 1:1 to 6:1 are available. Changing ratios is as easy as changing sprockets. Material is stored in two reservoirs which are mounted on top of the gear pump housing. The output is up to one quart per minute depending on material viscosity and ratio.

 Our AC power option provides a fixed speed that can be altered by changing the sprocket and chain assembly. Our Air and DC powered machines are variable speed.
