- Epoxy
- Adhesive Technology Crackbond 2300 Gel
- ATC Ultrabond 1300 or 1
- Dayton J 51
- FTC EAS-06
- Hilti HS 200
- Kaufman SurePoxy 116
- Kaufman SurePoxy 117
- Sika Sikadur 32
- Simpson Strong-Tie ET-3G
- SpecChem SpecPoxy 3000
- SpecChem SpecPoxy 3000 FS
- Transline B22 Road Marker Adhesive
- Contact us to see if your material is compatible

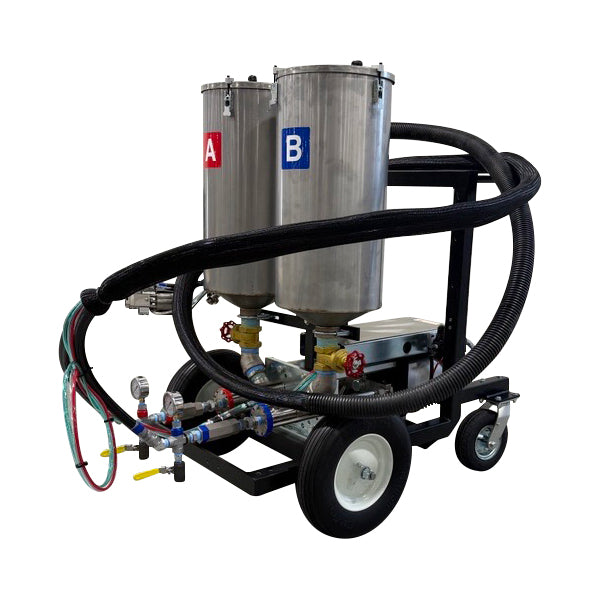

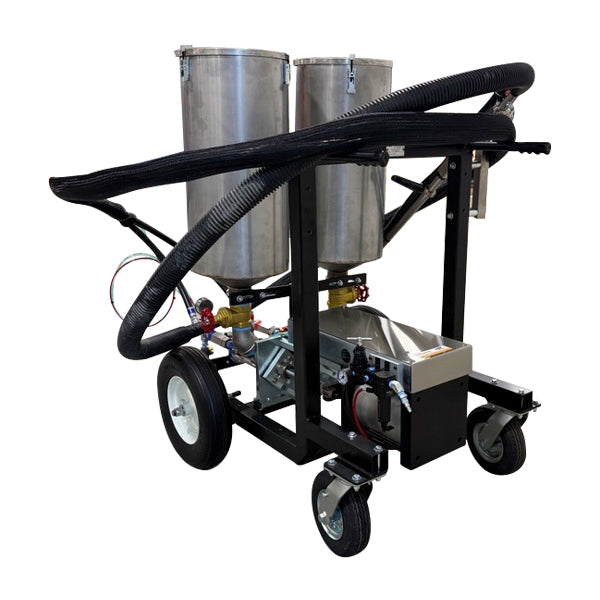

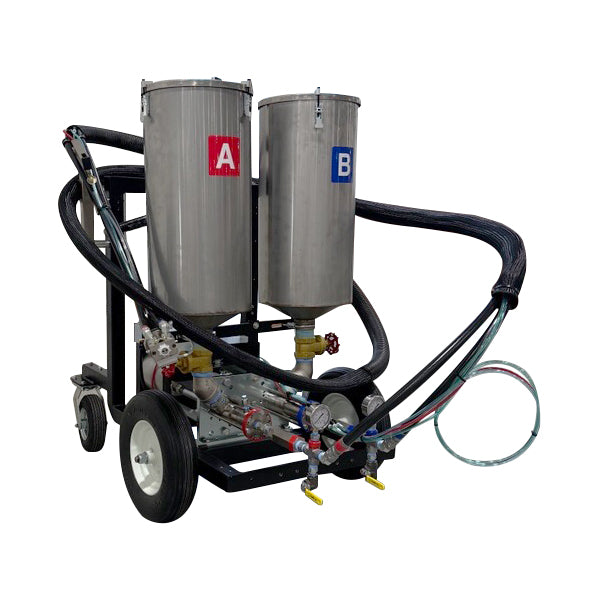

High-Volume Epoxy Dispensing System for Placing Dowel Bars and Traffic Markers (AST RMP 824-C)
Common Applications
- Doweling
- Joint Filling
- Traffic Delineators
High-Volume Two-Component Epoxy Dispensing for Demanding Construction Applications
The AST RMP 824-C is a high-volume, two-component epoxy metering and dispensing system designed for demanding construction applications. Built for the same materials and applications as the AST RMP 624-C, it features larger 12-gallon material tanks, an 8-inch air cylinder and output up to 1 gallon per minute for faster dispensing on high-volume jobs. AST positive-displacement RMP pumps provide accurate, repeatable metering with standard fixed ratios from 1:1 to 4:1, making the system well suited for applications such as dowel bar placement and traffic marker installation while handling high-viscosity epoxy materials.
Features & Benefits of the AST RMP 824-C
- High-Volume Output: Dispenses up to 1 gallon per minute for faster material application on high-volume jobs.
- 12-Gallon Material Tanks: Larger tank capacity allows for longer dispensing runs with fewer material refills.

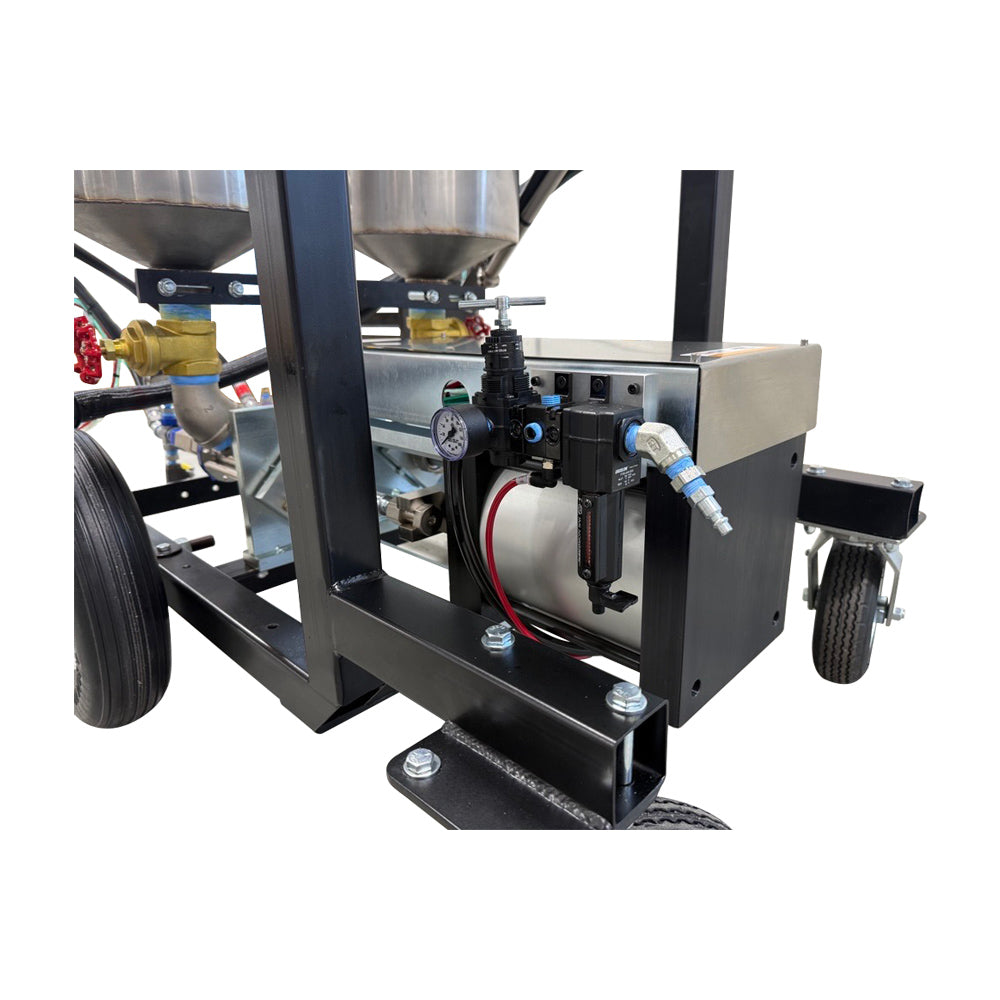

- 8-Inch Air Cylinder: Larger pneumatic drive provides the force needed for higher-volume dispensing.

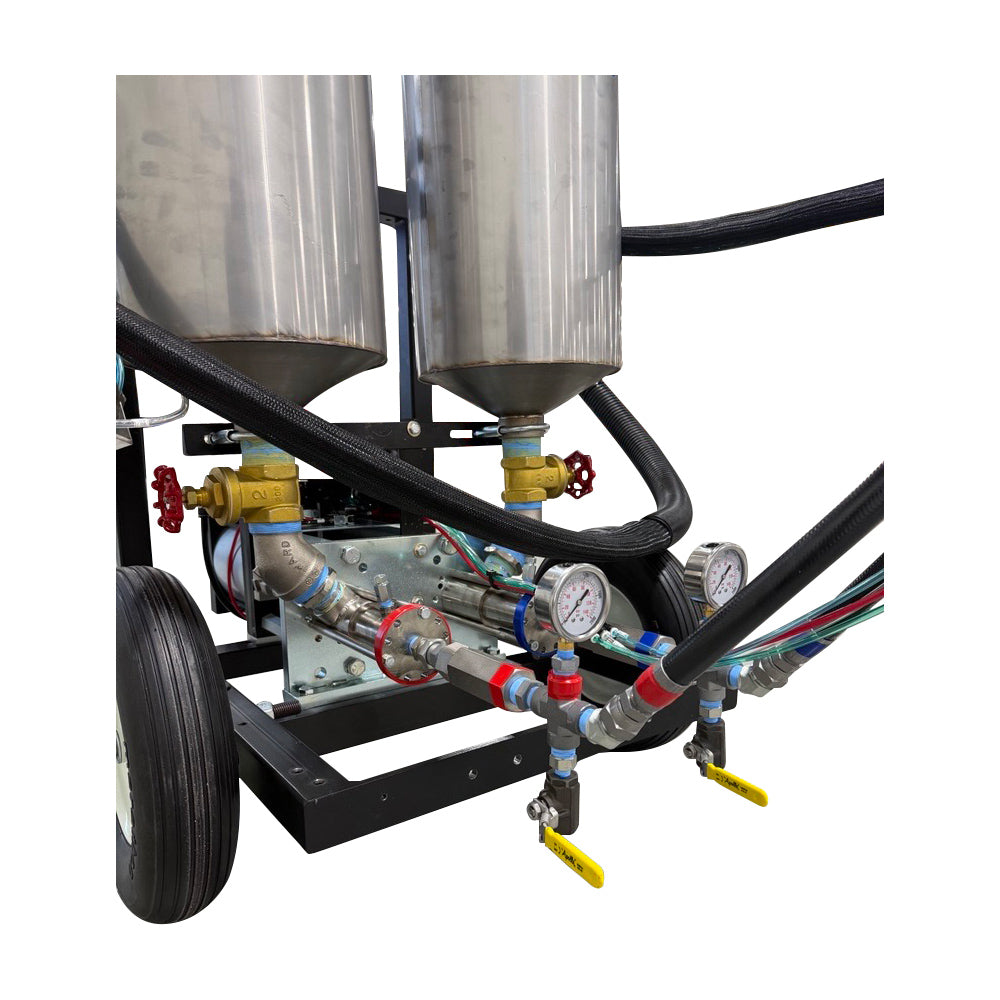

- Accurate, Repeatable Metering: Positive-displacement RMP rod pumps maintain consistent material ratios and shot-to-shot accuracy.
- Multiple Mix Ratios: Supports standard fixed ratios from 1:1 to 4:1, with other ratios available.
- High-Viscosity Material Handling: Handles epoxies and other materials with viscosities up to 500,000 cps.
- Adjustable Dispensing: Metered shot size can be adjusted from 0–100% of the full stroke for different application requirements.
- AASHTO M237 (Type IV): Meets requirements for applicable two-component epoxy dispensing applications.
Specifications
- Model: AST RMP 824-C
- Machine Type: Fixed-ratio metering and dispensing system with positive-displacement rod metering pumps
- Continuous Output: Up to 1.0 gpm, depending on material viscosity and temperature
- Container Capacity: 12 gallons per side
- Drive System: AST 8 in diameter air cylinder
- Viscosity Range: Up to 500,000 cps
- Accuracy: Within 2%, shot to shot
- Ratio Range: Standard fixed ratios from 1:1 to 4:1; other ratios available
- Shot Size Adjustment: 0–100% of full stroke
- Mixer: Disposable plastic static mixer
- Controls: On/off and pressure regulation
- Services Required: Clean, dry compressed air at 90 psi
- Applicators: AST handheld or extension; manual (automatic optional)
- AASHTO Standard: Meets AASHTO M237 (Type IV) requirements
Available Options
- Heated Tanks: Available for applications requiring material temperature control.
- Hose Size & Length: Hose configurations can be selected to meet specific dispensing requirements.
- 9-Inch Stroke: Available for applications requiring an extended pump stroke.
- Air Compressor: An air compressor can be supplied as part of the system configuration.
▸ View Compatible Materials
RMP 824-C Maintenance Video Resources
Questions about AST RMP 824-C? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.
