Two Part Epoxy and Urethane Dispensing System for Bridge Deck Overlays (AST GMP 500)

SKU: AST GMP-500-C


Made in the USA

Used to Dispense

  • Unfilled Epoxies
  • Unfilled Urethanes
  • Polyureas
  • Polyurethanes

Common Applications

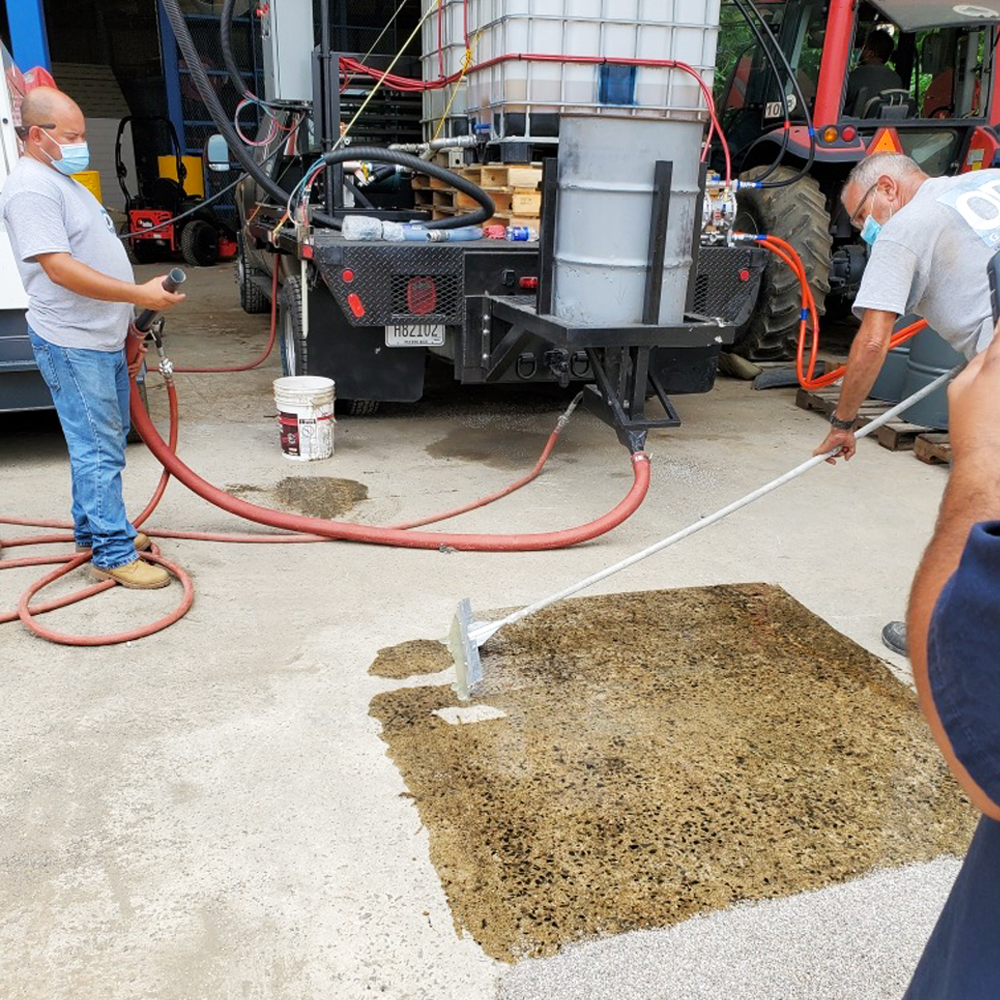

  • Bridge Deck Overlays

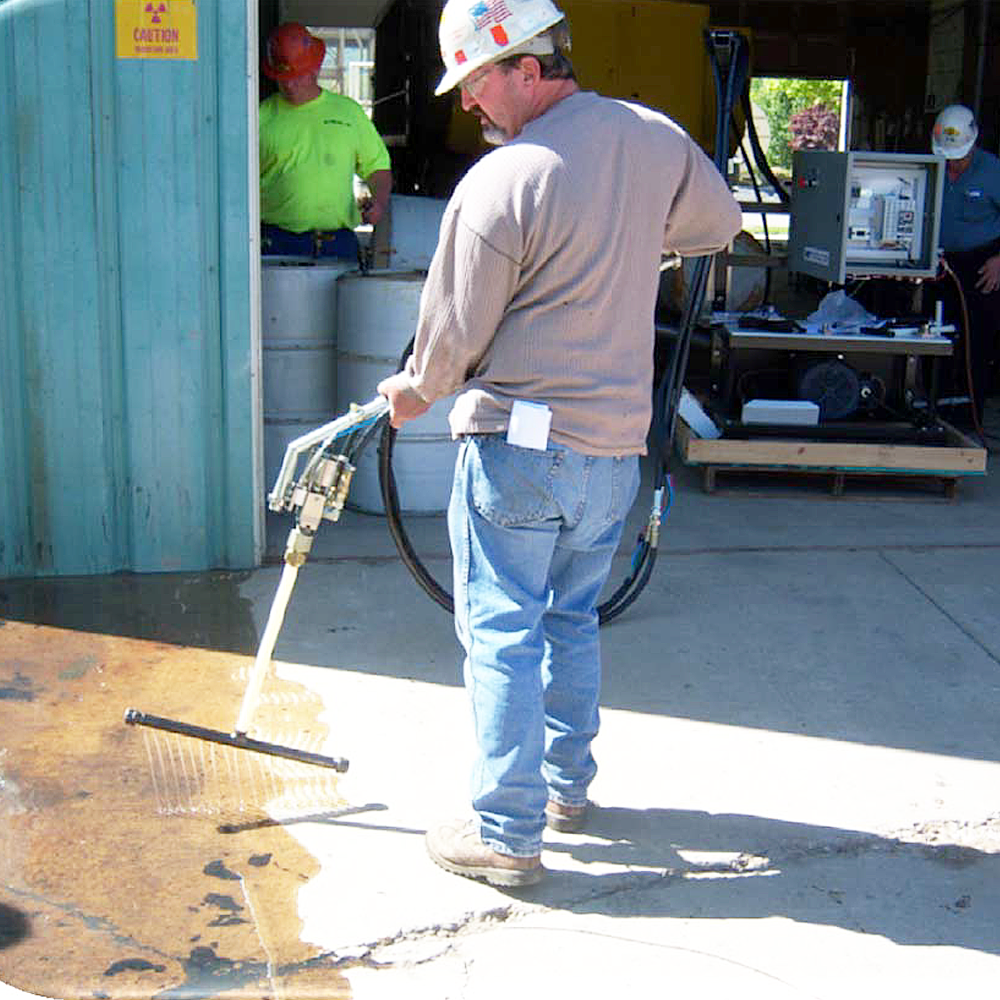

  • Parking Lot Repair
  • Waterproofing
  • Highway Repair

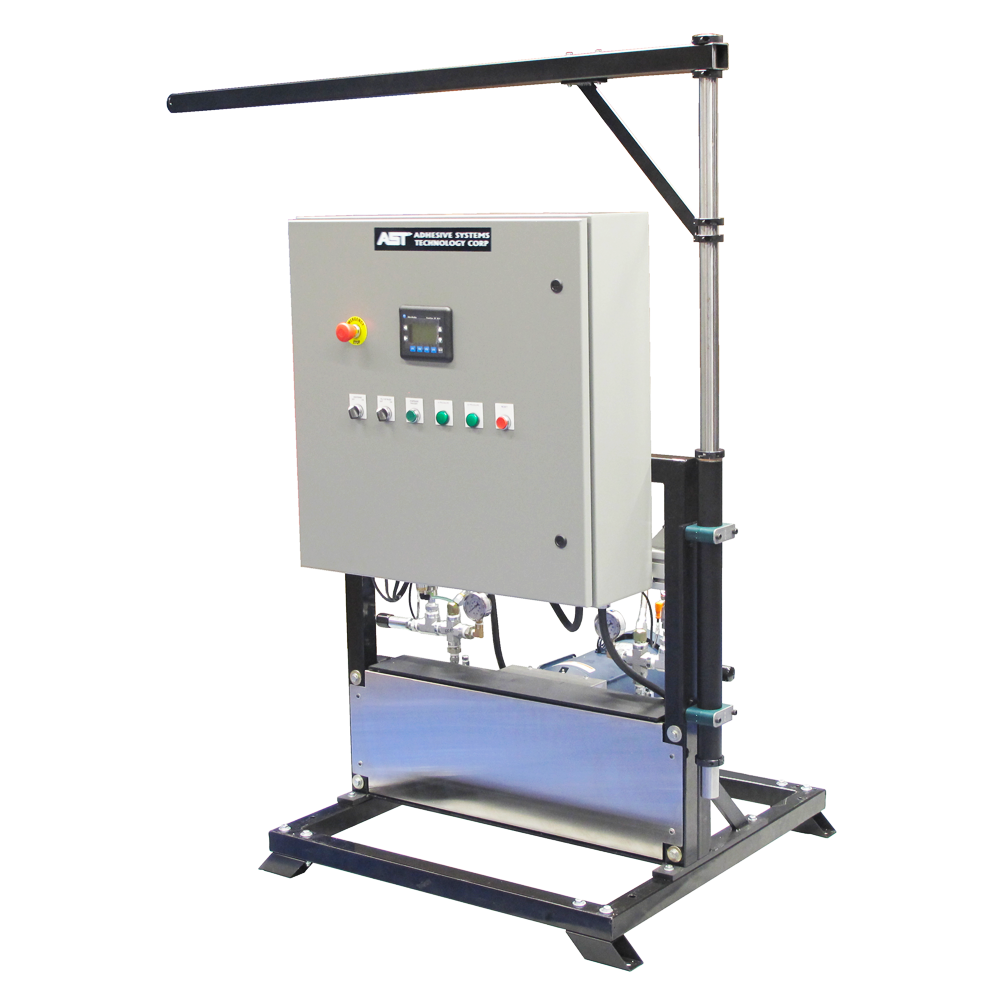

AST GMP-500: Industrial Dispensing System for Durable Overlays

Unmatched Precision for Bridge Deck and Parking Structure Overlays

Introducing the AST GMP-500, a versatile industrial dispensing system meticulously designed to dispense epoxies, urethanes, and urethane hybrids. This system is a powerhouse in applications like bridge deck and parking lot overlays, ensuring the longevity and durability of structures by providing precise and continuous flow of materials.

Need more volume, check out the GMP-1000 for maximum output.


Revolutionizing Infrastructure Repair & Maintenance:

The AST GMP-500 is pivotal for applications such as bridge decks, highway repair, parking structures, waterproofing, concrete restoration, and floor coatings. It stands as a beacon of reliability in ensuring that overlays are applied with utmost precision and adherence, crucial for the structural integrity and longevity of bridges and parking structures.

Features and Benefits:

  • GMP Metering Pump: Guarantees accurate and consistent metering for optimal performance.
  • High Flow & Pressure: Delivers continuous flow up to 6 gpm and operates at fluid pressures up to 1,000 psi, handling viscosities up to 10,000 cps.
  • Automatic Dispense Manifold & Variable Flow Rate: Offers flexibility and precision in material dispensing, ensuring uniform application.
  • 5 HP DC Drive Motor: Powers the system for efficient and reliable operation.
  • Electric/Pneumatic Powered: Provides versatility and reliability in various working conditions.
  • Optional Spray Head & Control Options: Allows for customization to meet specific application needs, ensuring precise flow metering and ratio control.

Applications:

  • Bridge Decks & Highway Repair: The AST GMP-500 is essential in applying durable overlays to protect bridge decks and highways from environmental damage and wear, extending the lifespan of these critical infrastructures.
  • Parking Structures & Waterproofing: This system ensures the precise application of coatings and sealants to parking structures, providing a resilient and waterproof surface that withstands environmental stressors and traffic loads.
  • Concrete Restoration & Floor Coatings: The AST GMP-500 excels in restoring concrete structures and applying floor coatings with accuracy and efficiency, vital for maintaining structural integrity and aesthetic appeal.

Optimized for Structural Excellence:

The AST GMP-500 is not just a dispensing system; it’s a solution for enhancing structural repair and maintenance processes, ensuring accuracy, reliability, and industrial-grade performance. Whether it’s for new constructions or refurbishments, this system is a valuable asset for any infrastructural project.

Specifications

MODEL

PCH GMP-500

FRAME

2” powder coated tubular steel

MACHINE TYPE

Changeable ratio/metering/ Dispensing GMP gear

METERING PUMPS

(2) heavy duty AST GMP gearotor™

CONTINUOUS OUTPUT

Up to 6 gallons per minute

SERVICES REQUIRED

240 V./15 AH, 30 AMP

90 psi, 2 cfm

RATIO RANGE

1:1 to 4:1

CONTAINERS

55 gallon drums or 400 gallon gravity fed totes

MOTOR

5 HP DC, 90 volt

MIXER

Disposable, plastic, motionless

STANDARD CONTROLS

On/Off; variable speed

APPLICATORS

AST; hand held; manual dual port manifold

VISCOSITY RANGE

100 CPS to 10,000 CPS

HOSES

High pressure, nylon core

½ x 25’

GAUGES

(2) glycerin filled 600 psi

AIR DRYER

Desiccant cartridge


OPTIONS

  • Heated tanks; feed systems
  • Hydraulic drive
  • Low pressure spray /aspirator
  • Flow meter/ratio control
  • Boom arm

Common Compatible Materials

  • Epoxy
  • Polyurethane
  • Euclid Flexolith
  • E-Chem EPC
  • Sika Sikadur 22
  • Contact us to see if your material is compatible

Submit the form below to get the Technical Data Sheet (TDS) for this product sent to your email address.

About AST Equipment

Adhesive Systems Technology (AST) equipment is manufactured in Minnesota, USA and is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
