Continuous Flow Dispensing System for Epoxy Crack Injection

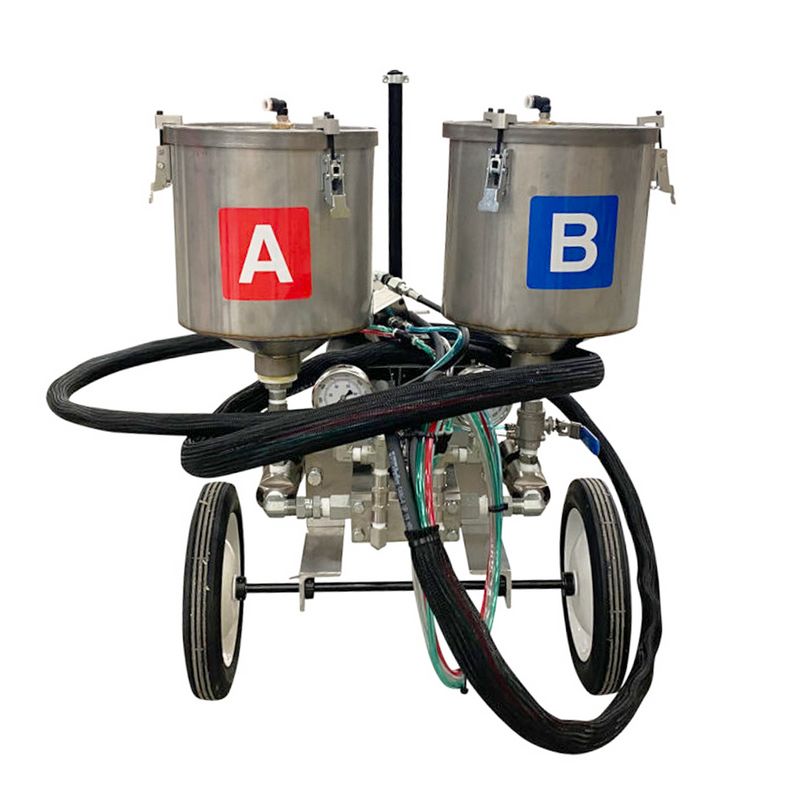

AST RMP 317-C: Industrial-Grade Two-Part Epoxy Dispensing System for Concrete Crack Injection
Engineered for High-Volume, Precision Concrete Repair Applications
In the demanding field of concrete repair, epoxy crack injection remains the definitive method for structural reinforcement. The AST RMP 317-C is purpose-built for industrial professionals requiring a robust, high-performance dispensing system for two-part epoxy applications.
Two-Part Epoxy Dispensing: Uncompromising Accuracy
The AST RMP 317-C is not your average dispensing system. It's an industrial-grade tool designed for the precise mixing and application of two-part epoxies. Utilizing the AST RMP Metering Pump, this system ensures accurate ratios—1:1, 2:1, or 4:1—for optimal chemical reactions and superior repair quality.
Continuous Flow: Maximized Throughput
Time is money in industrial settings. The AST RMP 317-C delivers a continuous flow rate of up to 20 ounces per minute, enabling high-volume dispensing without sacrificing precision. The system's adjustable flow rate can be calibrated to the specific requirements of each project, offering unparalleled versatility and efficiency.
Operational Advantages
- Industrial-grade portability
- Rugged stainless steel construction
- Pneumatic controls for reliable operation
- Configurable mixing ratios
- Sealed system for operational safety
- Backed by AST's comprehensive warranty
- Modular design for application-specific customization
- Metered or continuous flow capabilities
- High-pressure handling up to 1,100 psi
- Continuous flow up to 20 ounces per minute
Target Applications
- Industrial Crack Injection
- Large-Scale Concrete Repair
- Structural Reinforcement
Specifications
|
MODEL |
PCH PV 317-C |
PUMP SIZES |
Up to 5/8” Dia. x 4” stroke; max |
|
MACHINE TYPE |
Fixed ratio/metering dispensing; RMP with changeable ratios |
SERVICES REQUIRED |
Clean, dry, compressed air at 90 psi; up to 4 cfm |
|
CONTINUOUS OUTPUT |
Up to 0.4 gallons per minute |
SHOT SIZE ADJUSTMENT |
20 – 100% stroke |
|
RATIO RANGE |
Standard fixed ratios from 1:1 to 4:1; other ratios available |
STANDARD CONTROLS |
On/Off; pressure regulation |
|
VISCOSITY RANGE |
Up to 30,000 cps |
DRIVE SYSTEM |
3” Dia. x 4” stroke air cylinder |
|
CONTAINERS |
2.5 gallons each side, stainless steel |
APPLICATORS |
AST hand held; manual dual port manifold |
|
CYCLE RATE |
Up to 20 cycles per minute |
MIXER |
Disposable, plastic, static |
|
DIMENSIONS |
14” L x 24” W x 38” H, 60 lbs. |
HOSES |
(2) ¼” x 12-1/2 ft. |
|
METERING PUMPS |
RMP rod pumps, positive displacement; meter mounted horizontal |
OPTIONS |
|
