Two Part Epoxy and Urethane Dispensing System for Bridge Deck Overlays (AST GMP 500)

SKU: AST GMP-500-C


We're local! Get onsite help with planning, installation or training for your new dispensing system. Learn more

Used to Dispense

  • Unfilled Epoxies
  • Unfilled Urethanes
  • Polyureas

Common Applications

  • Bridge Deck Overlays
  • Parking Lot Repair
  • Waterproofing
  • Highway Repair

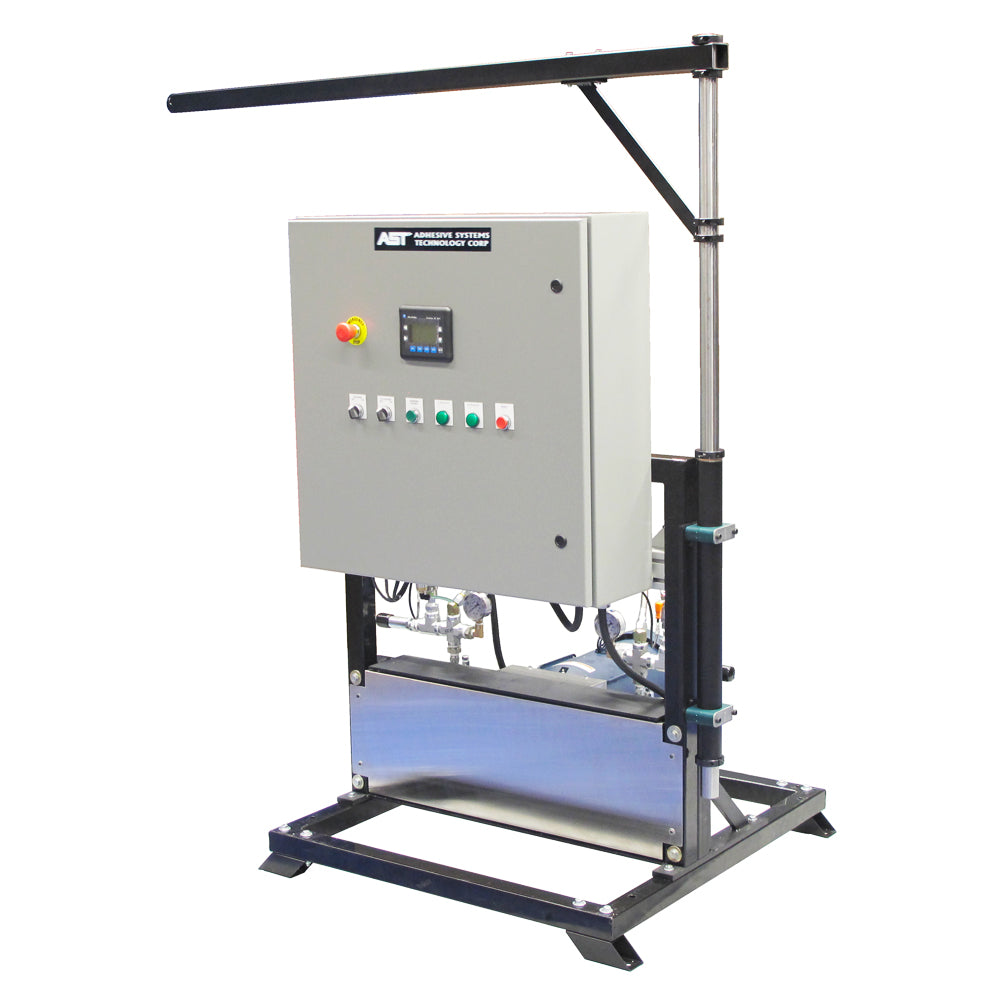

AST GMP-500: Industrial Dispensing System for Durable Overlays

Unmatched Precision for Bridge Deck and Parking Structure Overlays

Introducing the AST GMP-500, a versatile industrial dispensing system meticulously designed to dispense epoxies, urethanes, and urethane hybrids. This system is a powerhouse in applications like bridge deck and parking lot overlays, ensuring the longevity and durability of structures by providing precise and continuous flow of materials.

Need more volume, check out the GMP-1000 for maximum output.


Revolutionizing Infrastructure Repair & Maintenance:

The AST GMP-500 is pivotal for applications such as bridge decks, highway repair, parking structures, waterproofing, concrete restoration, and floor coatings. It stands as a beacon of reliability in ensuring that overlays are applied with utmost precision and adherence, crucial for the structural integrity and longevity of bridges and parking structures.

Features and Benefits:

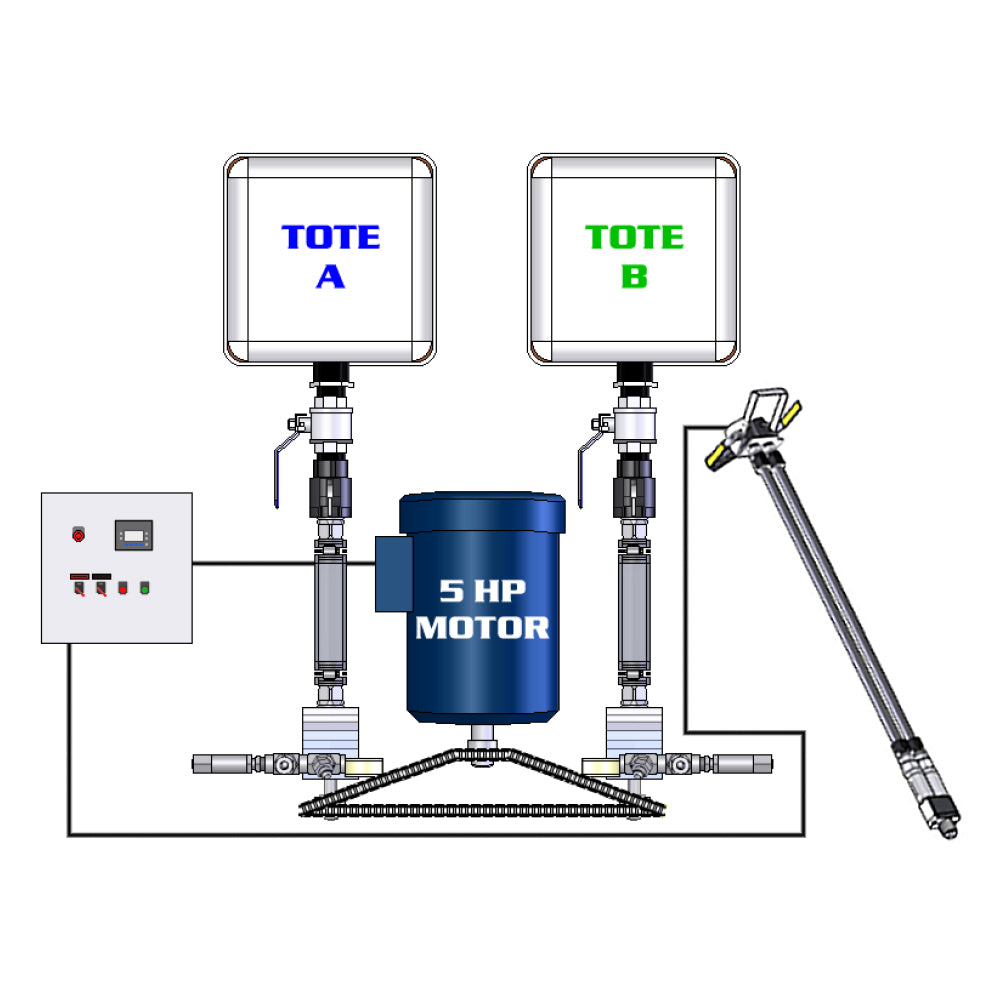

  • GMP Metering Pump: Guarantees accurate and consistent metering for optimal performance.
  • High Flow & Pressure: Delivers continuous flow up to 8 gpm and operates at fluid pressures up to 1,000 psi, handling viscosities up to 5,000 cps.
  • Automatic Dispense Manifold & Variable Flow Rate: Offers flexibility and precision in material dispensing, ensuring uniform application.
  • 5 HP DC Drive Motor: Powers the system for efficient and reliable operation.
  • Electric/Pneumatic Powered: Provides versatility and reliability in various working conditions.
  • Optional Spray Head & Control Options: Allows for customization to meet specific application needs, ensuring precise flow metering and ratio control.

Applications:

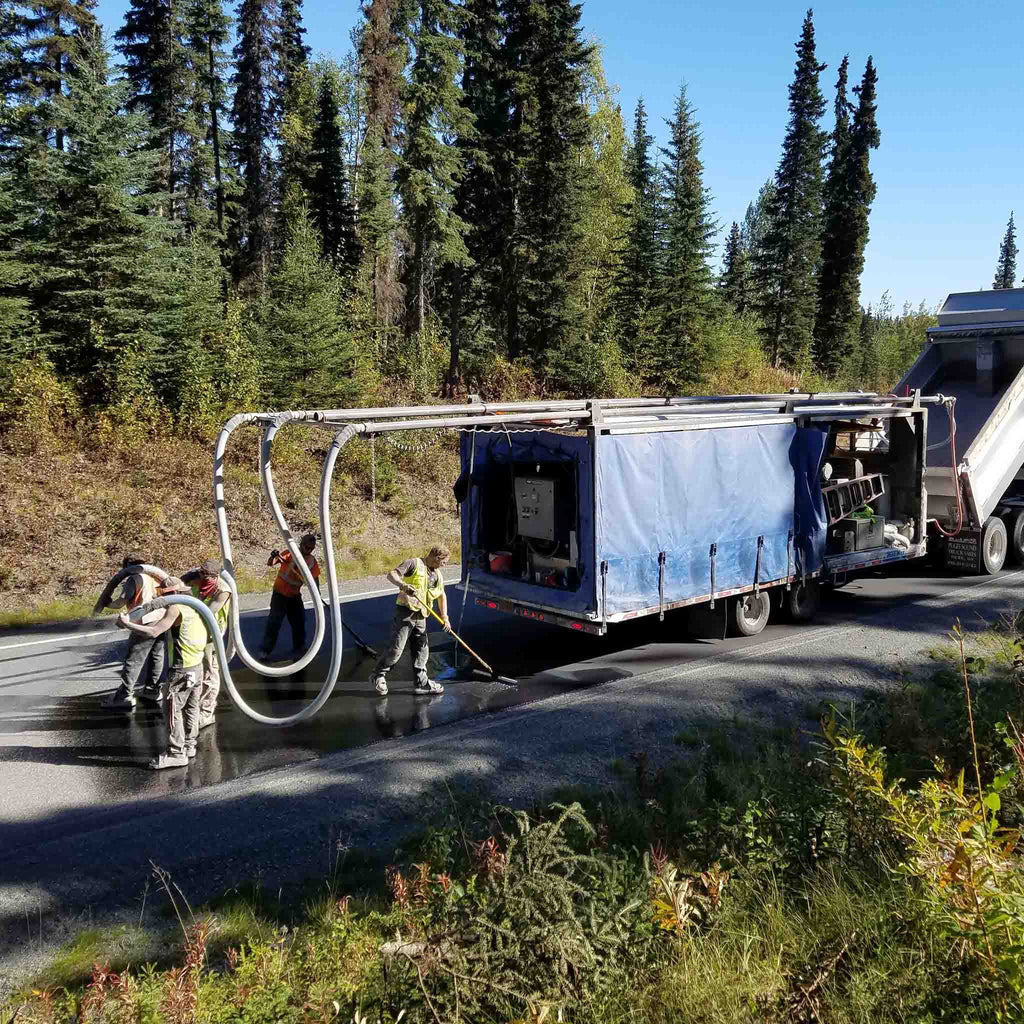

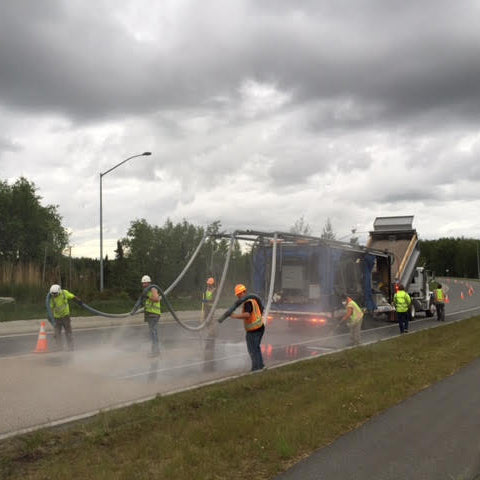

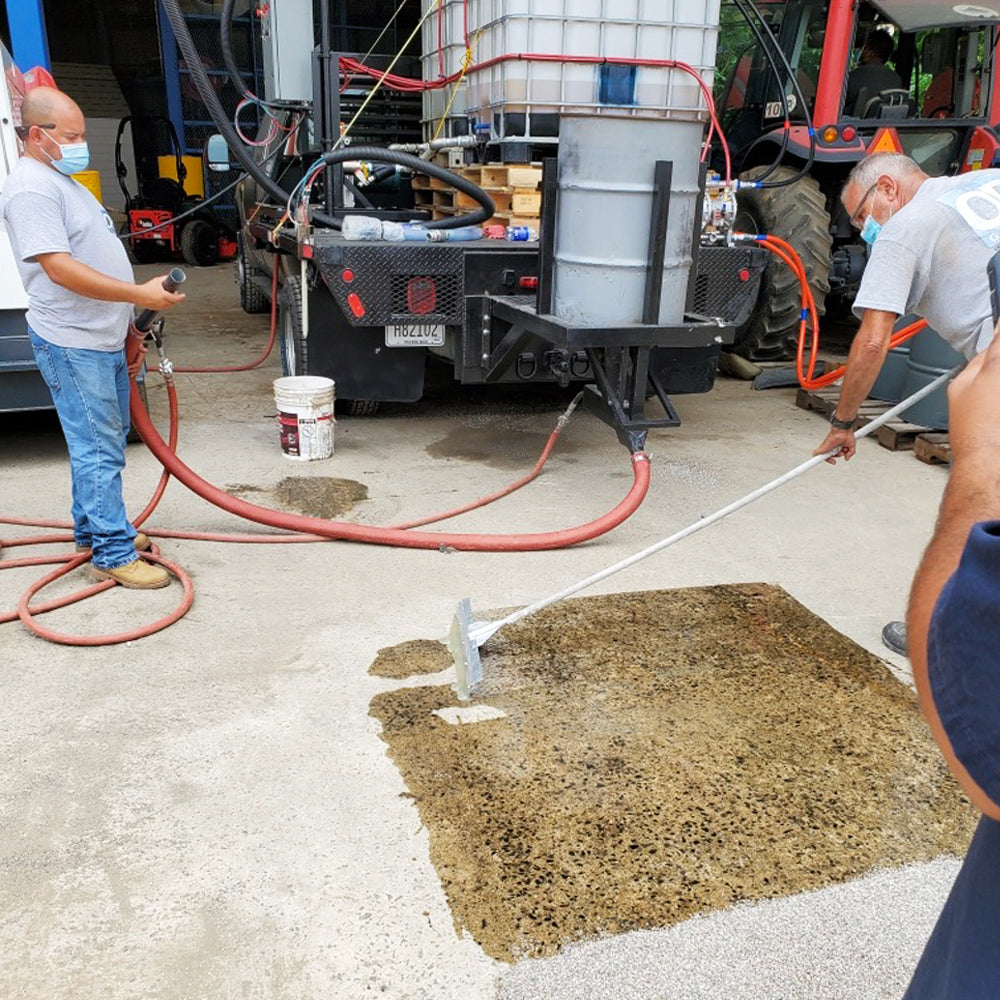

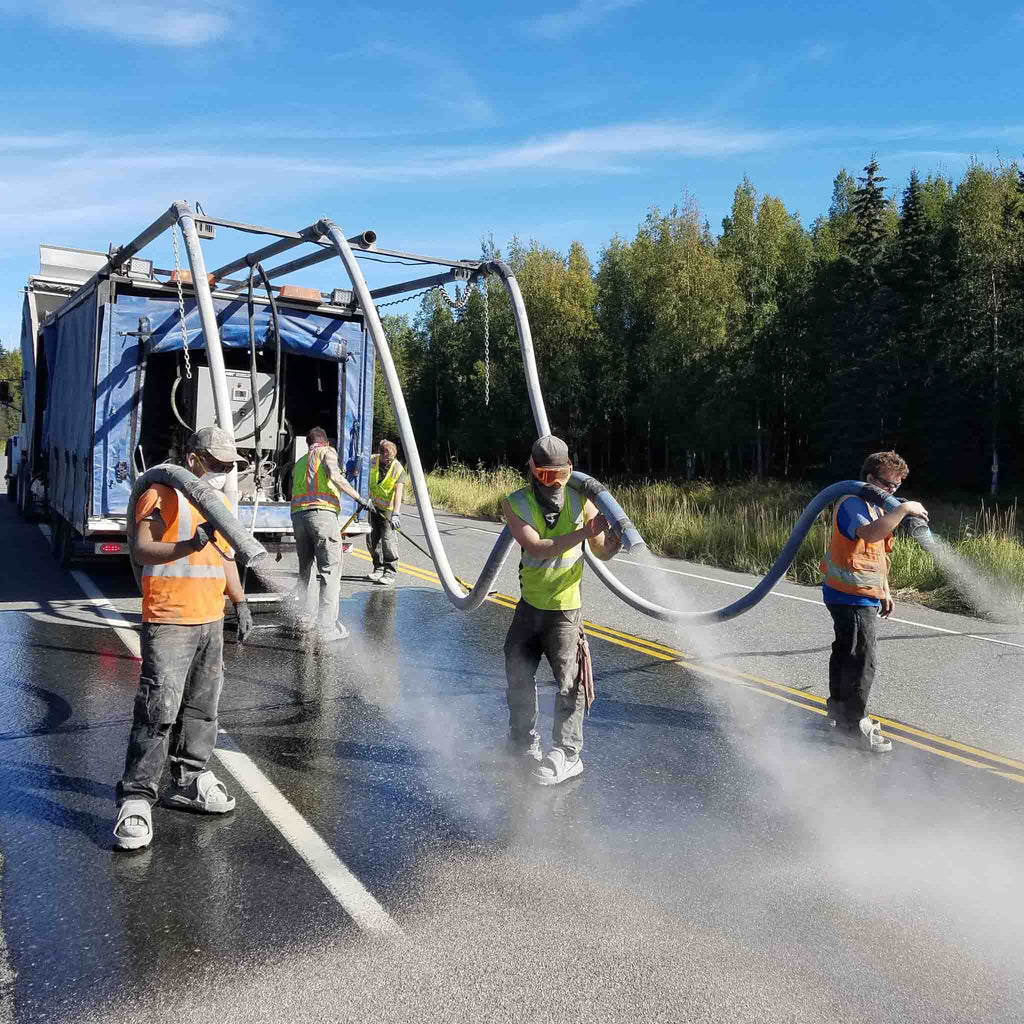

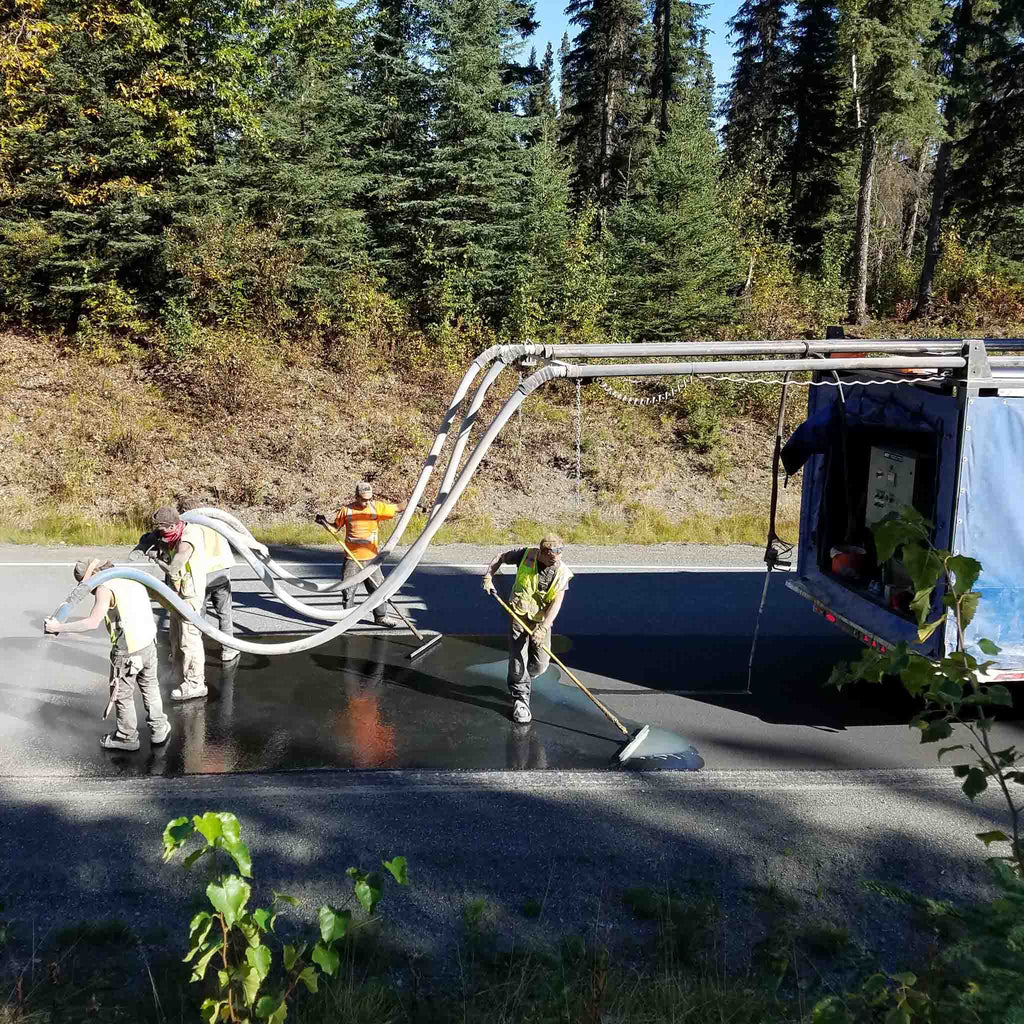

  • Bridge Decks & Highway Repair: The AST GMP-500 is essential in applying durable overlays to protect bridge decks and highways from environmental damage and wear, extending the lifespan of these critical infrastructures.

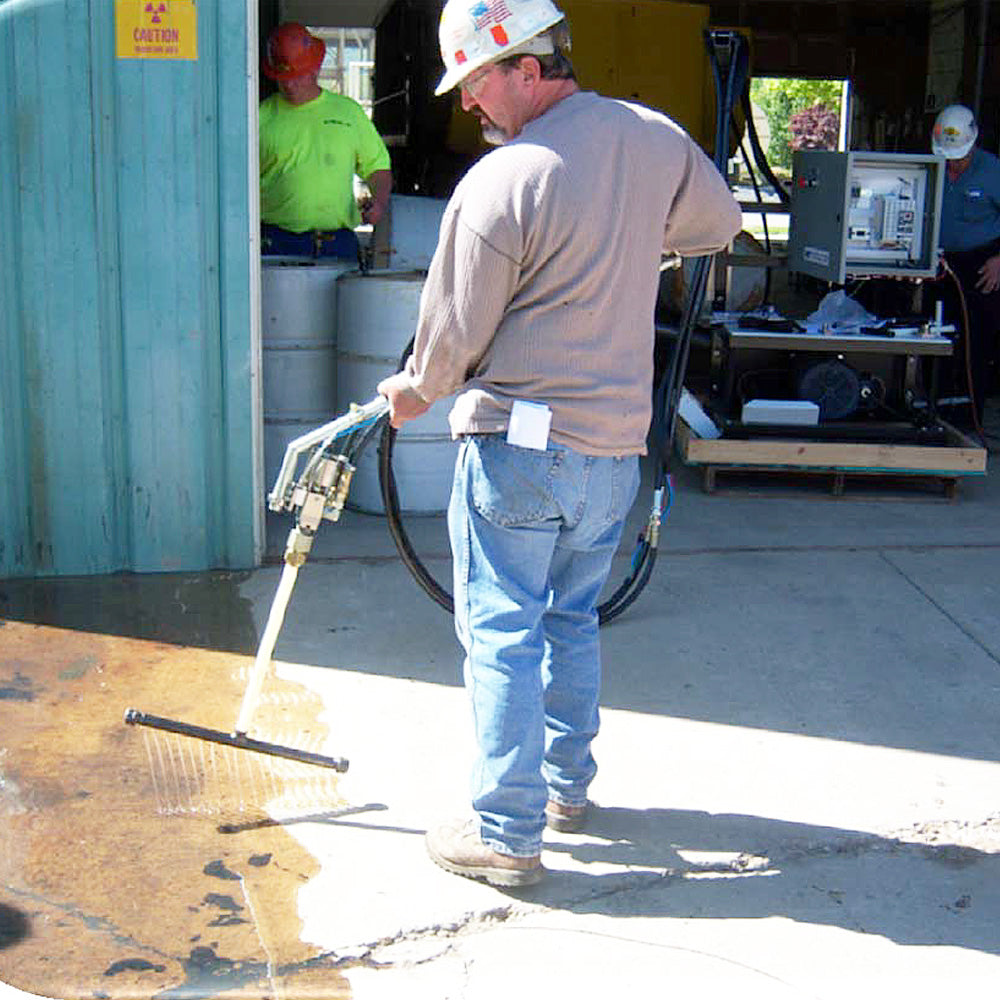

  • Parking Structures & Waterproofing: This system ensures the precise application of coatings and sealants to parking structures, providing a resilient and waterproof surface that withstands environmental stressors and traffic loads.
  • Concrete Restoration & Floor Coatings: The AST GMP-500 excels in restoring concrete structures and applying floor coatings with accuracy and efficiency, vital for maintaining structural integrity and aesthetic appeal.

Optimized for Structural Excellence:

The AST GMP-500 is not just a dispensing system; it’s a solution for enhancing structural repair and maintenance processes, ensuring accuracy, reliability, and industrial-grade performance. Whether it’s for new constructions or refurbishments, this system is a valuable asset for any infrastructural project.

Specifications

MODEL

PCH GMP-500

FRAME

2” powder coated tubular steel

MACHINE TYPE

Changeable ratio/metering/ Dispensing GMP gear

METERING PUMPS

(2) heavy duty AST GMP gearotor™

CONTINUOUS OUTPUT

Up to 8 gallons per minute

SERVICES REQUIRED

240 V./15 AH, 30 AMP

90 psi, 2 cfm

RATIO RANGE

1:1 to 4:1

CONTAINERS

Pressure feed or gravity feed kit

MOTOR

5 HP DC, 90 volt

MIXER

Disposable, plastic, motionless

STANDARD CONTROLS

On/Off; variable speed

APPLICATORS

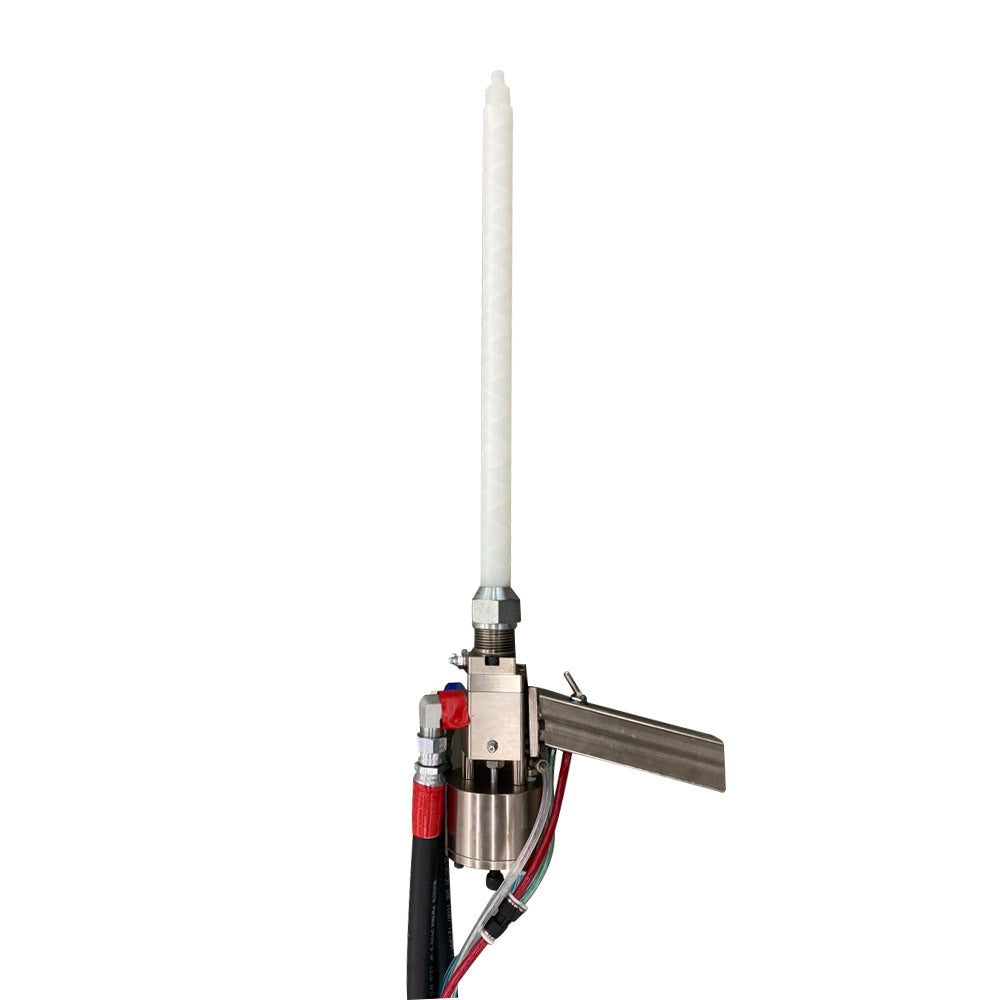

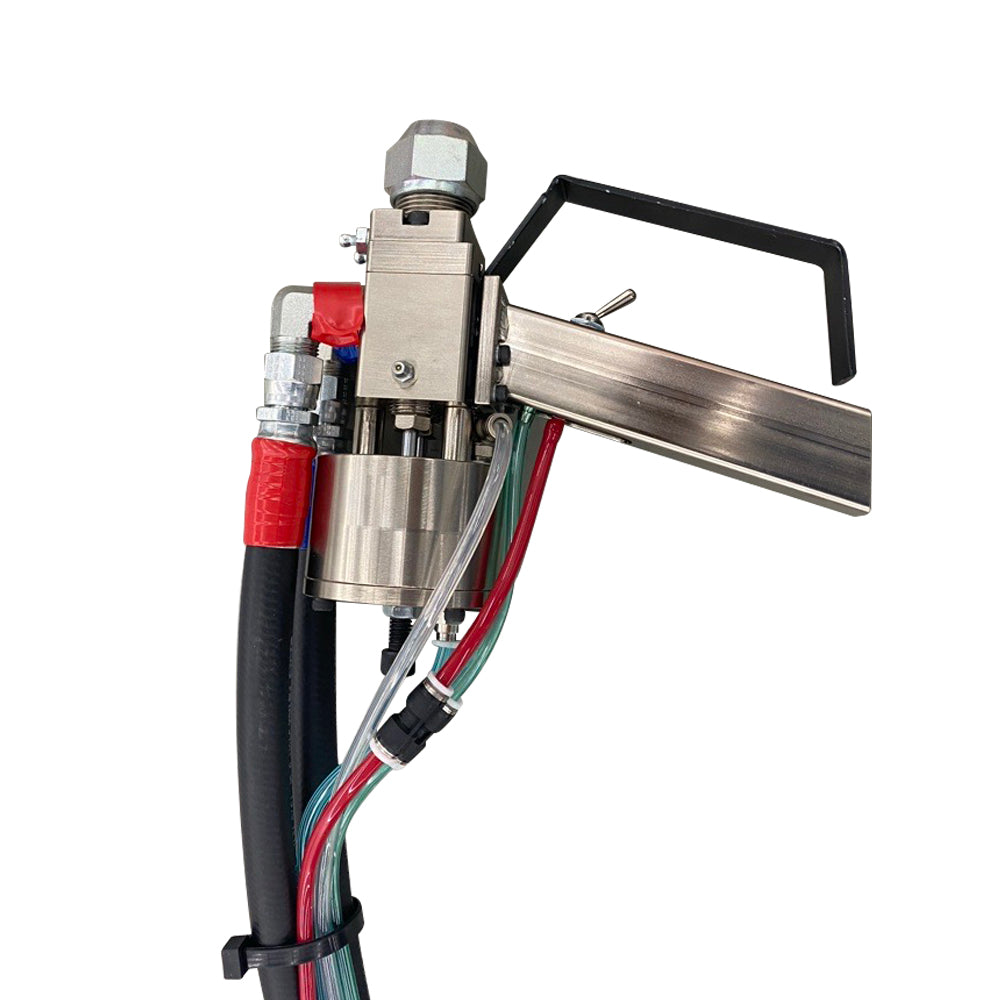

AST; hand held; manual dual port manifold

VISCOSITY RANGE

100 CPS to 5,000 CPS

HOSES

High pressure, nylon core

½ x 15’

GAUGES

(2) glycerin filled 600 psi

AIR DRYER

Desiccant cartridge


OPTIONS

  • Heated tanks; feed systems
  • Hydraulic drive
  • Low pressure spray /aspirator
  • Flow meter/ratio control
  • Boom arm

Resources

Technical Data Sheet

Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

About AST Equipment

AST dispensing equipment is part of APPLIED Adhesives Equipment Solutions. Dispensing.com is the exclusive distributor of AST dispensing equipment.
