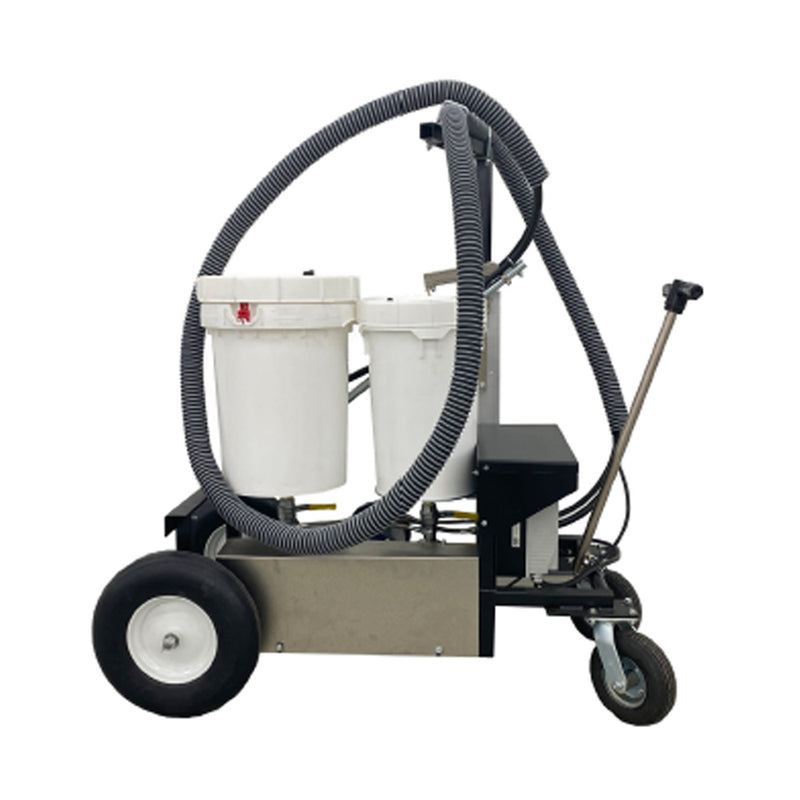

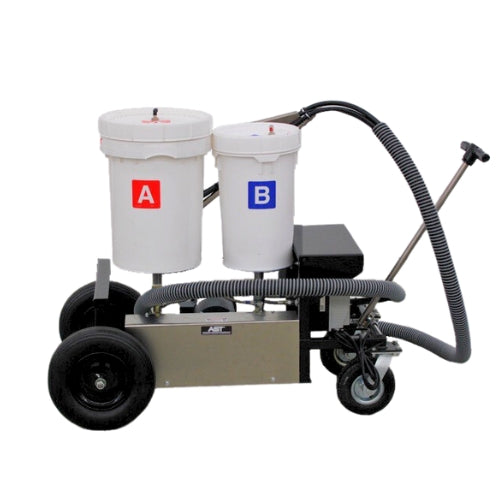

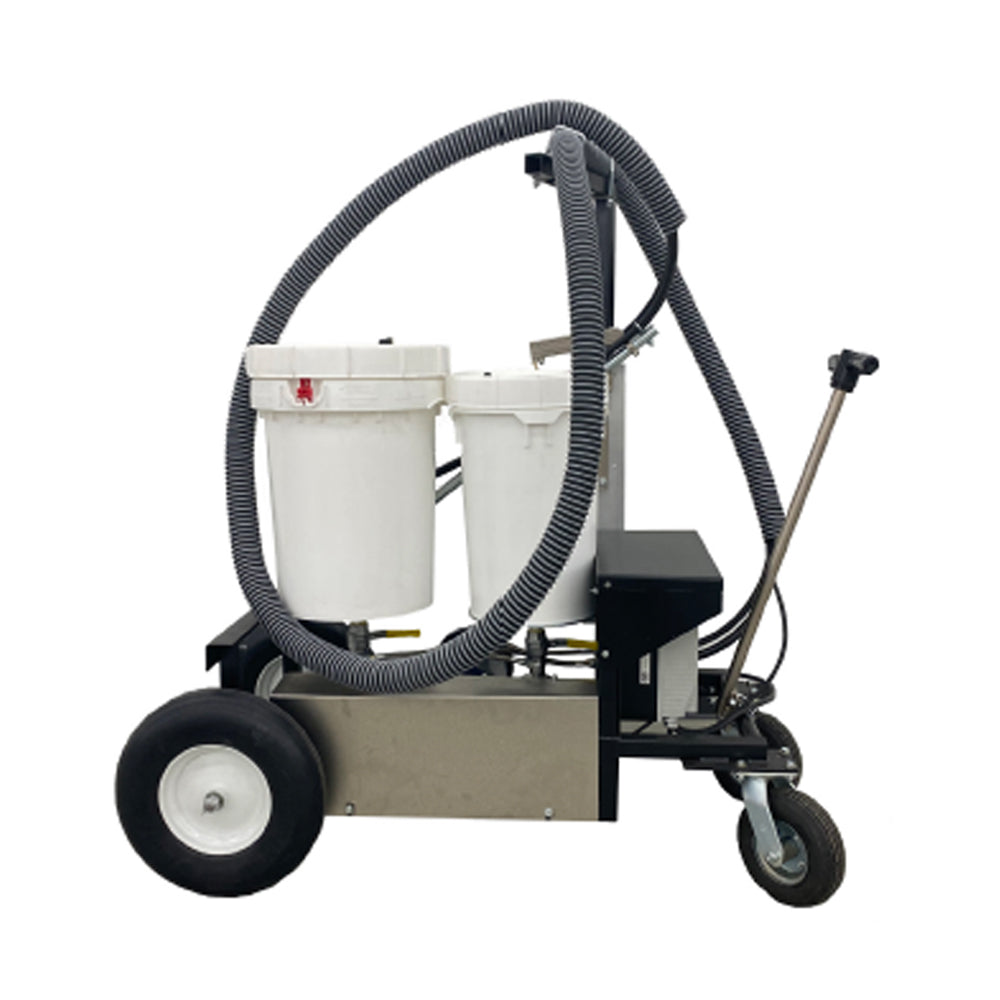

Epoxy Dispensing System for Garage and Cement Floor Coatings (AST GMP 200P)

SKU: AST GMP-200P

We're local! Get onsite help with planning, installation or training for your new dispensing system. Learn more

Unfilled Epoxies
Unfilled Urethanes
Polyureas

Garage and Floor Coating

Overview of the Epoxy Dispensing Equipment for Garage and Floor Coatings

If you're a high-volume user, professional, or contractor applying epoxy coatings to cement floors in busy environments like garages, efficiency is key. Our high-volume two-part epoxy dispensing system is specifically tailored to meet your needs, enabling you to complete jobs more efficiently without compromising on quality. This system is designed for those who demand top-notch results and want to optimize their workflow.

Using Epoxy Dispensing System vs Hand Mixing

Time is money, especially in the fast-paced world of professional and industrial epoxy applications. Traditional methods of hand-mixing and pouring epoxy are not only labor-intensive but also prone to inconsistencies, leading to costly rework. Using floor epoxy meter mix equipment eliminates these inefficiencies by automating the mixing and dispensing process.

With features like continuous flow up to 2 GPM and high fluid pressures, you can complete jobs in a fraction of the time it would take using manual methods. This means faster project turnaround, increased efficiency, and ultimately, more profitability for your business.

Key Features

High-Performance Pumping and Flow
Our system combines dual motor pumps with external lubrication and a continuous flow rate of up to 2 GPM. This ensures a smooth, consistent application every time, allowing you to complete your projects faster and more efficiently.

Precision and Flexibility

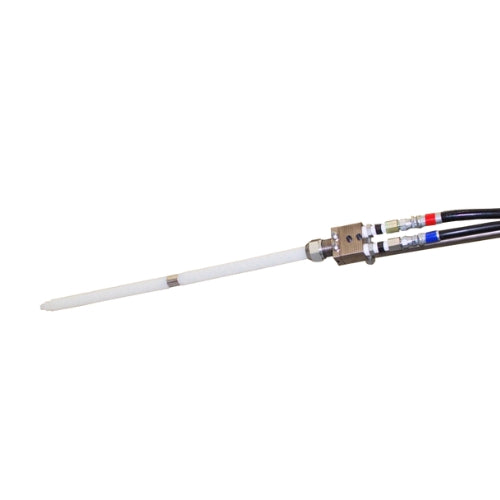

Achieve optimal adhesion with high fluid pressures up to 1,000 PSI and adjustable ratios ranging from 1:1 to 4:1. The manual dispense valve gives you full control for precise application.

Durability and Power

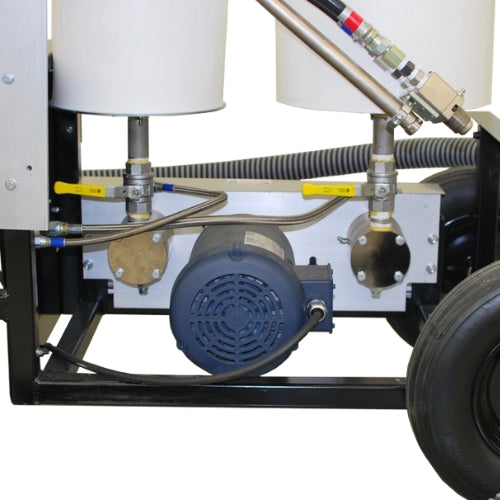

Choose between Stainless Steel or Plastic tanks with capacities of 8 ½ or 12 gallons, all powered by a robust 2 HP DC motor. The system is electrically operated at 220 volts, eliminating the need for manual pumping.

Versatile Material Compatibility
Our system is designed to pump non-abrasive materials, offering you greater flexibility in your choice of epoxy coatings.

Specifications

Model: Bench Mounted or Portable
Preset Ratio Range: 1:6 – 6:1
Pumps: Positive Displacement AST Gear Metering Pumps
Viscosity: 1cps – 30,000 cps

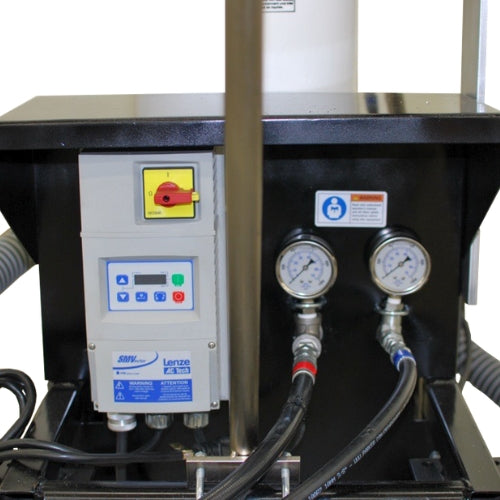

Drive System: 2 HP Electric
Power Factor: 5:1, 10:1, 20:1
Shot Rate: 4cc – 8.5oz per second
Supply: 9 gallon stainless steel tanks
Shot Adjustment: 0-100% by adjusting motor speed
Dispensing Manifold: Fixed mounted or hand held; Automatic
Continuous Output: Up to 4.0 gpm
Controls: Electric Variable Speed 110/220v, Pneumatic 80psi
Accuracy: Within 2% shot to shot
Hoses: Teflon core braided stainless

Submit the form below to get the Technical Data Sheet (TDS) for this product sent to your email address.

Questions about this product? Our team of adhesive specialists can help. Submit your questions and we'll get you answers right away.

Advanced Systems Dispensing (AST) equipment is part of APPLIED Adhesives Equipment Solutions. APPLIED is continuing its commitment to engineering and the development of adhesive dispensing systems and automation solutions for the industrial and construction markets.
