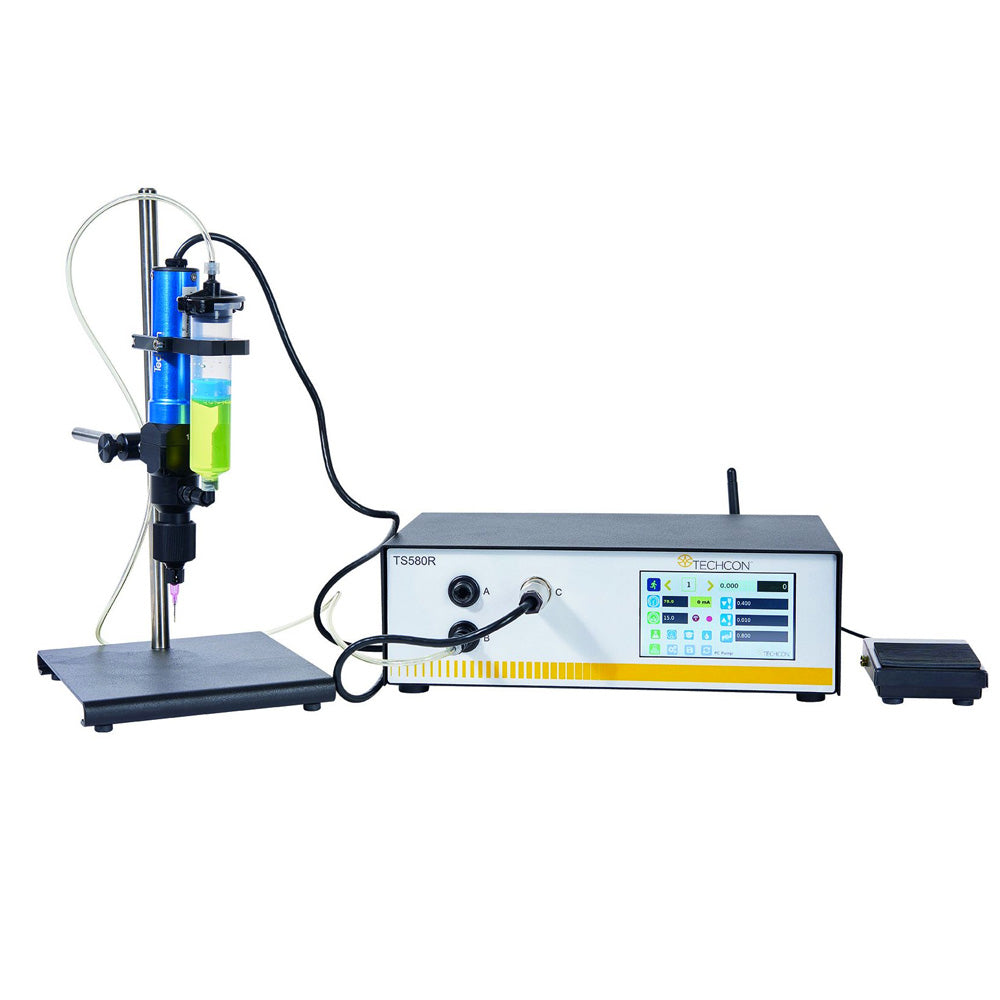

  • Desktop Pump Valve Fluid Dispensing System

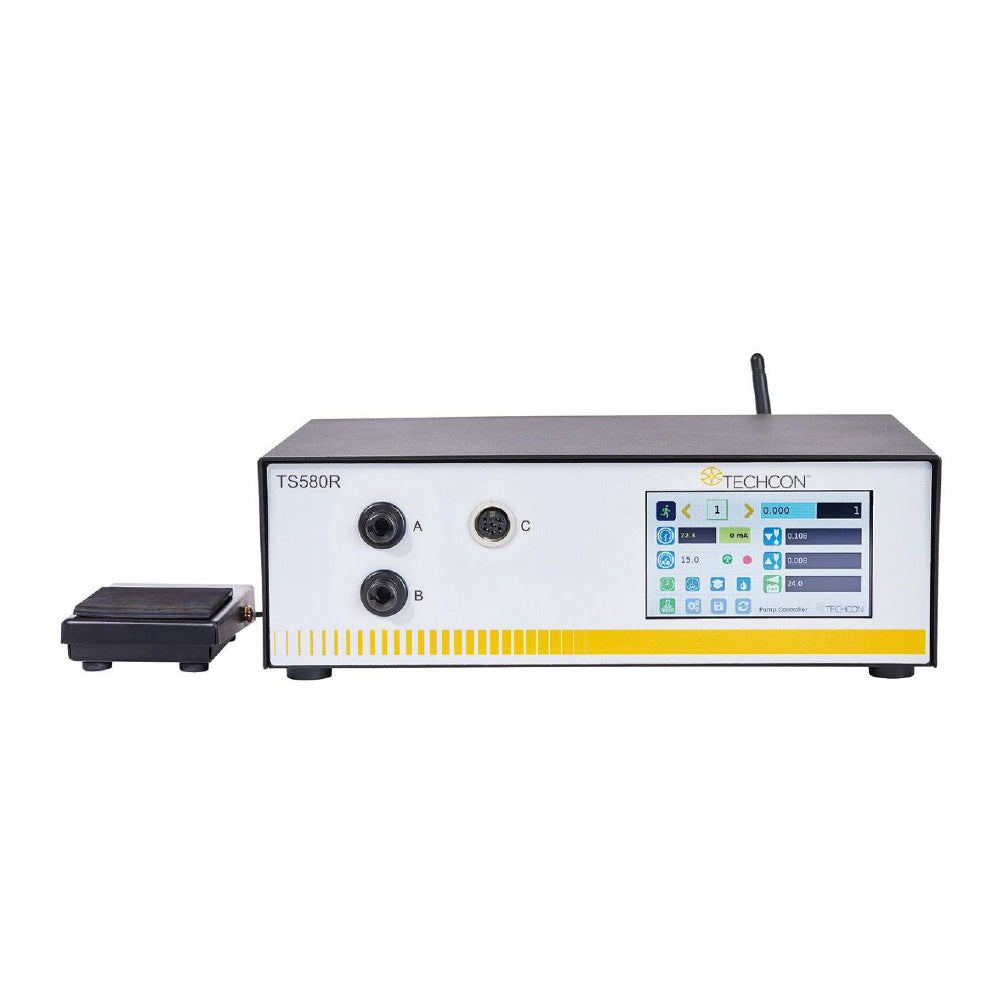

Techcon TS580R Smart Pump Valve Controller

The Techcon TS580R contoller is for use with TS1800 Series PC pumps for dispensing a wide range of fluid and adhesive materials. The TS580R is a simple-to-use system with a LCD touch screen and ethernet and WiFi capability.

Easily configure a complete system using the Techcon TS580R controller here.

185-clipboard Created with Sketch. Highlights

  • Brand: Techcon Systems
  • Type: Valve Controller

magnifier copy Created with Sketch. Properties

  • Pump Valve Controller

SKU: TECHCON TS580R

$   On Sale
$1,700.00

Additional Information on the Techcon TS580R Pneumatic PC Pump Valve Controller

The Techcon TS580R Smart PC Pump controller offers an smart touch screen interface for simple setup and use. Parameters can be configured directly on the touch screen or through the networking options via Ethernet or WiFi.

The user interface on the TS580R provides options to program up to 50 varied, sequenced or individual shots. These systems have a user programmable “purge”, “timed” dispense cycle settings and a "teach mode" for determining the dispensing time.

Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.

Additional advance features include digital timer to provide accurate and repeatable dispense time, and digital pressure regulator with dual-unit display to allow precise pressure control.

Features of the TS580R Controller

  • Touch Screen interface for easy setup and operation
  • Industry 4.0 for “Smart Factory” integration
  • Universal power supply for worldwide use
  • Digital pressure regulator for precise control

Common Applications

  • Under Filling PCBA Components
  • Potting and Encapsulating
  • Applying Lubricants to Manufacturing Parts
  • Dispensing Pastes and Flux Materials

Techcon TS580R Controller Specifications

Part Number: TS580R
Size (Imperial): 11.4' W x 8.3'' L x 3.9'' H
Size (Metric): 290mm x 211mm x 99mm
Weight: 6.8 lb (3100g)
Pressure Range: 0 to 100psi (0-6.9 bar)
Display: Touch Screen
Timing Range: 0.008 – 99.9 seconds
Timing Tolerance: +/- 0.001%
Input Voltage: 100 – 240 VAC
Cycle Rate: 900/min.
Cycle Modes: Timed, Interrupt, Teach, Purge
Connectivity: Ethernet, WIFI
Certification: CE, TUV-GS
