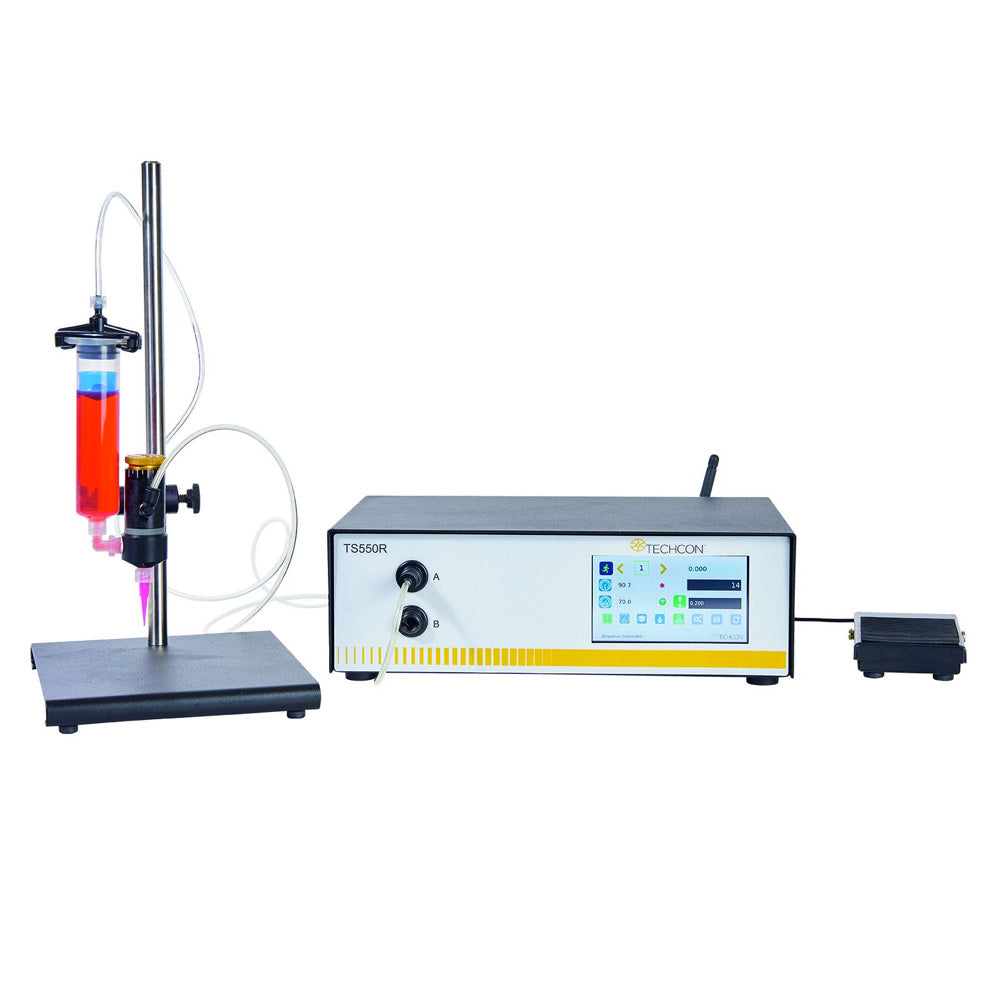

  • Pneumatic Smart Valve Controller System View

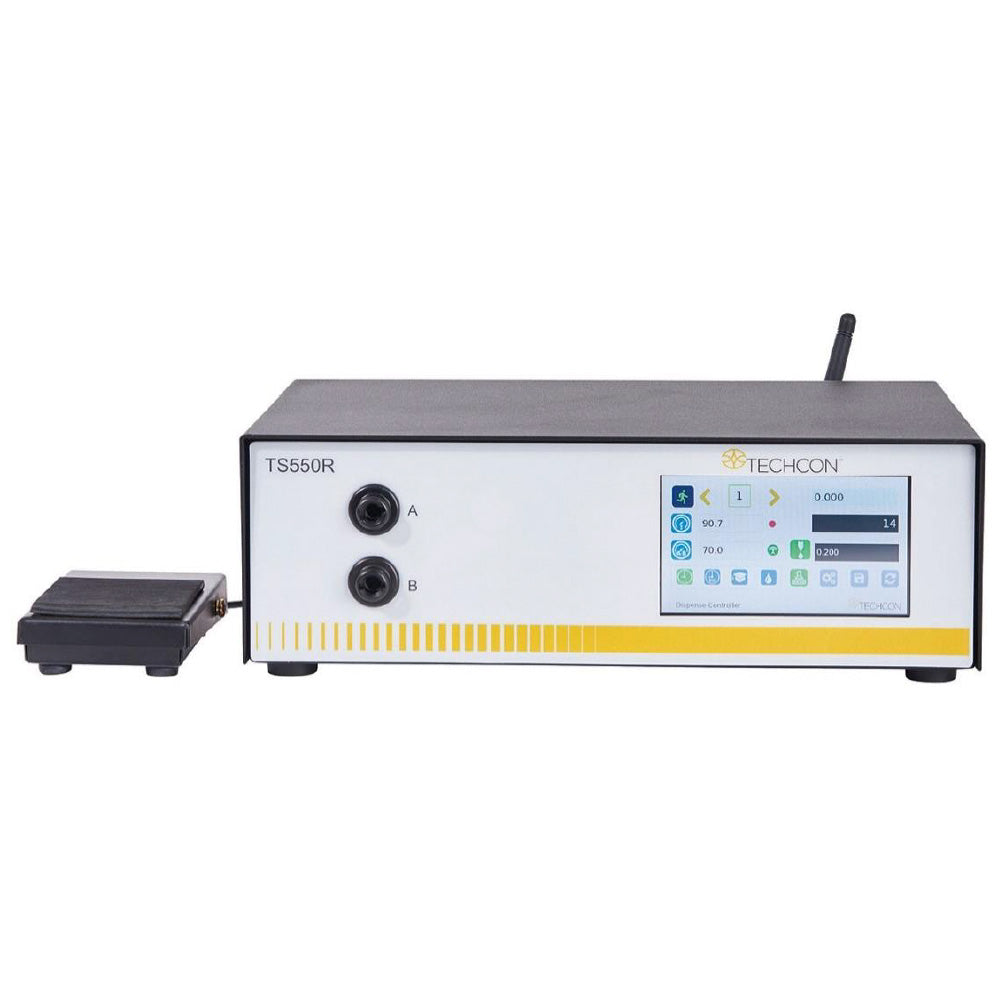

Techcon TS550R Pneumatic Smart Valve Controller

The Techcon TS550R is a pneumatic valve controller that can run a wide range of fluid and adhesive dispensing valves. The TS550R controller can be used via the easy touch screen interface or through remote networking options. This 'plug and play' controller makes bench top or automated dispensing easier than ever.

Easily configure a complete system using the Techcon TS550R controller here.

185-clipboard Created with Sketch. Highlights

  • Brand: Techcon Systems
  • Type: Valve Controller

magnifier copy Created with Sketch. Properties

  • Pneumatic Controller

SKU: TECHCON TS550R

$   On Sale
$1,450.00

Additional Information on the Techcon TS550R Pneumatic Smart Valve Controller

The TS550R Smart valve controller features an intuitive touch screen interface for easy setup and operation. Dispensing parameters can be precisely configured directly on the touch screen or remotely through the networking options.

First in its class, the TS550R is equipped with Ethernet and WiFi interfaces that allow users to configure the exact parameters and monitor and control the process from anywhere in the world. This feature complies with Smart Factory requirements of Industry 4.0.

Additional advance features include digital timer to provide accurate and repeatable dispense time, and digital pressure regulator with dual-unit display to allow precise pressure control.

The friendly user interface provides an option to program up to 50 varied, sequenced or individual shots. These systems have a user programmable “purge,” “timed” dispense cycle settings and a "teach mode" for determining the dispensing time.

Integration into semi-automatic and automatic machinery is made easy with the I/O interface connector that can be used to initiate and stop the dispense cycle with feedback to the host machine for the next cycle. A low-pressure warning feature is also included to help maintain uninterrupted dispensing.

Features of the TS550R Controller

  • Touch Screen interface for easy setup and operation
  • Industry 4.0 for “Smart Factory” integration
  • Universal power supply for worldwide use
  • Digital pressure regulator for precise control

Common Applications

  • Control Diaphragm for bonding application
  • Control Mini Spool valve for form-in-place gasket
  • Control Needle valve for precision filling process

Techcon TS550R Controller Specifications

Part Number: TS550R
Size (Imperial): 11.4' W x 8.3'' L x 3.9'' H
Size (Metric): 290mm x 211mm x 99mm
Weight: 6.8 lb (3100g)
Pressure Range: 0 to 100psi (0-6.9 bar)
Display: Touch Screen
Timing Range: 0.008 – 99.9 seconds
Timing Tolerance: +/- 0.001%
Input Voltage: 100 – 240 VAC
Cycle Rate: 900/min.
Cycle Modes: Timed, Interrupt, Teach, Purge
Connectivity: Ethernet, WIFI
Certification: CE, TUV-GS
