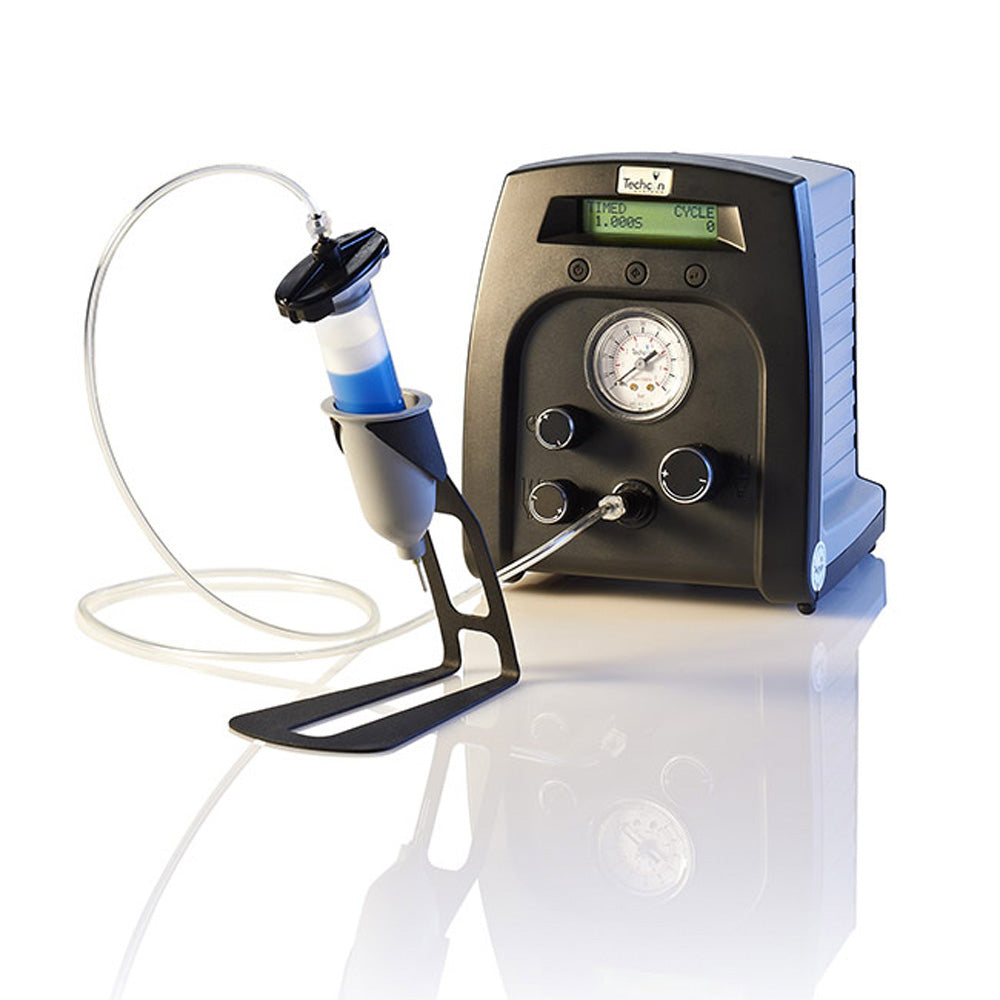

Techcon TS255 Series Basic Digital Adhesive Dispenser
About the Techcon TS255 Low Cost Digital Controller
The Techcon TS255 digital dispenser is a low cost, easy to use dispensing unit that can be used to dispense low viscosity fluid and adhesive materials. It offers a foot pedal for manual dispensing and can also be set up on a digital timer for semi-automated dispensing.
Complete Configurable System
Techcon TS255 Dispensing Controller Includes
- Foot Switch
- Power Supply
- Sample Tip Kit
- 10cc Receiver Head Kit
- Mounting Brackets
- Receiver Head Air Hose Holder
- Syringe Barrel Stand
Features of the Techcon TS255 Dispensing Controller
- Universal power supply with snap-on plug for worldwide use
- User Friendly firmware provides easy setup task
- Digital timing from 0.020-60.000 seconds
- +/- 0.001% Timing repeat tolerances
- Adjustable vacuum-driven ''suck back'' to control material ''tailing'' and waste
- Stable to conserve work space when multiple TS255 units are used together
- Large, clearly marked air pressure and vacuum control knobs
- Precise, finely scaled air pressure gauges
- High visibility, 16 x 2 LCD display panel with back lighting
- Accessories included: Universal power adapter, foot switch, syringe barrel stand, 10cc receiver head, air hose with fittings, cable holder and sample dispensing tips.
Techcon TS255 Dispensing Controller Specifications
|
Cycle Rate: |
600 cycles/minute |
|
Timing Range: |
0.020 - 60.000 seconds |
| Timing Repeat Tolerance: | +/- 0.001% |
| Input Pressure: | 100 psi (6.9bar) maximum |
| Operating Pressure TS255: | 1 - 15psi (0.07 - 1.0bar) |
| Dispense Modes: | Timed and Purge |
| Meets or Exceeds: | CE, TUV-GS and NRTL |
