Low Cost Benchtop Syringe Fluid Dispensing System - For All Viscosities

  • Low Cost Benchtop Syringe Fluid Dispensing System - For All Viscosities

When to Use This Low Cost Benchtop Syringe Dispensing System

This simple to use dispensing system is affordable, versatile and can be used with a wide range of adhesive and fluid materials. It offers a user friendly interface to easily adjust dispensing settings. Us this system for low volume dispensing of almost any single component fluid or adhesive material from a range of syringe sizes.

This system works with 3cc, 5cc, 10cc, 30cc and 50cc syringes.

Syringe Dispensing System Includes

  • Techcon TS250 Simple Air Pressure Dispensing Controller
  • Foot Switch
  • 50 Pack of Syringe Barrels (Clear, Amber or Black)
  • 50 Pack of Syringe Pistons (Wiper, Straight or Easy Flow)
  • Nozzle Tip Starter Pack (Additional Options Available)

Questions? Contact one of our dispensing experts for advice on your dispensing application.

See system for low viscosity fluids here.

drop-silhouette Created with Sketch. Used to dispense

  • Activators
  • Adhesive Pastes
  • Alcohol
  • Anaerobics
  • Conformal Coatings
  • Cyanoacrylates
  • Epoxies
  • Greases
  • Inks
  • Solder Pastes
  • UV Cure Adhesive (Gels)
  • UV Cure Adhesive (Liquid)

glue Created with Sketch. Common applications

  • Beads
  • Lines and Beads
  • Medical Device
  • Potting and Encapsulating
  • Product Assembly

Additional Information on the Entry Level Syringe Dispensing System

This low cost and easy-to-use dispensing system uses air pressure to dispense a huge range of fluid or adhesive materials. Operating at 0 to 100 psi, this compact system can handle a wide range viscosities. Simply fill your syringe (or attach your own) and let this air pressured dispensing system do the rest.

About the Dispensing Controller Pump

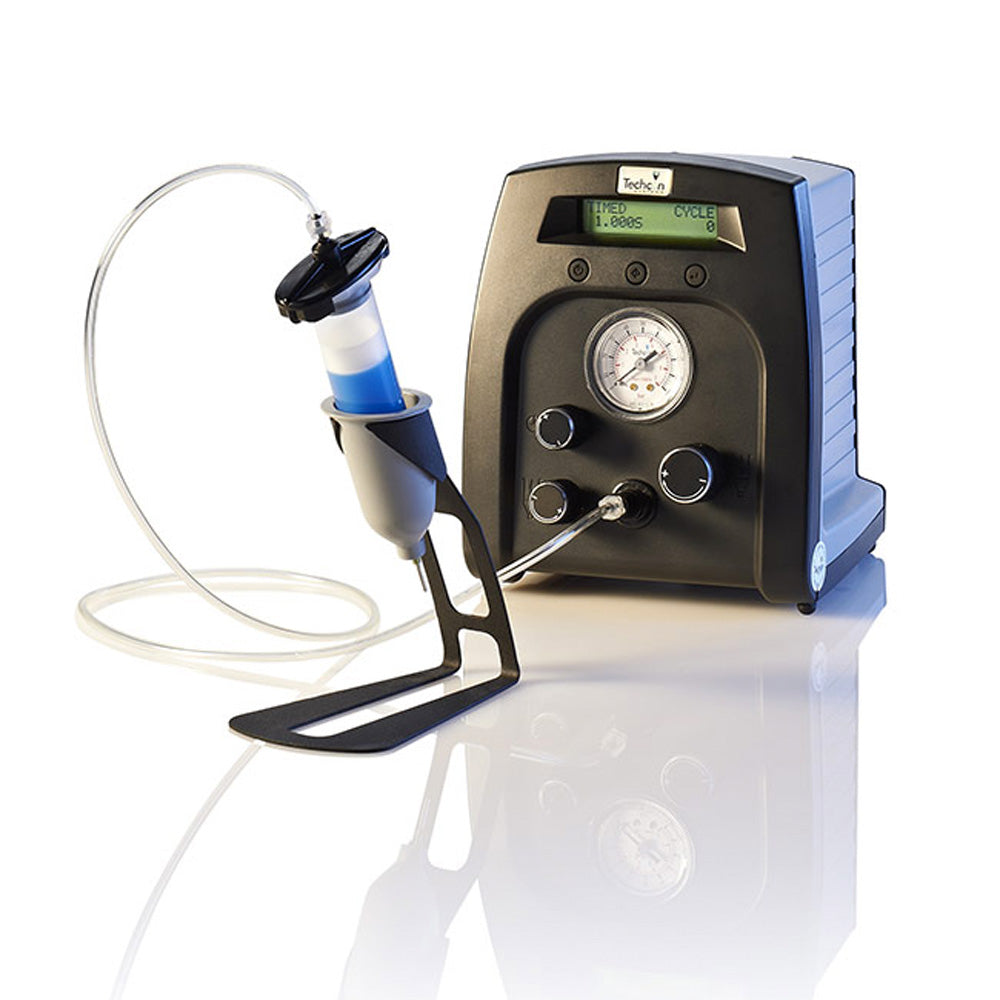

The Techcon TS250 dispensing controller pump works from 0-100 psi and is perfect for low, medium and high viscosity materials. It has a small, lightweight footprint making it great for benchtop fluid or adhesive dispensing. The TS250 has a digital timer that is controlled with a rotary knob and vacuum control to fine tune dispensing depending on the viscosity of material being used.

This system also includes a rear DB9 interface connection that can connect to a foot pedal or other device for external on/off dispensing.

Common Applications

This system can be used to dispense a huge range of materials. It works best for low to medium volume applications.

Some common applications include:

  • Dispensing solder paste on PCBA pads
  • Dispensing UV Adhesives
  • Medical device manufacturing
  • Dispensing greases for lubricating applications

Entry Level Syringe Dispensing System Specifications

Dispensing Pump Specifications

Cycle Rate:

600 cycles/minute

Timing Range:

0.020 - 60.000 seconds
Timing Repeat Tolerance: +/- 0.001%
Input Pressure: 100 psi (6.9bar) maximum
Operating Pressure TS250: 1 - 100 psi (0.07 - 6.9bar)
Dispense Modes: Timed and Purge
Meets or Exceeds:  CE, TUV-GS and NRTL

Configure Your System

Select components to build your complete dispensing system.

Techcon TS250

checkmark
Techcon TS250 Series Basic Digital Adhesive Dispenser

Techcon TS250 Series Basic Digital Adhesive Dispenser

Filter (Included With System)

Group 6 Created with Sketch.
checkmark
Techcon TSD800-6 Air Filter for TS250, TS255, TS350 and TS355

Techcon TSD800-6 Air Filter for TS250, TS255, TS350 and TS355

Syringe Nest (Included with System)

Group 6 Created with Sketch.
checkmark
Syringe Nest Holder

Syringe Nest Holder

Syringe Type

Group 6 Created with Sketch.
checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

Piston Type

Group 6 Created with Sketch.
checkmark
5 cc Wiper Piston / Pack of 50

5 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
5 cc Straight Wall Piston / Pack of 50

5 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
5 cc Easy Flow Piston / Pack of 50

5 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

checkmark
10 cc Wiper Piston / Pack of 50

10 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
10 cc Straight Wall Piston / Pack of 50

10 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
10 cc Easy Flow Piston / Pack of 50

10 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

checkmark
30-50 cc Wiper Piston / Pack of 50

30-50 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
30-55 cc Straight Wall Piston / Pack of 50

30-55 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
30-55 cc Easy Flow Piston / Pack of 50

30-55 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

Needles and Tips (Included with System)

Group 6 Created with Sketch.
checkmark
Needle and Tip Sample Kit for Fluid and Adhesive Dispensing

Needle and Tip Sample Kit for Fluid and Adhesive Dispensing

Your System

Low Cost Benchtop Syringe Fluid Dispensing System - For All Viscosities

Components

$   On Sale
$550.00
