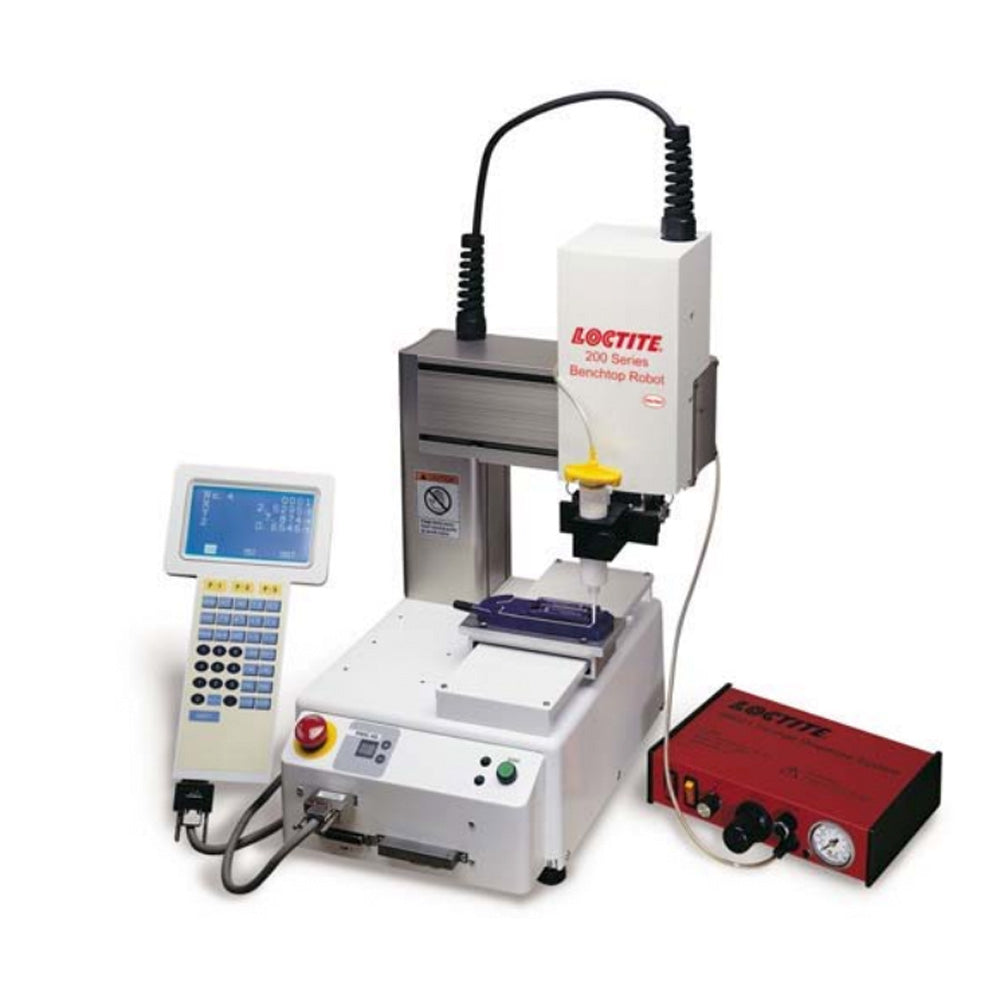

Loctite 503 Benchtop Fluid Dispensing Robot - All Configurations

When to Use the Loctite 503 Benchtop Dispensing Robot

The Loctite 503 benchtop dispensing robot provides a simple, powerful way to automate the dispensing of a wide range of adhesive and fluid materials. It provides a larger platform than many desktop robots (510mm X 510mm X 150mm XYZ) and is fully compliant with the Robotics Industry Association safety guidelines. Use the Loctite 503 benchtop robot for gasketing, potting, product assembly, laboratory work and more.

SKU: LOCTITE 98602

$   On Sale
$22,775.00
Buying in bulk? Request a volume quote

More Information on the Loctite 503 Benchtop Dispensing Robot

The LOCTITE® 500 Series Benchtop Robot has a 510 by 510 mm range of operation. This robot is available to meet your process requirements in eight different configurations offering: 3 or 4 axes, 110 or 220 V power, standard or CE certified. The simultaneous control over all axes provides for 3D linear and arc interpolations that are required for complicated dispensing processes. This unit is fully compliant with RIA (Robotic Industry Association) safety guidelines. Programming accessories, dispensing equipment, integration cables and mounting hardware are sold separately. Loctite has special application software that simplifies programming of the robot.

Loctite 503 Robot Features

  • Integrated solution - plug and play
  • Low cost operation and ownership
  • Compact size
  • Application specific software
  • Teach point programming
  • 255 program, 30,000 point memory
  • Wide variety of mounting hardware available

Loctite 503 Benchtop Robot Specifications

Attribute

Value

Number of controllable axes

3 to 4

Range of operation

X axis

510 mm

Y axis

510 mm

Z axis

150 mm

R axis

360

Portable weight

Work Surface

11.0 kg

Tool Head

6.0 kg

Speed

PTP (X,Y)

8 - 800 mm/s

PTP (Z)

3.2 - 320 mm/s

PTP (R)

8 – 800 /s

CP (X,Y,Z)

0.1- 800 mm/s

Repeatability accuracy

X, Y, Z axis

0.01 mm

R axis

0.02

CPU

32 bit

Control method

Point to Point or Continuous Path

Drive method

5-phase stepping motor

I/O

16

Program capacity

255 programs

Data memory capacity

30,000 points

Dimensions

Width

676 mm

Depth

728 mm

Height, 3 Axis

799 mm

Height, 4 Axis

890 mm

Weight

42 kg

Power source

110 or 220V / 50-60 Hz

Consumption current

200 VA

Working environment

Temperature

0 - 40C

Humidity

20 - 95% RH

Loctite 503 Benchtop Dispensing Robot Brochures and Data Sheets

Data Sheet
