Dual Handheld Precision Spray System for Conformal Coating

Dual Handheld Precision Spray System for Conformal Coating Overview

A versatile, dual-applicator manual spray system designed for conformal coating applications, offering both atomized spray and bead dispensing in a single system. This multi-functional setup allows operators to switch between spray and bead application seamlessly, making it ideal for selective conformal coating of PCBs (Printed Circuit Boards) and other electronic components. Available with 2-liter and 2-gallon tank options, it features handheld pneumatic activation for precise fluid control and multiple spray/bead configurations to meet specific application requirements.

Low-Pressure Atomized Spray & Precision Bead Dispensing

This system combines low-pressure, atomized spray technology for wide-area coating with precision bead dispensing for selective application near keep-out zones. The adjustable flow control ensures fine-tuned fluid delivery, while the divorced valve design prevents contamination and enhances system longevity.

Fluid Supply Options

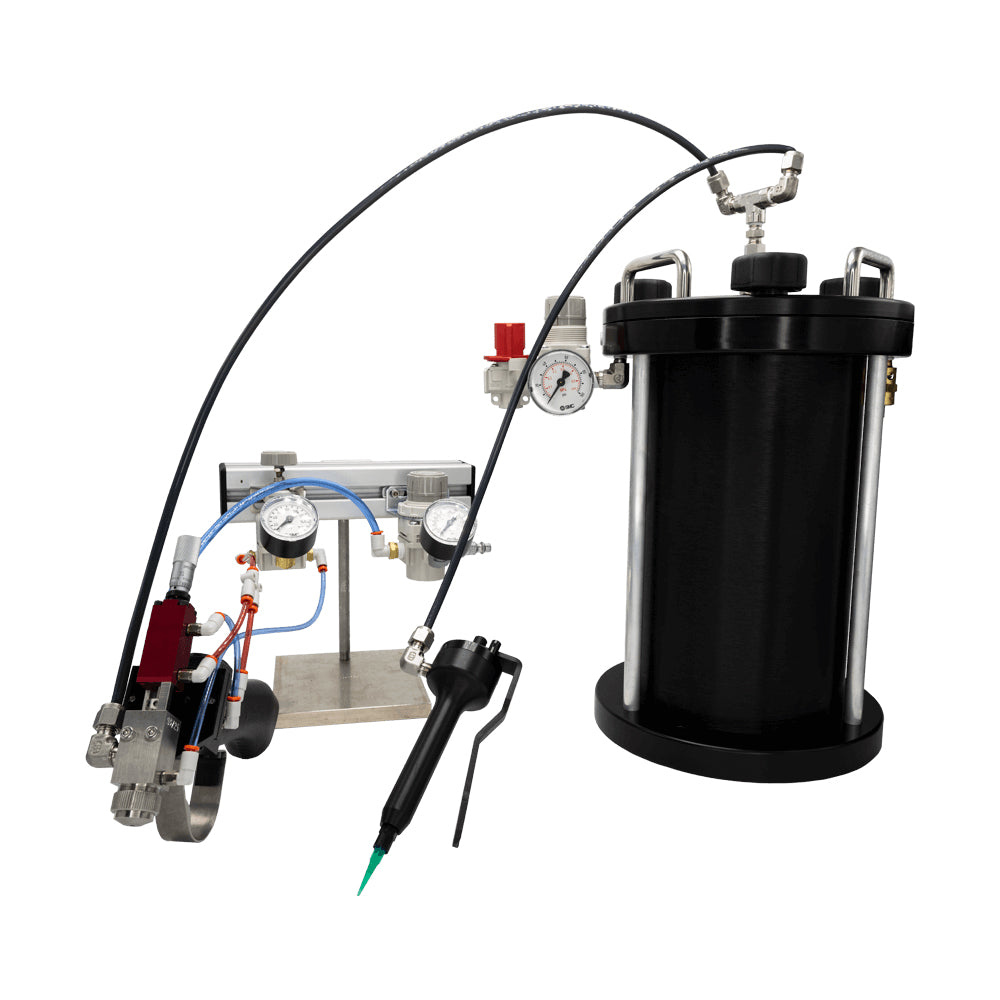

• 2-Liter Pressure Tank: Holds 1L or 2L bottles, preventing material contamination from air or moisture.

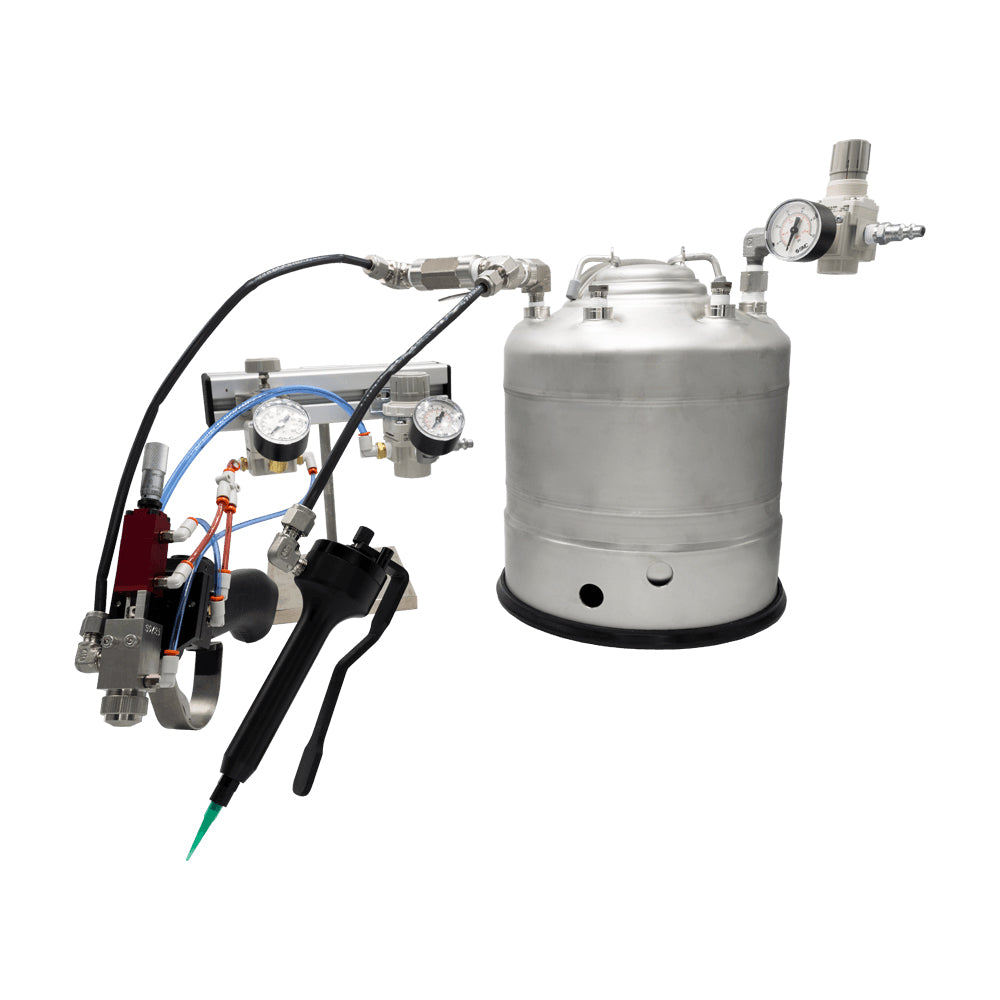

• 2-Gallon Pressure Tank: Stainless steel tank designed for bulk fluid spraying and dispensing applications.

Features and Benefits

• Two-in-One Coating System: Combines spray and bead dispensing for selective coating applications.
• Multiple Fluid Compatibility: Works with acrylics, silicones, urethanes, and solvent-based conformal coatings.

• Adjustable Spray & Bead Patterns: Fine-tune spray width from 0.25 in – 2 in and bead size for optimal control.

• Optional Remote Activation: Supports I/O cable for automated system integration.

• Fume Extraction Compatibility: Compatible with the FX800 fume extraction system for a cleaner workspace.

System Specifications

• Spray & Dispense Mechanism: Dual-Function Atomized Spray & Bead Dispensing System

• Spray Pattern Diameter: 6.35 mm - 50.8 mm (0.25 in - 2 in)

• Dispense Outlet: Luer Lock Adapter

• Controller: Digital Benchtop Controller (foot pedal operation)

• Fluid Viscosity Range: 1 cps - 20,000 cps

• Compatible Fluids: Conformal Coatings
• Wetted Components: Stainless Steel, Teflon, Kalrez, Delrin, Polyethylene

• Air Requirement: 80 psi (5.5 bar)

• Power Requirements: 115V/230V, 50-60 Hz
