Advanced Benchtop Syringe Fluid Dispensing System - For Low Viscosities

  • Benchtop Syringe Dispensing Pump System for Low Viscosity Materials
  • Digital Controller and Pump Syringe Dispensing System

When To Use the Advanced Syringe Dispensing System for Low Viscosity Materials

This low cost, easy-to-use dispensing system is perfect for automating fluid and adhesive dispensing applications that involve low viscosity (thin) materials. This system provides a large LCD screen, range of syringe tube and piston options and can be programmed for automation.

This system works with 3cc, 5cc, 10cc, 30cc and 50cc syringes.

Syringe Dispensing System Includes

  • Techcon TS355 Simple Air Pressure Dispensing Controller
  • Foot Switch
  • 50 Pack of Syringe Barrels (Clear, Amber or Black)
  • 50 Pack of Syringe Pistons (Wiper, Straight or Easy Flow)
  • Nozzle Tip Starter Pack (Additional Options Available)

Questions? Contact one of our dispensing experts for advice on your dispensing application.

drop-silhouette Created with Sketch. Used to dispense

  • Activators
  • Adhesive Pastes
  • Alcohol
  • Anaerobics
  • Cyanoacrylates
  • Epoxies
  • Inks
  • UV Cure Adhesive (Liquid)

glue Created with Sketch. Common applications

  • Beads
  • Lines and Beads
  • Medical Device
  • Potting and Encapsulating
  • Product Assembly

More Information on the Advanced Syringe Dispensing System for Low Viscosity Fluids

This simple to use dispensing system is for low viscosity adhesive and fluid materials. It can be programmed for varied sequences or for individual shots. This system operates at 0-15psi to accurately dispense any low viscosity material.

About the Dispensing Controller Pump

The TS355 Series is equipped with a digital timer, pressure and vacuum read-out on a large LCD screen. The user friendly firmware provides an option of programming up to 10 varied, sequenced or individual shots. The system has a user programmable manual (purge) and automatic dispense cycle settings (program and time) and the features a ''Teach Mode'' for determining the dispensing time required when the dispensing output is unknown.

This system also includes a rear DB9 interface connection that can connect to a foot pedal or other device for external on/off dispensing.

Common Applications

This system can be used to dispense a huge range of materials. It works best for low to medium volume applications.

Some common applications include:

  • Dispensing UV Adhesives
  • Dispensing Cyanoacrylates
  • Dispensing Inks and other low viscosity materials

Syringe Pump Specifications

Cycle Rate: 1200 cycles/minute
Timing Range: 0.008 - 60.000 seconds
Timing Repeat Tolerance: +/- 0.001%
Input Pressure: 100 psi (6.9bar) maximum
Operating Pressure TS355: 0 - 15psi (0 - 1.0bar)
Dispense Modes: Timed, Interrupt, Teach and Purge
Meets or Exceeds: CE, TUV-GS and NRTL

Additional Features of the Syringe Pump

  • Universal power supply with snap-on plug for worldwide use
  • User programmable manual purge and automatic dispense cycle settings (program and time)
  • 10 programmable memories for storing and recalling most frequently used dispensing cycle timing
  • ''Teach Mode'' for determining the dispensing time required when dispensing output is unknown
  • Digital timing from 0.008-60.000 seconds
  • +/- 0.001% Timing repeat tolerances
  • Digital pressure and vacuum read out
  • Adjustable vacuum-driven ''suck back'' to control material ''tailing'' and waste
  • Stable to conserve work space when multiple TS-350/355 units are used together.
  • Tactile-responsive user programming buttons
  • Large, clearly marked air pressure and vacuum control knobs
  • Digitally displayed pressure in ''psi'' or ''bar''
  • High visibility, 20 x 4 LCD display panel with back lighting
  • Accessories included: Universal power adapter, foot switch, syringe barrel stand, 10cc receiver head, air hose with fittings, cable holder and sample dispensing tips

Data Sheets and User Guides

User Guide

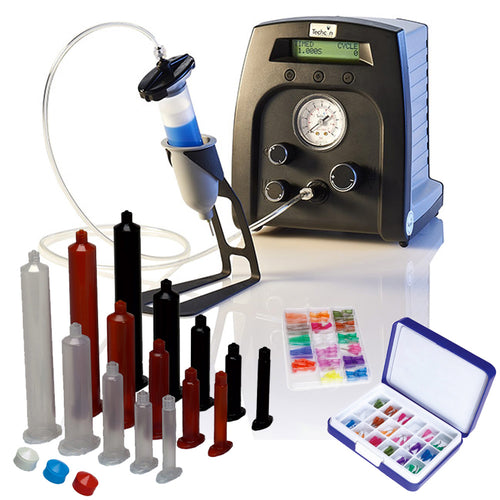

Configure Your System

Select components to build your complete dispensing system.

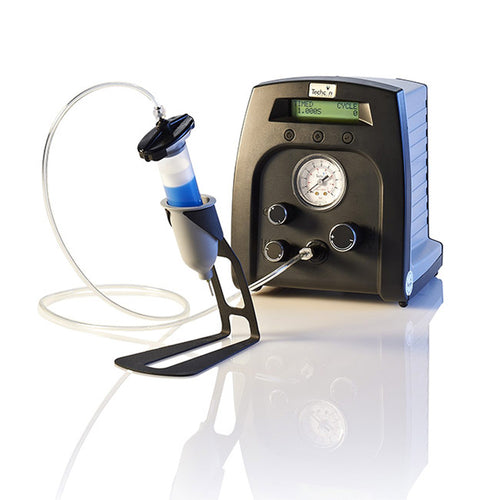

Techcon TS255 Pump/Controller (Included with System)

Group 6 Created with Sketch.
checkmark
Techcon TS255 Series Basic Digital Adhesive Dispenser

Techcon TS255 Series Basic Digital Adhesive Dispenser

Perfect for low viscosity fluids and adhesives. Pressure range of 0-10 psi.

Filter (Included With System)

Group 6 Created with Sketch.
checkmark
Techcon TSD800-6 Air Filter for TS250, TS255, TS350 and TS355

Techcon TSD800-6 Air Filter for TS250, TS255, TS350 and TS355

Syringe Nest (Included with System)

Group 6 Created with Sketch.
checkmark
Syringe Nest Holder

Syringe Nest Holder

Keep your dispensing area clean and organized with this syringe holder.

Syringe Type

Group 6 Created with Sketch.
checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Natural Clear Single Component Syringe Barrels - All Sizes

Little or no UV protection

checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Amber Single Component Syringe Barrels - All Sizes

UV protection up to 520nm

checkmark
5 cc Syringe Barrel / Pack of 50

5 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

checkmark
10 cc Syringe Barrel / Pack of 50

10 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

checkmark
30 cc Syringe Barrel / Pack of 50

30 cc Syringe Barrel / Pack of 50

Black Single Component Syringe Barrels - All Sizes

Total UV blocking

Piston Type

Group 6 Created with Sketch.
checkmark
5 cc Wiper Piston / Pack of 50

5 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
5 cc Straight Wall Piston / Pack of 50

5 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
5 cc Easy Flow Piston / Pack of 50

5 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

checkmark
10 cc Wiper Piston / Pack of 50

10 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
10 cc Straight Wall Piston / Pack of 50

10 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
10 cc Easy Flow Piston / Pack of 50

10 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

checkmark
30-50 cc Wiper Piston / Pack of 50

30-50 cc Wiper Piston / Pack of 50

Techcon 700 Series White Wiper Piston - All Sizes

Wiper pistons provide a complete seal and are good for low viscosity fluids

checkmark
30-55 cc Straight Wall Piston / Pack of 50

30-55 cc Straight Wall Piston / Pack of 50

Techcon 700 Series Red Straight Wall Piston - All Sizes

Loose fitting straight wall pistons prevent stringing with high viscosity materials

checkmark
30-55 cc Easy Flow Piston / Pack of 50

30-55 cc Easy Flow Piston / Pack of 50

Techcon 700 Series Blue Easy Flow Piston - All Sizes

Easy flow pistons require less pressure to dispense

Needles and Tips

Group 6 Created with Sketch.
checkmark
Needle and Tip Sample Kit for Fluid and Adhesive Dispensing

Needle and Tip Sample Kit for Fluid and Adhesive Dispensing

Your System

Advanced Benchtop Syringe Fluid Dispensing System - For Low Viscosities

Components

$   On Sale
$1,045.00
