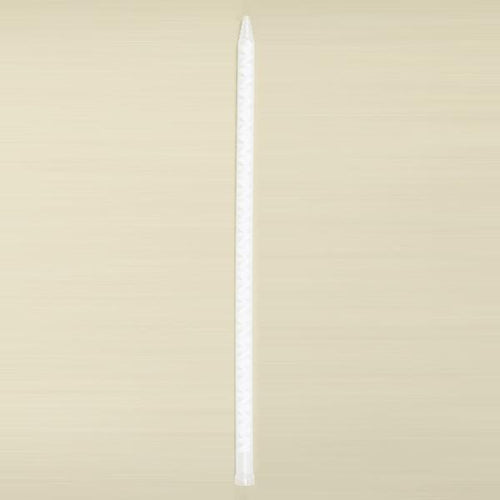

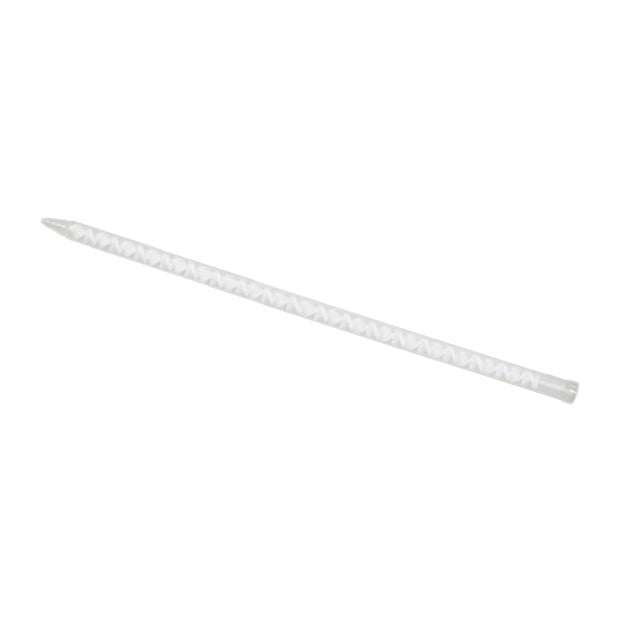

When to Use the 161-236 Adhesive Static Mixer Nozzle

The 161-236 disposable static mixer is a high quality 36 element nozzle made from high quality polypropylene (casing) and high strength polyacetal (elements). This mixer has a bell connection, stepped tip and works great with 1:1 and 2:1 adhesives, especially lower viscosity adhesives or with meter mix machines.

Compare To:

• TAH 161-236
• Nordson 7701038

161-236 Static Mixer Specifications

• Mixing Elements: 36
• Inner Diameter (ID): ~13mm
• Outer Diameter (OD): ~16.7mm
• Length: ~420mm or 16.55 Inches
• Connection Type: Bell

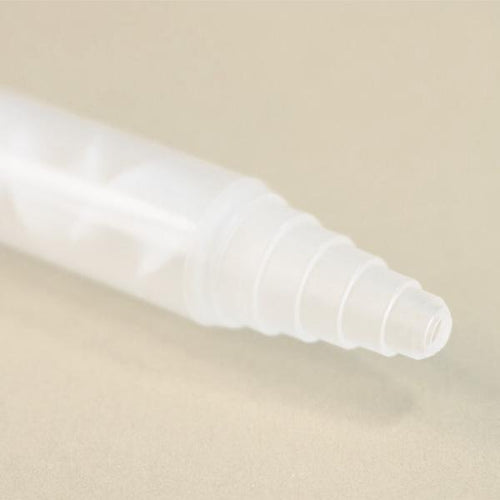

• Nozzle Type: Stepped
