FANUC CRX Food Grade Cobots for Sanitary Adhesive Dispensing
FANUC CRX Series Food Grade Cobots for Adhesives & Sealants Overview

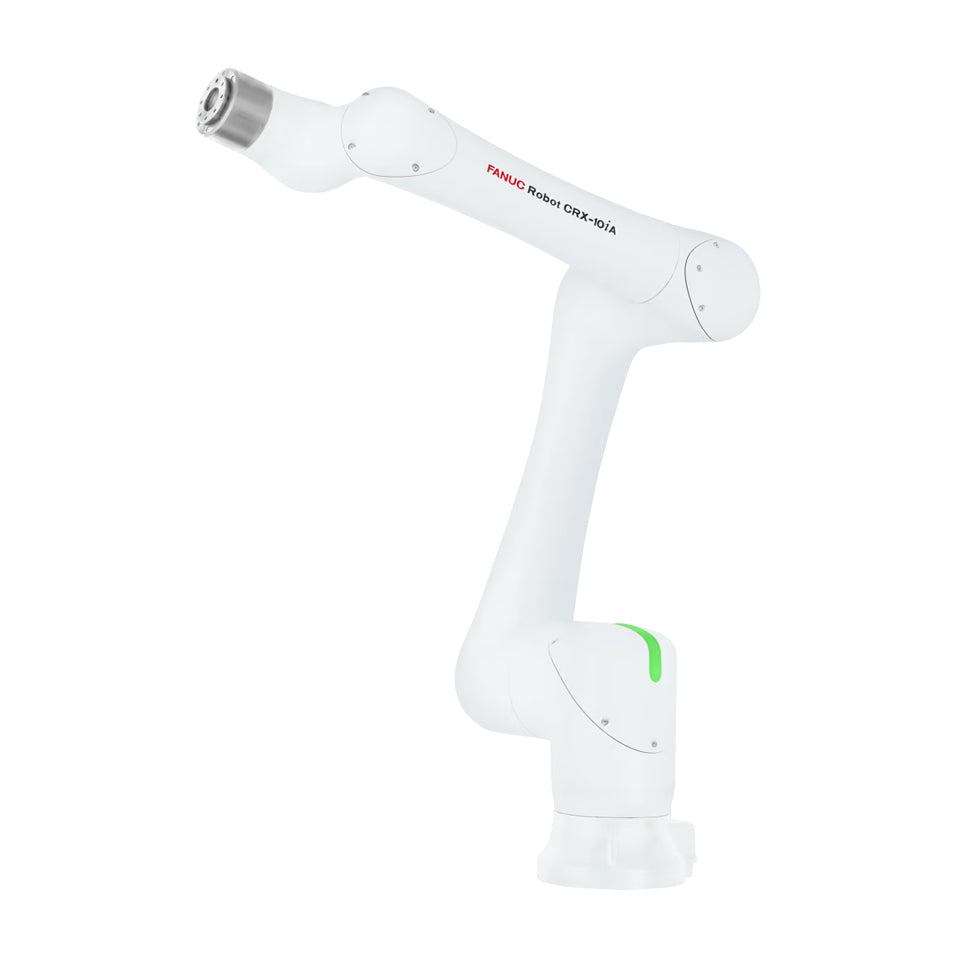

FANUC CRX food-grade collaborative robots (cobots) combine the trusted reliability of the CRX Series with hygienic design features tailored for food and beverage manufacturing environments. With models ranging from 11 lbs (5 kg) to 66 lbs (30 kg) in payload capacity and up to 74.4 in (1,889 mm) of reach, these cobots are ideal for food-safe adhesive applications such as carton sealing, equipment assembly, and sanitary packaging. Each food-grade CRX model features a white epoxy-coated exterior, corrosion-resistant wrist, and NSF H1 food-grade grease, ensuring compliance with industry sanitation standards while maintaining intuitive programming and zero-maintenance operation.
Adhesive Integration & Installation Options
- Flexible Mounting: Mounts to benchtops, mobile carts, walls, ceilings, or floor stands
- Sanitary Workstation Compatibility: Suitable for cleanroom-grade carts and stainless-steel workstations
- Bulk Material Support: Handles adhesive supply from 5-gallon (20 liter) pails to 255-gallon (965 liter) totes
- Food-Safe System Integration: Compatible with hot melt tanks, pressure pots, and 2K metering systems designed for sanitary use
- Dispensing Head Options: Bead, dot, swirl, spray, or syringe configurations available
- Vision-Enabled Accuracy: Integrates with computer vision systems for inspection and position correction
- Tool Changer Support: Enables multi-step workflows with automatic tool changers
- Hygienic Automation Ready: Plug-and-play integration with food-grade dispensing tools and automation equipment
CRX Food Grade Cobot Features and Benefits
- Food Grade Construction: White epoxy coating, corrosion-resistant wrist, and NSF H1 food-grade grease
- Intuitive Programming: Drag-and-drop interface with optional tablet teach pendant
- No Coding Required: Hand-guided teaching allows operators to program by positioning the arm
- Flexible Mounting: Install on floors, walls, ceilings, carts, or stainless workstations
- Collaborative & Safe: ISO 10218-1 and ISO 13849-1 certified with push-to-escape functionality
- 8 Years Maintenance-Free: Zero maintenance design reduces long-term costs and downtime
- Compact Controller: Uses FANUC’s space-saving R-30iB Mini Plus controller
- Tool & Vision Compatibility: Supports multi-tool changers and computer vision systems
- Wide Reach & Payload Options: From 11 lbs (5 kg) to 66 lbs (30 kg), up to 74.4 in (1,889 mm) of reach
- U.S.-Based Support & Global Reliability: Backed by FANUC’s trusted service network
Specifications
- Series: CRX
- Version: iA Food Grade
- Max. Load Capacity: 11–66 lbs (5–30 kg)
- Max. Reach: 39.1–74.4 in (994–1,889 mm)
- Controlled Axes: 6
- Protection: IP67 (body and wrist), corrosion-resistant wrist, food-grade materials
- Power Supply: 100–120V / 200–240V
- Mounting Method: Floor, angle, inverted
Please contact us for detailed model specifications or application guidance.
Other FANUC Cobot Models
Need Help Configuring Your Food Grade CRX Cobot?
Whether you're automating adhesive dispensing in a sanitary environment or exploring robotic applications in packaging, assembly, or inspection, FANUC CRX food-grade cobots offer reliable performance and hygienic design. Contact us today for help selecting the right model and building a complete system tailored to your production needs.
