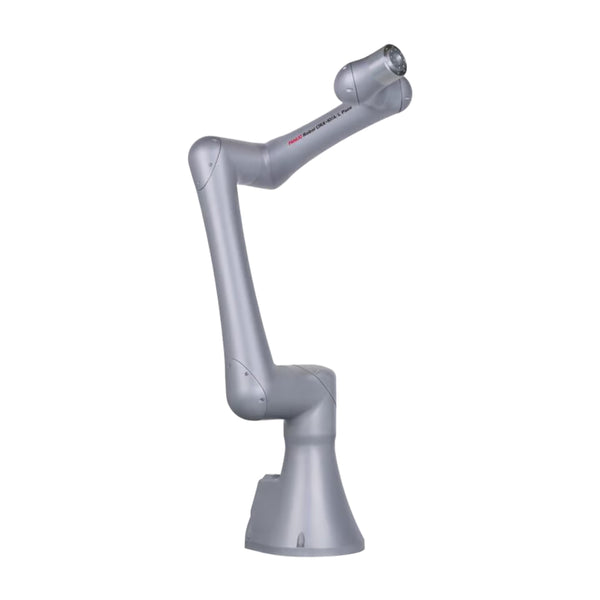

FANUC CRX-10iA/L Paint Cobot for Coatings & Spray Applications Overview

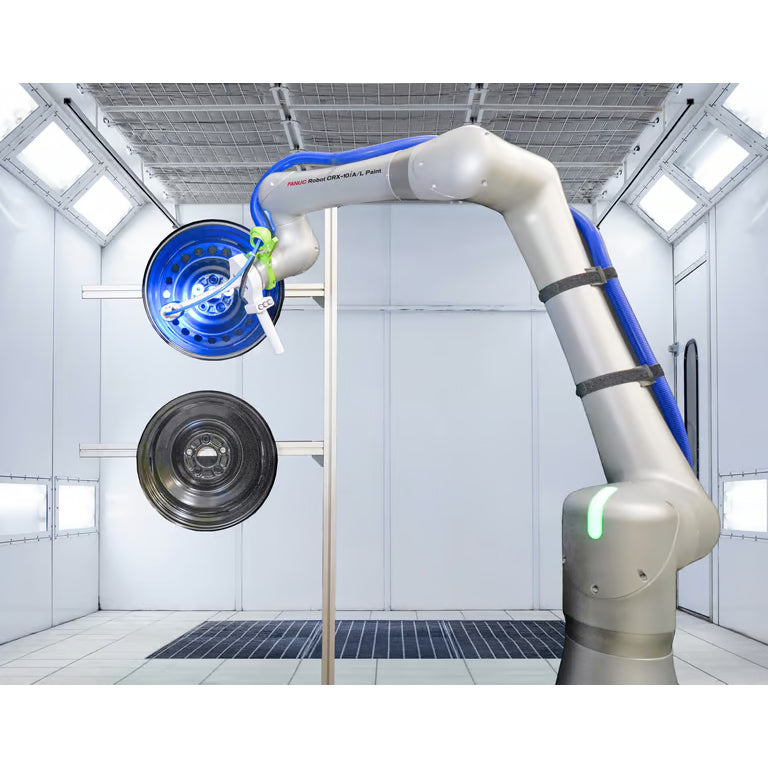

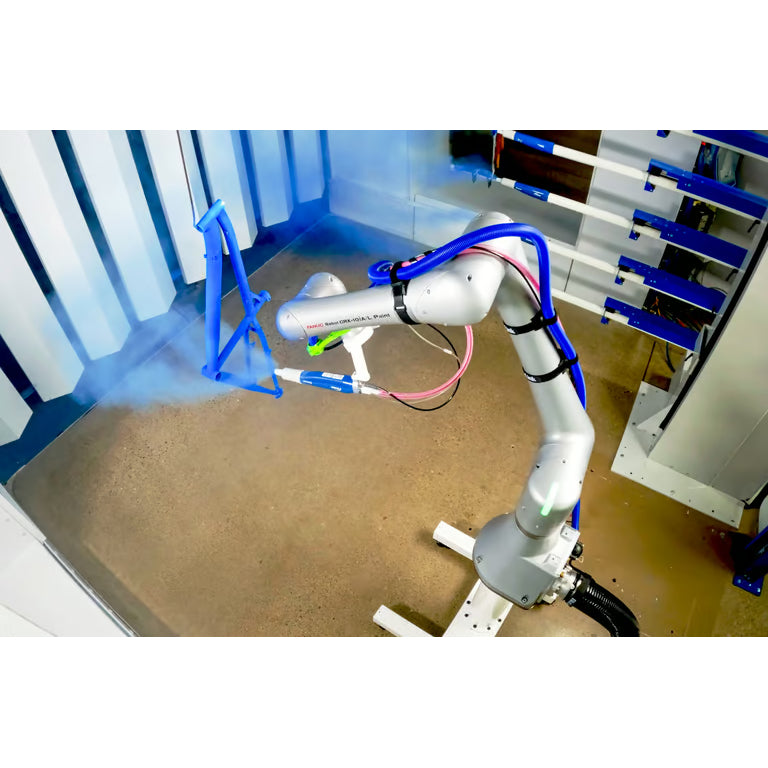

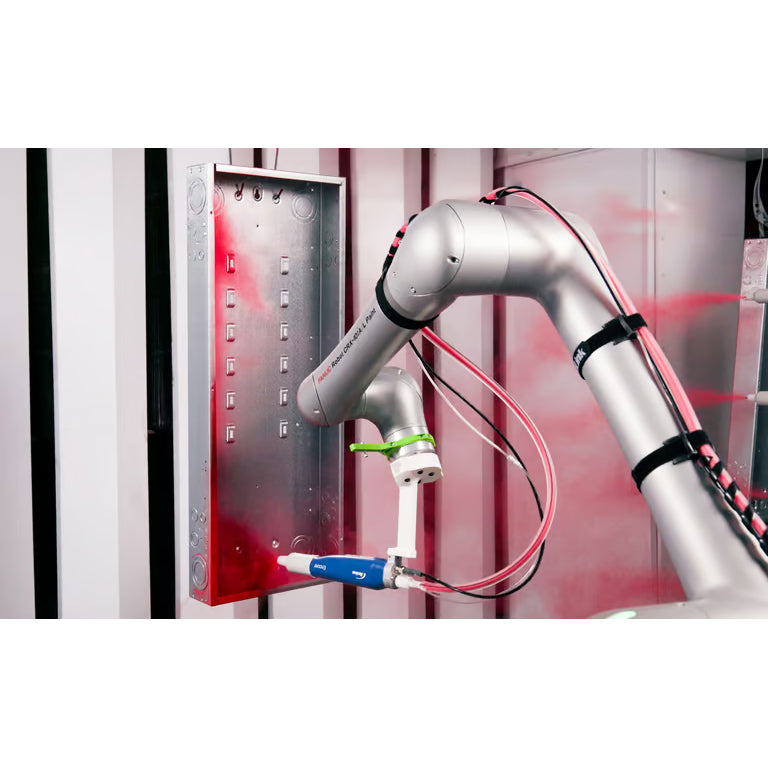

The FANUC CRX-10iA/L Paint collaborative robot (cobot) is engineered for painting and spray-based automation in explosion-proof environments. Built on the proven CRX platform, this variant includes a paint-compatible coating and is designed for seamless integration with FANUC’s painting software and third-party spray equipment. With a payload capacity of 22 lbs (10 kg) and extended reach of 55.8 in (1,418 mm), it delivers precise, repeatable motion for tasks like applying surface primers, RTV silicones, anti-corrosive coatings, or other specialty fluids in regulated manufacturing settings.
Coating Integration & Installation Options
- Flexible Mounting: Mounts to benchtops, mobile carts, walls, ceilings, or floor stands
- Explosion-Proof Compatibility: Integrates with certified spray systems and atomizing nozzles
- Fluid Delivery Options: Supports pressure pots, fluid regulators, and precision spray valves
- Vision System Integration: Compatible with vision-guided software for pattern accuracy
- Spray Pattern Control: Supports bead, fan, or mist spray configurations
- Tool Changing: Optional automatic changers allow switching between spray heads or cleaning tools
- Specialty Applications: Ideal for RTV silicones, primers, and protective coatings
CRX-10iA/L Paint Cobot Features and Benefits
- Paint-Compatible Design: Coated for use in painting, powder, and liquid spray environments
- Certified for Hazardous Environments: Safe for use in explosion-rated environments when integrated with certified equipment
- Intuitive Programming: Drag-and-drop interface with optional tablet teach pendant
- No Coding Required: Lead-through teaching allows operators to manually guide the cobot
- Flexible Mounting: Install on floors, walls, ceilings, carts, or integrated spray lines
- Collaborative & Safe: ISO 10218-1 and ISO 13849-1 certified with push-to-escape safety features
- 8 Years Maintenance-Free: Long-term reliability with zero required maintenance
- Compact Controller: Runs on FANUC’s space-saving R-30iB Mini Plus controller
- Tool & Vision Compatibility: Supports auto tool changers and vision-guided spray control
- Extended Reach: 22 lbs (10 kg) payload and 55.8 in (1,418 mm) reach—ideal for large or complex parts
Specifications
- Series: CRX-10
- Version: iA/L Paint
- Max. Load Capacity: 22 lbs (10 kg)
- Max. Reach: 55.8 in (1,418 mm)
- Controlled Axes: 6
- Repeatability: ±0.0016 in (±0.04 mm)
- Weight: 104 lbs (47 kg)
- Protection: IP67 (body and wrist)
- Power Supply: 100–120V / 200–240V
- Mounting Method: Floor, angle, inverted
Please contact us for detailed model specifications or application guidance.
