Epoxy Dispensing System for Delaminated Bridge Deck Repair (AST RMP 317-BR)

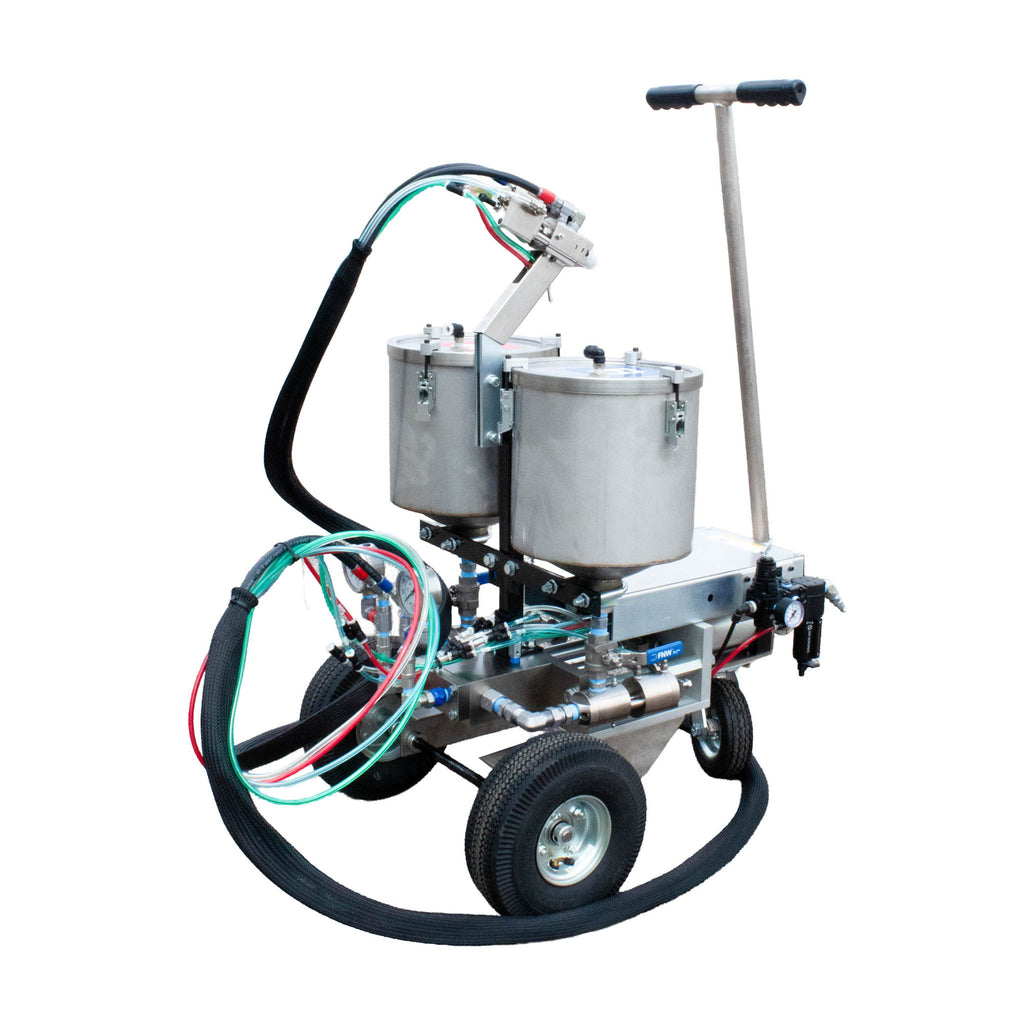

AST RMP 317-BR Pneumatic Dispensing System for Delaminated Bridge Deck Repair

The AST RMP 317-BR is a contractor-ready adhesive dispensing system engineered specifically for epoxy injection in delaminated bridge deck repair. Built with rugged stainless steel construction and powered entirely by pneumatic controls, this dispensing equipment eliminates fragile electronics that can fail under tough jobsite conditions. The RMP 317-BR delivers reliable, accurate epoxy application for bridge rehabilitation projects while offering a simple, cost-effective solution for bridge infrastructure repair.

RMP 317-BR Bridge Repair Equipment Advantages

• Contractor-Friendly Simplicity: Pneumatic operation eliminates complex electronics, reducing downtime and making the system easy to use in the field.
• Rugged Stainless Steel Construction: Built to withstand transport, jobsite handling, and outdoor bridge deck repair conditions.
• Accurate Epoxy Dispensing: Delivers precise mix ratios of 1:1, 2:1, or 4:1 for consistent chemical performance and dependable structural repairs.
• High-Output Performance: Flow rates up to 20 ounces per minute support efficient injection across large bridge deck areas without sacrificing control.
• Adjustable Shot Size: Configurable stroke adjustment from 20–100% provides flexibility for both small-scale cracks and wide delamination zones.
• Cost-Effective Solution: Provides industrial-grade performance at a lower cost of ownership compared to more complex dispensing systems.

Technical Specifications

• Model: RMP 317-BR
• Machine Type: Fixed ratio/metering dispensing; RMP with changeable ratios
• Output: Up to 20 oz per minute
• Ratio Range: Standard fixed ratios from 1:1 to 4:1; other ratios available
• Viscosity Range: Up to 30,000 cps
• Containers: 2.5 gallons each side, stainless steel
• Cycle Rate: Up to 20 cycles per minute
• Dimensions: 14” L x 24” W x 38” H, 60 lbs.
• Metering Pumps: RMP rod pumps, positive displacement; meter-mounted horizontal
• Pump Sizes: Up to 5/8” Dia. x 4” stroke; max
• Services Required: Clean, dry, compressed air at 90 psi; up to 4 cfm
• Shot Size Adjustment: 20–100% stroke
• Standard Controls: On/Off; pressure regulation
• Drive System: 3” Dia. x 4” stroke air cylinder
• Applicators: AST handheld; manual dual port manifold
• Mixer: Disposable, plastic, static
• Hoses: (2) ¼” x 12-1/2 ft.
• Options: Automatic dispense valve, Heated tanks

Applications and Industries

• Delaminated Bridge Deck Repair
• Highway and Transportation Infrastructure
• Parking Structures and Elevated Slabs
• Civil and Structural Concrete Rehabilitation
• DOT and Municipal Repair Projects

Common Compatible Epoxy Materials for the RMP 317

• Adhesives Technology ASF-1000
• Adhesives Technology CRACKBOND 2100 MV
• Adhesives Technology CRACKBOND LR-321 LV
• Adhesives Technology CRACKBOND LR-321 SLV
• Adhesives Technology SLV-302
• Adhesives Technology ULTRABOND ASF-2000
• Conspec Spec Bond 50
• Conspec Spec Bond 100
• Conspec Spec Bond 200
• Dayton Superior All Weather J51AW
• Dayton Superior Sure Anchor J50
• Dayton Superior Sure Anchor J51
• Dayton Superior Sure Bond J58
• MAPEI Planibond Hi-Mod Gel
• Pecora Dynapoxy EP-420
• Pecora Dynapoxy EP-430 Fast
• Pecora Dynapoxy EP-450
• Permagile Plastic Armour Type "M"
• Rescon Technology Niklepoxy Product No. 19
• Sika Sikadur 31 Hi-Mod Gel
• Sika Sikadur 32 Hi-Mod
• Sika Sikagard 62 High-Build
• Unitex Pro-Poxy 50
• Unitex Pro-Poxy 100
• Unitex Pro-Poxy 200
• Unitex Pro-Poxy 300
• Unitex Pro-Poxy 300 FS
• Unitex Pro-Poxy 400
• Universal Form Clamp Unibond LV
• Universal Form Clamp Unibond MV
• Universal Form Clamp Unibond Gel Paste
• Viking Paints TE 2501
• Viking Paints TE 3008
• Viking Paints Tenaco
• W.R. Meadows REZI-WELD LV STATE

Contact us to confirm compatibility with your preferred bridge deck repair material.
