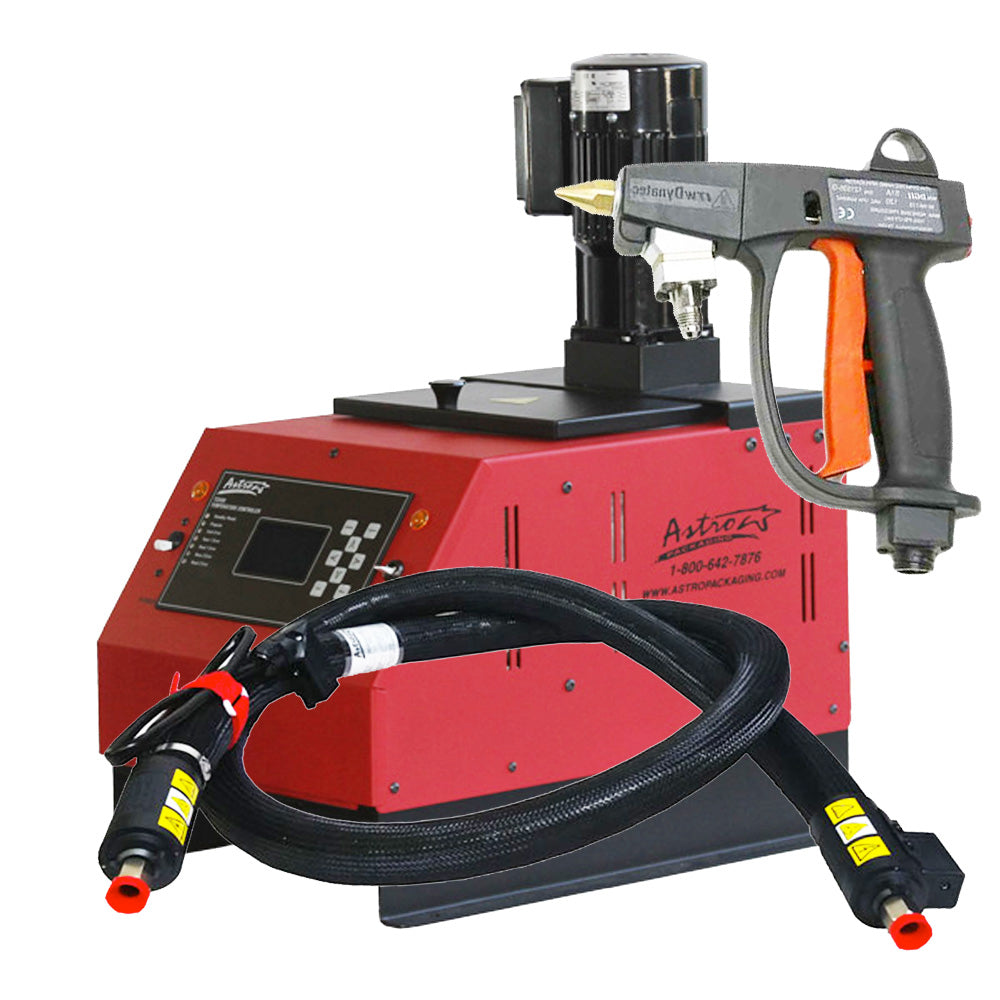

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank

  • Premium 240V bulk hot melt system with tank, hose, gun and nozzle
  • Braided hot melt hose
  • DG2 bulk hot melt handgun - bead dispense

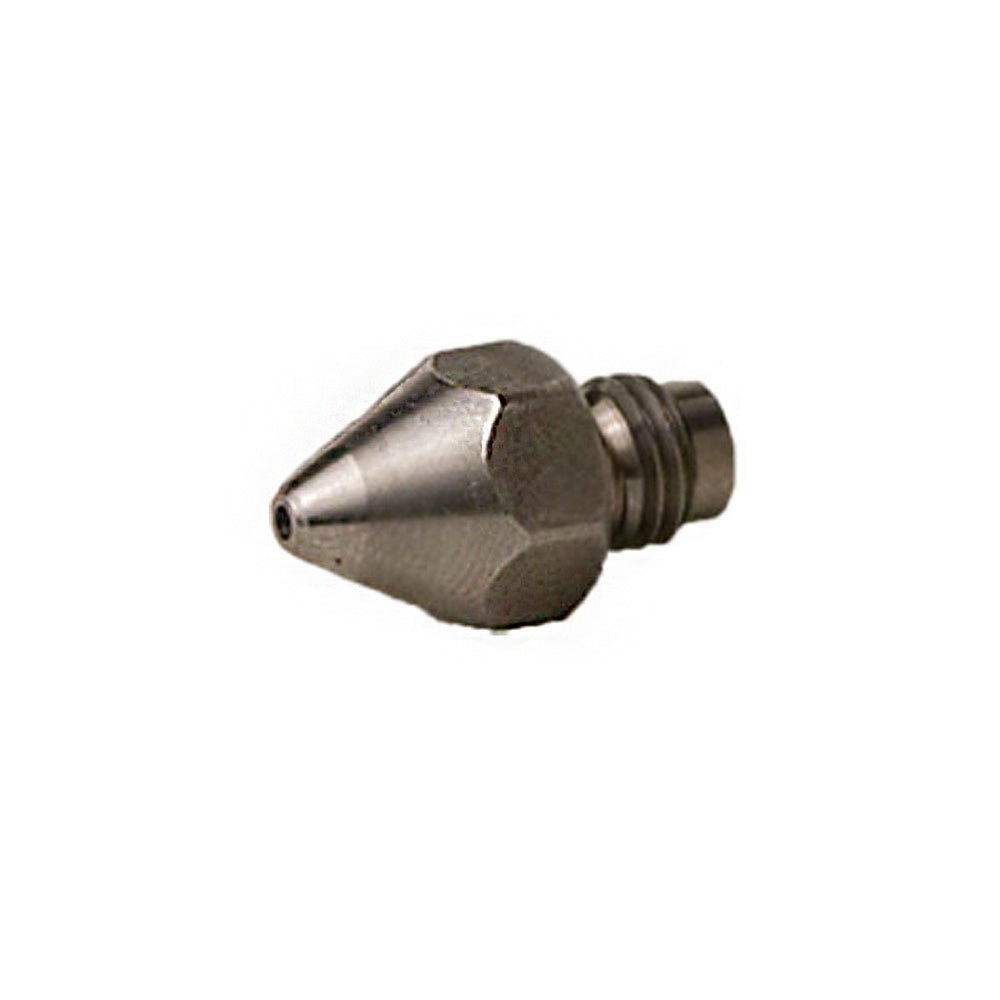

  • Standard hot melt nozzle for handgun

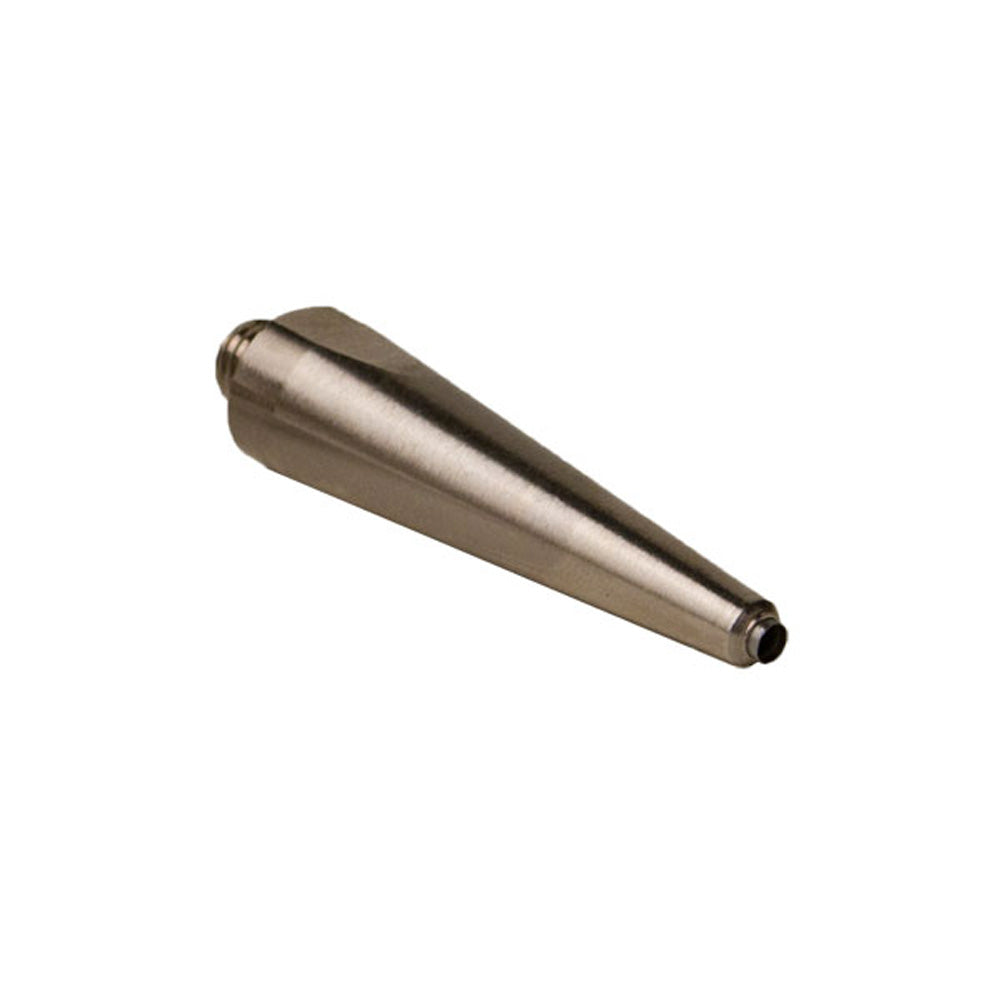

  • Extension nozzle for bulk hot melt handgun

When to Use This 240V Premium Hand-Held Bulk Hot Melt Dispensing System

This premium bulk hot melt system uses the incredibly reliable 240V SS10 bulk hot melt tank with a braided DG2 heated hose and handgun. With a variety of nozzles sizes, this hot melt system can be used for a wide range of applications and is incredibly easy to set up and use. Use this system for high volume dispensing of a wide range of hot melt adhesives including EVA's, Metallocene's, APAO's and pressure sensitive adhesives (PSA's).

Questions on this hot melt dispensing system or need help with your hot melt application? Contact one of our dispensing experts for answers to all of your dispensing questions.

drop-silhouette Created with Sketch. Used to dispense

  • Bulk Hot Melt
  • EVA Hot Melt
  • Metallocene Hot Melt
  • Polyamide Hot Melt

glue Created with Sketch. Common applications

  • Lines and Beads
  • Packaging
  • Product Assembly

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank — Overview

Customize a Simple, Powerful Bulk Hot Melt Dispensing System for Standard 240V Power

This bulk hot melt system can be easily configured to meet your dispensing needs. We have made sure all system components work flawlessly together and are all the highest quality the industry has to offer. This bulk hot melt dispensing system supports 1 or 2 hoses, has two premium gun options and

Kit Includes

  • Astro SS10 Bulk Hot Melt Tank - 240V Version
  • Hot Melt Handgun (Rotary Swivel or Ball Swivel)

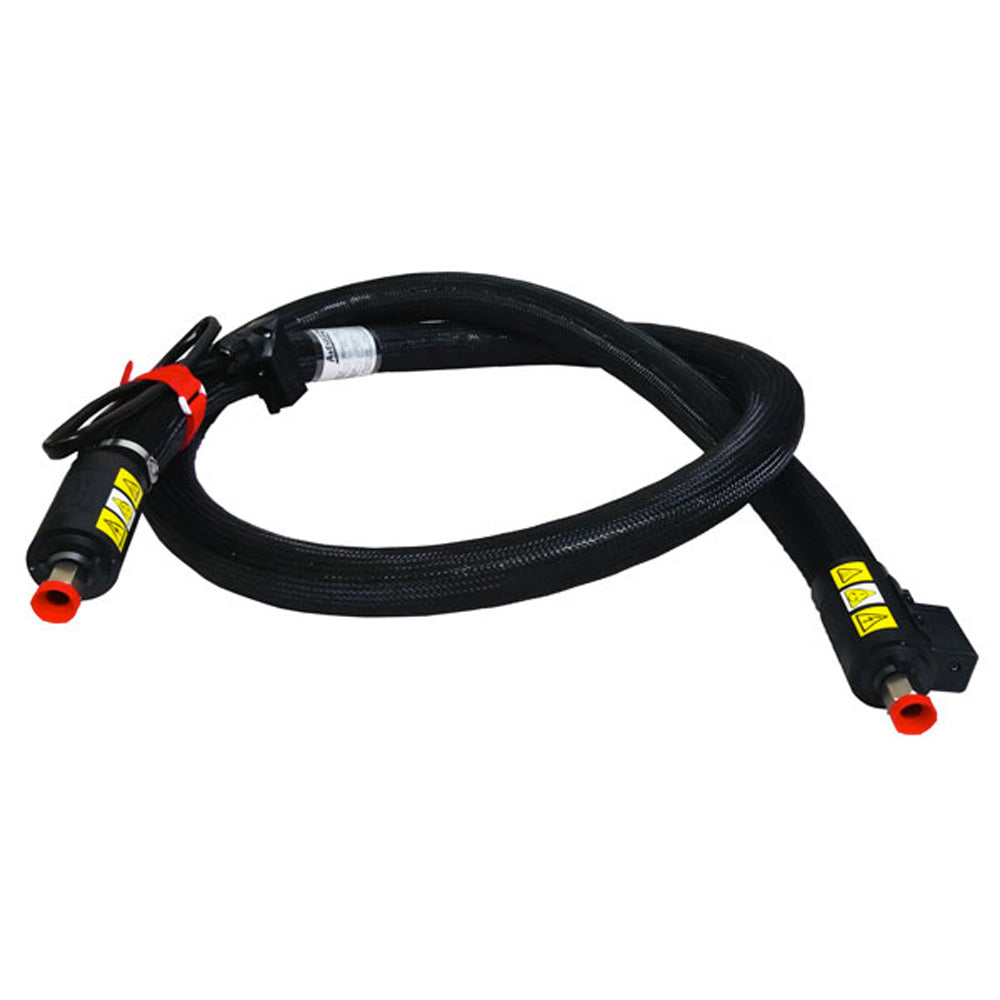

  • Heated Hot Melt Hose (Choose Your Length)
  • Hot Melt Nozzle to Control Bead Size

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank — Specifications

SS10 Premium Bulk Hot Melt Tank Specifications

  • Warmup Time: 30-40 Minutes
  • Melt Rate: 10lbs Per Hour
  • Max Viscosity: 25,000 cps
  • Tank Overtemperature: Thermostat Protected
  • Pump Pressure: 100-600 psi Max
  • Weight: 54 LBs

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank — Resources

240V Bulk Hot Melt Tank Brochures and User Manuals

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank — Component Information

About the SS10 Bulk Hot Melt Tank

The Astro SS10 bulk hot melt tank is a premium bulk hot melt unit usually configured for use with a hose and handgun system. It offers adjustable output and temperature control, a 10lb melt tank and a teflon coated lining virtually eliminating the possibility of char build-up.

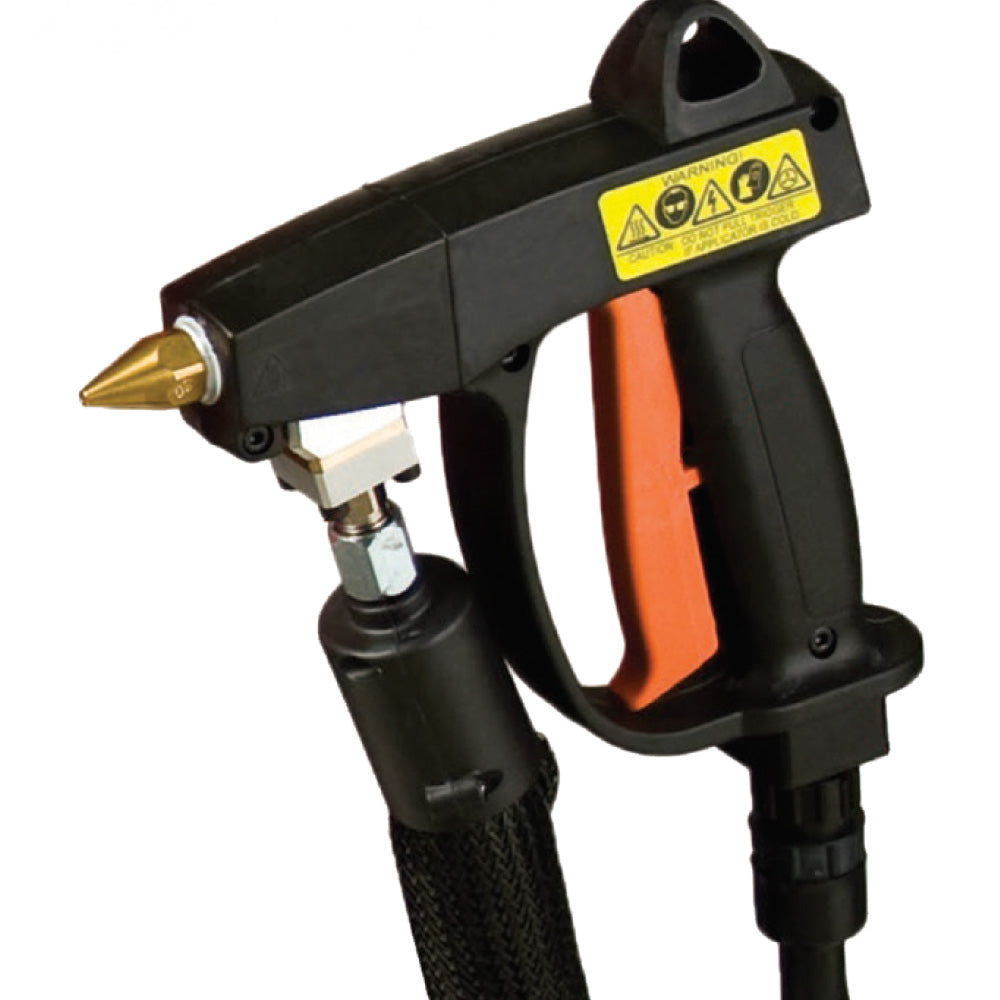

About the DG2 Hot melt Handgun for Bead Dispensing

There are two versions of the hot melt handgun offered with this system, the Axial (or Rotary) swivel and the ball swivel.

The rotary swivel handgun can move in a 360 degree rotation but constrains movement up and down. This gun is good for repetitive line dispensing.

The ball swivel handgun can move in a 360 degree rotation as well as up and down giving it a larger range of motion. This gun is good for more freely controlling the bead dispense.Hot Melt Handgun - explanation of ball swivel vs rotary swivel movement

Why Dispensing.com?

We are the adhesive dispensing experts. Dispensing.com offers the widest range of industrial adhesive and dispensing equipment anywhere all at industry low prices. We offer expert service, on-site installation and everything else you need to make your adhesive dispensing application a success.


Configure Your System

Select components to build your complete dispensing system.

Astro SS10 240V Bulk Hot Melt Tank - 10 LB Reservoir

checkmark
SS10 Hot Melt Tank - 240V

SS10 Hot Melt Tank - 240V

Astro SS10 Premium Bulk Hot Melt Tank - 10 LB Reservoir

Supports 1 or 2 hoses with a melt rate of 10 LBs per hour

Hand Gun Type

checkmark
DG2 Handgun - 240V / Axial Rotation (Rotary Fitting) / Astro/Slautterback RTD

DG2 Handgun - 240V / Axial Rotation (Rotary Fitting) / Astro/Slautterback RTD

Astro Packaging DG2 Hot Melt Hand Gun - Configurable

This rotary swivel gun will move in a 360 rotation on the same plane

checkmark
DG2 Handgun - 240V / Ball Swivel Fitting / Astro/Slautterback RTD

DG2 Handgun - 240V / Ball Swivel Fitting / Astro/Slautterback RTD

Astro Packaging DG2 Hot Melt Hand Gun - Configurable

This ball swivel gun will move in a 360 degree rotation as well as up and down

Hot Melt Hose Type

checkmark
8 Foot DG2 Hose - 120V

8 Foot DG2 Hose - 120V

Astro DG2 Durabraid #6 Hot Melt Hose Without Airline - 240V

checkmark
10 Foot DG2 Hose - 120V

10 Foot DG2 Hose - 120V

Astro DG2 Durabraid #6 Hot Melt Hose Without Airline - 240V

checkmark
12 Foot DG2 Hose - 120V

12 Foot DG2 Hose - 120V

Astro DG2 Durabraid #6 Hot Melt Hose Without Airline - 240V

checkmark
16 Foot DG2 Hose - 120V

16 Foot DG2 Hose - 120V

Astro DG2 Durabraid #6 Hot Melt Hose Without Airline - 240V

Hot Melt Nozzle Type

checkmark
.040 Diameter Nozzle

.040 Diameter Nozzle

Astro DG2 Bead Dispense Hot Melt Nozzles - All Sizes

checkmark
.055 Diameter Nozzle

.055 Diameter Nozzle

Astro DG2 Bead Dispense Hot Melt Nozzles - All Sizes

checkmark
.070 Diameter Nozzle

.070 Diameter Nozzle

Astro DG2 Bead Dispense Hot Melt Nozzles - All Sizes

checkmark
.040 Diameter Extension Nozzle

.040 Diameter Extension Nozzle

Astro DG2 Bead Dispense Hot Melt Nozzles - All Sizes

checkmark
.055 Diameter Extension Nozzle

.055 Diameter Extension Nozzle

Astro DG2 Bead Dispense Hot Melt Nozzles - All Sizes

Your System

Premium 240V Bulk Hot Melt System with Bead Handgun - 10 LB Tank

Components

$   On Sale
$4,615.00
