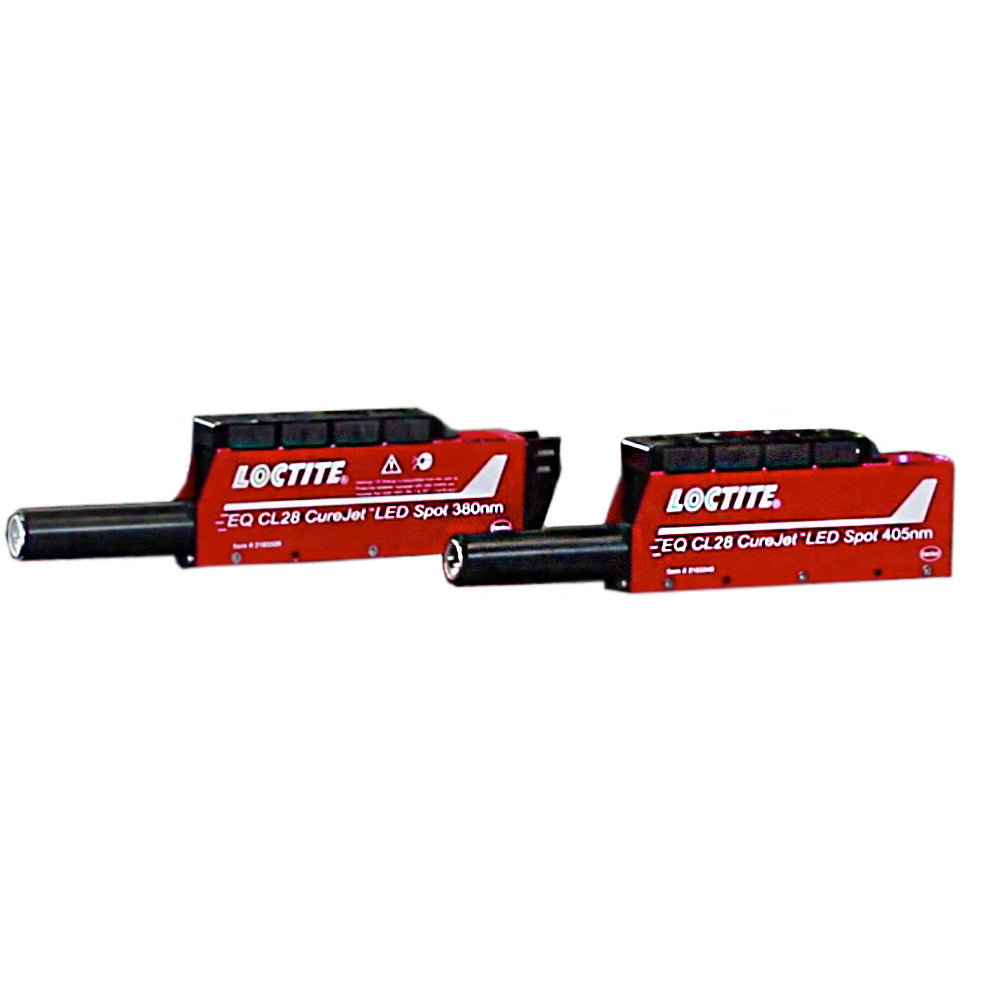

Loctite EQ CL28 CureJET 405 LED Light Source - 405 Nanometer

When to Use the Loctite EQ CL28 Curejet 405nm LED Light Source

Use the Loctite EQ CL28 LED light source for curing UV adhesives, materials and coatings at 405nm wavelengths. This LED light source is used with the complete Loctite Curejet LED light curing system

185-clipboard Created with Sketch. Highlights

  • Brand: Henkel Loctite
  • Type: LED Light Source

magnifier copy Created with Sketch. Properties

  • 405nm Wavelength

SKU: LOCTITE 2183340

$   On Sale
Buying in bulk? Request a volume quote

Loctite EQ CL28 CureJET 405 LED Light Source - 405 Nanometer — More Information

The Loctite® EQ-CL28 CureJetTM LED Spot 405 nm system is Loctite's highest powered system that offers significantly wider cure area and higher curing intensities as compared to our single-point LED devices. This results in providing the ultimate in processing speeds.

The EQ-CL28 CureJetTM LED Spot 405 nm wavelength has been developed for the curing requirements of the adhesive. The curing process begins when the adhesive is placed under the EQ-CL28 CureJetTM LED Spot 405 nm. The two primary variables that control the curing process are the time of exposure and the irradiance of the light. For a given irradiance, the exposure time required to fully cure the adhesive depends primarily on the properties of the adhesive and the optical properties of the substrate.


  • A 100% on-time duty cycle in a continuous or timed operation.
  • Unlike traditional arc lamps, 100% of LED light output is within the usable curing spectrum of Loctite® adhesives.
  • Zero infra-red emissions, reducing part heating (warping) to an absolute minimum.
  • Instant On-Off - no warm-up like traditional UV systems.
  • LED last up to 10 times longer than typical UV bulbs units with negligible output decay during duty life.
  • Controller monitors and adjusts proper power to each of the nine individual LEDs in the LED Light Source.
  • Controller can communicate with an external customer-supplied controller (such as a PLC) to offer 2-way communication for actuation of the LED head and relaying of pertinent information.
  • Stackable with 1" center-to-center spacing.

Loctite EQ CL28 CureJET 405 LED Light Source - 405 Nanometer — Specifications

Single CureJet™ Controller

  • Input Voltage: 85 – 264 VAC; 50 – 60 Hz.
  • Power Consumption: 150 watts
  • Max. Operating Temperature: 90ºF (55ºC)
  • Max Operating Humidity: 85% RH
  • Dimensions: Width: 10 inches o Depth: 9 5/8 inches o Height: 3 7/8 inches •
  • Weight: 8 lbs. CureJet™ Light Sources
  • Spectral Output Range EQ-CL28 CureJet™ LED Spot 380 nm: primary peak 380 nm.
  • Dimensions: Width: 1 inch o Depth: 10 1/8 inches o Height: 2 1/2 inches
  • Weight: 1 lb.
