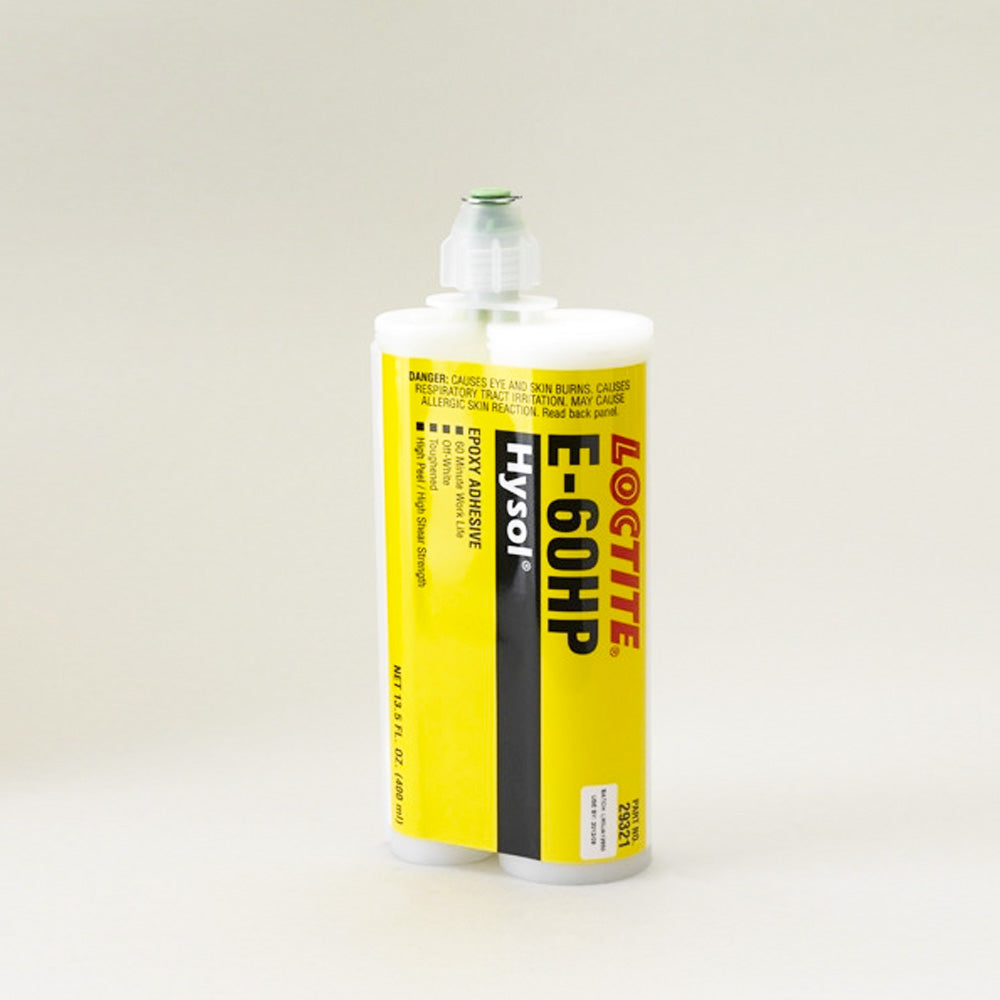

Loctite E-60HP Slow Set Toughened Epoxy Adhesive
When to Use Loctite E-60HP Toughened Epoxy Adhesive
Loctite E-60HP is a high performance epoxy adhesive with a longer 60 minute work life. This toughened epoxy offers a high peel and shear strength and cures to an off-white color. Loctite E-60HP is often used in general bonding applications that require maximum strength and chemical resistance. This epoxy also works great as an electrical insulator.
LOCTITE® E-60HP Overview
Loctite E-60HP is a toughened, medium-viscosity, industrial grade epoxy adhesive with extended work life. Once mixed, the two-component epoxy cures at room temperature to form a tough, off-white, bond line which provides high peel resistance and high shear strengths. The fully cured epoxy is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator.
Common Applications
This high performance epoxy provides excellent bond strengths to a wide variety of plastics and metals. Ideal for general purpose industrial applications requiring extended work life for adjusting parts during assembly.
Benefits
- Provides excellent bond strengths
- Bonds a wide variety of plastics and metals
- Ideal for general purpose industrial applications
- Provides high peel resistance and high shear strengths
- Excellent electrical insulator
- Resistant to a wide range of chemicals and solvents
Loctite E-60HP Slow Set Toughened Epoxy Adhesive — Specifications
| Product Type | Structural Adhesives, Adhesives |
|---|---|
| Color | White: Off White |
| Key Characteristics | Mix: Easy Mix, Performance: High Performance, Peel Strength: High Peel Strength, Shear Strength: High Shear Strength, Strength: High Strength, Toughened, Work Life: Short Work Life |
| Number of Components | 2 Part |
| Substrates | Ceramic, Metal, Plastic |
| Technology | Epoxy |
| Shear Strength, Steel (psi) | 3270 |
| Fixture Time | 2 hr. |
| Work Life Time | 20 min. |
| Temperature Resistance (°C) | 121 |
| Temperature Resistance (°F) | 250 |
| Mix Ratio | 2:1 |
| Full Cure Temperature (°F) | 77 |
| Full Cure Time | 24 hr. |
| Full Cure Temperature (°C) | 25 |
| Viscosity Temperature (°F) | 77 |
| Viscosity (Brookfield mPa.s (cP)) | 30000 |
| Viscosity Temperature (°C) | 25 |
Loctite E-60HP Slow Set Toughened Epoxy Adhesive — Resources
Technical Data Sheet TDS
