• Loctite E-20HP Fast Set Toughened Epoxy Adhesive

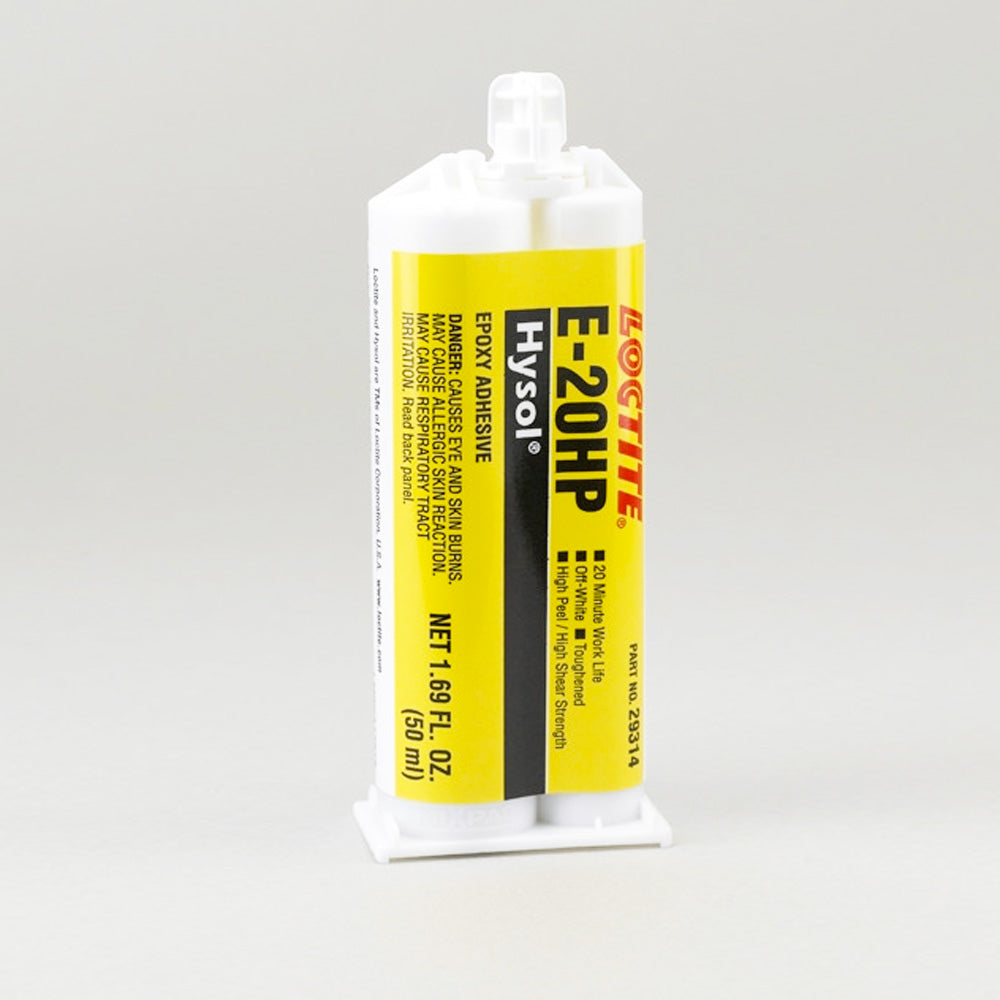

Loctite E-20HP Fast Set Toughened Epoxy Adhesive

When to Use Loctite E-20HP Toughened Epoxy Adhesive

Loctite E-20HP is a high performance epoxy adhesive with a shorter 20 minute work life. This toughened epoxy offers a high peel and shear strength and cures to an off-white color. Loctite E-20HP is often used in bonding concrete, limestone or product assembly applications.

185-clipboard Created with Sketch. Highlights

  • Brand: Henkel Loctite
  • Type: Epoxy

link Created with Sketch. Bonds to

  • Ceramic
  • Concrete
  • General

magnifier copy Created with Sketch. Properties

  • Chemical Resistant
  • Clear
  • Set Time: Medium
  • Toughened

SKU: LOCTITE 237107

$190.00   On Sale
$153.00
Buying in bulk? Request a volume quote

LOCTITE® E-20HP Overview

LOCTITE® E-20HP is a toughened, medium-viscosity, industrial grade epoxy adhesive with a medium work life. Once mixed, the two-component epoxy cures at room temperature to form a tough, off-white, bondline that provides high peel resistance and high shear strengths. The fully cured epoxy is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator.

Common Applications

The high performance epoxy provides excellent bond strengths to a wide variety of plastics and metals. Ideal for general purpose industrial assemblies. Used as adhesive for bonding dry concrete or limestone for architectural applications.

Benefits

  • Forms a tough bond line that provides high peel resistance and high shear strengths
  • Provides excellent bond strengths to a wide variety of plastics and metals
  • Used as adhesive for bonding dry concrete or limestone for architectural applications
  • Ideal for general purpose industrial assemblies

Loctite E-20HP Fast Set Toughened Epoxy Adhesive — Specifications

Product Type Structural Adhesives, Adhesives
Color White: Off White
Key Characteristics Mix: Easy Mix, Performance: High Performance, Peel Strength: High Peel Strength, Shear Strength: High Shear Strength, Strength: High Strength, Toughened, Work Life: Short Work Life
Number of Components 2 Part
Substrates Ceramic, Metal, Plastic
Technology Epoxy
Shear Strength, Steel (psi) 3270
Fixture Time 2 hr.
Work Life Time 20 min.
Temperature Resistance (°C) 121
Temperature Resistance (°F) 250
Mix Ratio 2:1
Full Cure Temperature (°F) 77
Full Cure Time 24 hr.
Full Cure Temperature (°C) 25
Viscosity Temperature (°F) 77
Viscosity (Brookfield mPa.s (cP)) 30000
Viscosity Temperature (°C) 25

Loctite E-20HP Fast Set Toughened Epoxy Adhesive — Resources

Technical Data Sheet TDS
