• Loctite E-05CL Clear 3-Minute Low Odor Epoxy Adhesives

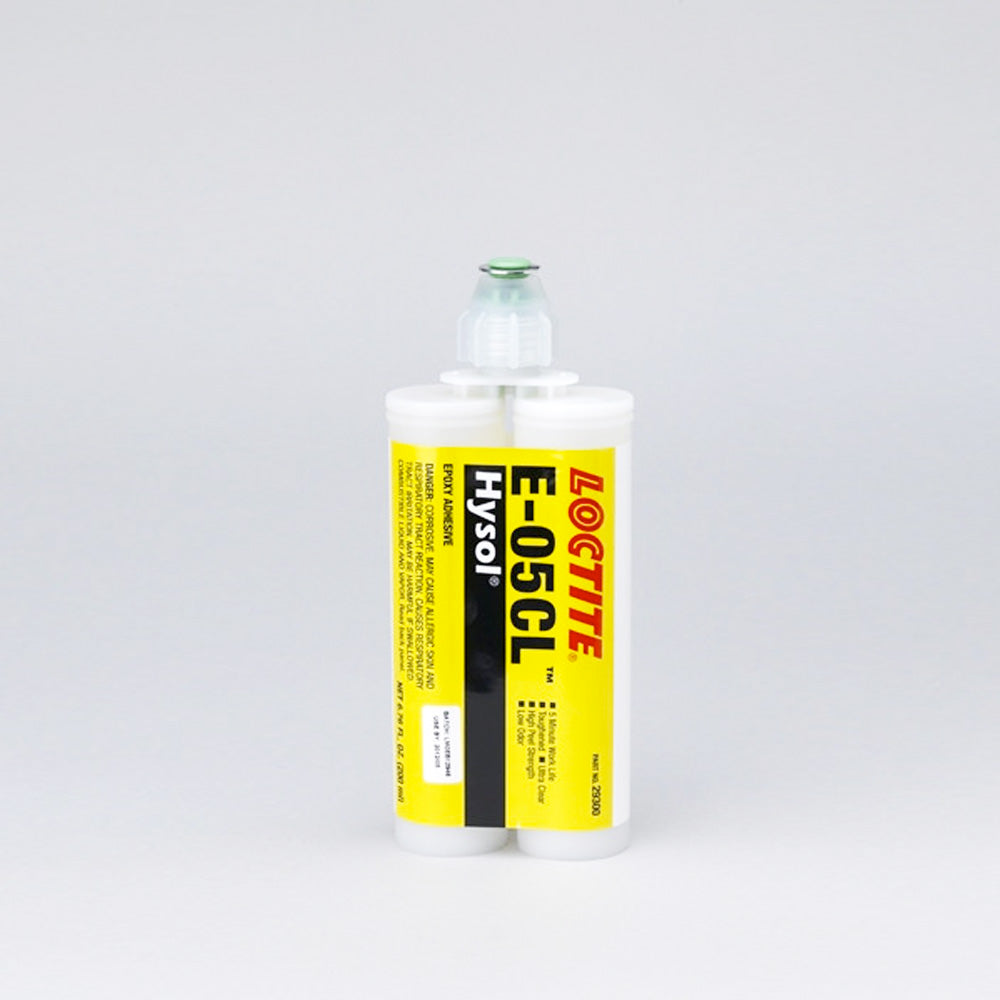

Loctite E-05CL Clear 3-Minute Low Odor Epoxy Adhesives

When to Use Loctite E-05CL Epoxy Adhesives

Loctite E-05CL is a clear, flexible epoxy adhesive with a 3-minute open time with very low odor. This epoxy has excellent peel and chemical resistance and is used in many general bonding applications. The low odor element makes it perfect for poorly ventilated areas. Loctite E-05CL is often used in electrical insulating and product assembly applications, especially those that require an ultra clear cure.

185-clipboard Created with Sketch. Highlights

  • Brand: Henkel Loctite
  • Type: Epoxy

link Created with Sketch. Bonds to

  • General
  • Metal
  • Plastic

magnifier copy Created with Sketch. Properties

  • Chemical Resistant
  • Clear
  • Set Time: Fast

SKU: LOCTITE 237099

$205.00   On Sale
$180.00
Buying in bulk? Request a volume quote

Loctite E-05CL Overview

LOCTITE® EA E-05CL is a fast-setting, toughened, medium-viscosity, industrial grade epoxy adhesive. Once mixed, the two-component epoxy cures at room temperature with low shrinkage and forms an ultra-clear bond line with excellent peel resistance. When fully cured, the epoxy is resistant to a wide range of chemicals and solvents, and acts as an excellent electrical insulator.

Common Applications

Ideal for bonding plastic, metal, glass, wood, ceramic, rubber, and masonry materials where flexibility is needed. Designed for a variety of applications such as flex circuits, cable boots, and staking fillet bonds. Well suited for applications that require an ultra-clear bond line.

Loctite E-05CL Clear 3-Minute Low Odor Epoxy Adhesives — Specifications

Product Type Structural Adhesives, Adhesives
Color Clear
Key Characteristics Cure Speed: Fast Cure, Flexible, Odor: Low Odor, Peel Strength: High Peel Strength
Number of Components 2 Part
Substrates Ceramic, Metal, Plastic
Technology Epoxy
Shear Strength, Steel (psi) 1430
Fixture Time 30 min.
Work Life Time 3 min.
Temperature Resistance (°C) 80
Temperature Resistance (°F) 180
Mix Ratio 1:1
Full Cure Temperature (°F) 77
Full Cure Time 24 hr.
Full Cure Temperature (°C) 25
Viscosity Temperature (°F) 77
Viscosity (Brookfield mPa.s (cP)) 2500
Viscosity Temperature (°C) 25

Loctite E-05CL Clear 3-Minute Low Odor Epoxy Adhesives — Resources

Technical Data Sheet TDS
