• Honle UVACUBE 400 UV Cure and Sunlight Simulation Chamber

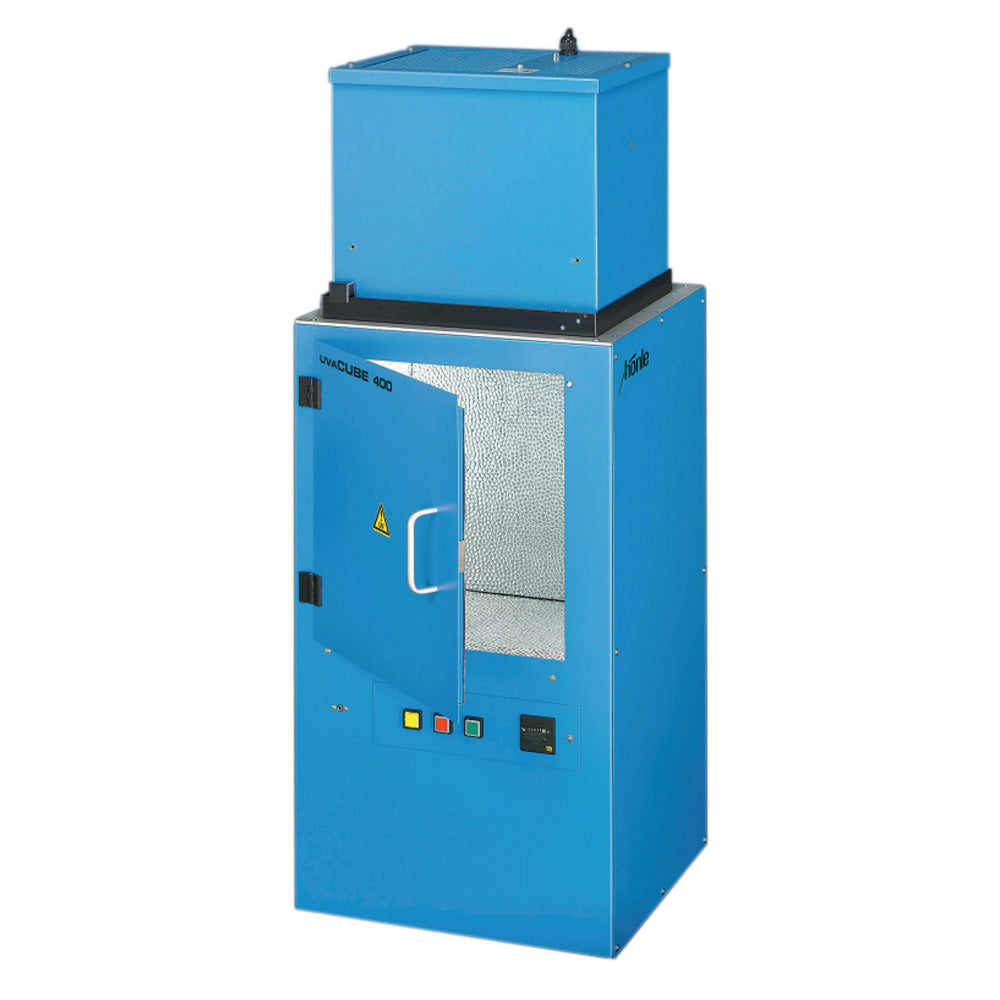

Honle UVACUBE 400 UV Cure and Sunlight Simulation Chamber

When to Use the Honle UVACUBE 400 UV Chamber

The Honle UVACUBE 400 is a medium sized UV curing chamber that can be used for product assembly, lab work and sunlight simulation tests. The UVACUBE 400 offers a 450mm X 400mm X 300mm chamber capacity (approx 18" X 16" X 12") and is available with a range of lamp and filter options.

Common Applications

  • Curing UV adhesives, inks and coatings
  • Hand product assembly
  • Research and development applications
  • Laboratory use and UV testing simulation

SKU: HONLE LED-CUBE-100-IC-460

More Information on the Honle UVACUBE 400 UV Curing Chamber

The Honle UVACUBE 400 is an economical UV curing chamber that is great for small to medium sized parts. It offers a range of lamp and filter combinations that can be used to meet many different application needs. Use the Honle UVACUBE 400 for product assembly, manufacturing, R&D and laboratory applications.

Honle UVACUBE 400 Capacity

The Honle UVACUBE 400 has a working capacity of around 450 x 400 x 300 mm (HxWxD) allowing for a wide range of substrates to be accommodated. Optimized lamp reflectors and interior provide uniform irradiation (approx. +/- 10 % on bottom of chamber).

Honle UVACUBE 400 UV Chamber Specifications

  • Supply voltage: 230 V / 50 Hz
  • Power input: 400 W
  • Irradiation area: max. 400 x 300 mm
  • Dimensions (LxWxD)*: 834 x 466 x 402 mm

Honle UVACUBE 400 Brochures and Data Sheets

Data Sheet
